Compac 100 Driving Lamp Kit
Compac 100 Driving Lamp Kit
Part No.
71850
12 Volt 55W 100mm diameter Compac 100 is a small compact yet powerful 100mm diameter
unit that fits into many modern vehicles body mouldings both for original equipment
and aftermarket fitment. Free form technology means the lens has no optic pattern
and utilises the reflector to maximise focus and control the lamp output.
Share this page
Technical Information
| INPUT VOLTAGE RANGE | 12V |
|---|---|
| POWER | 55W |
| SIZE | 100mm |
| ADR | 46/00 25152 |

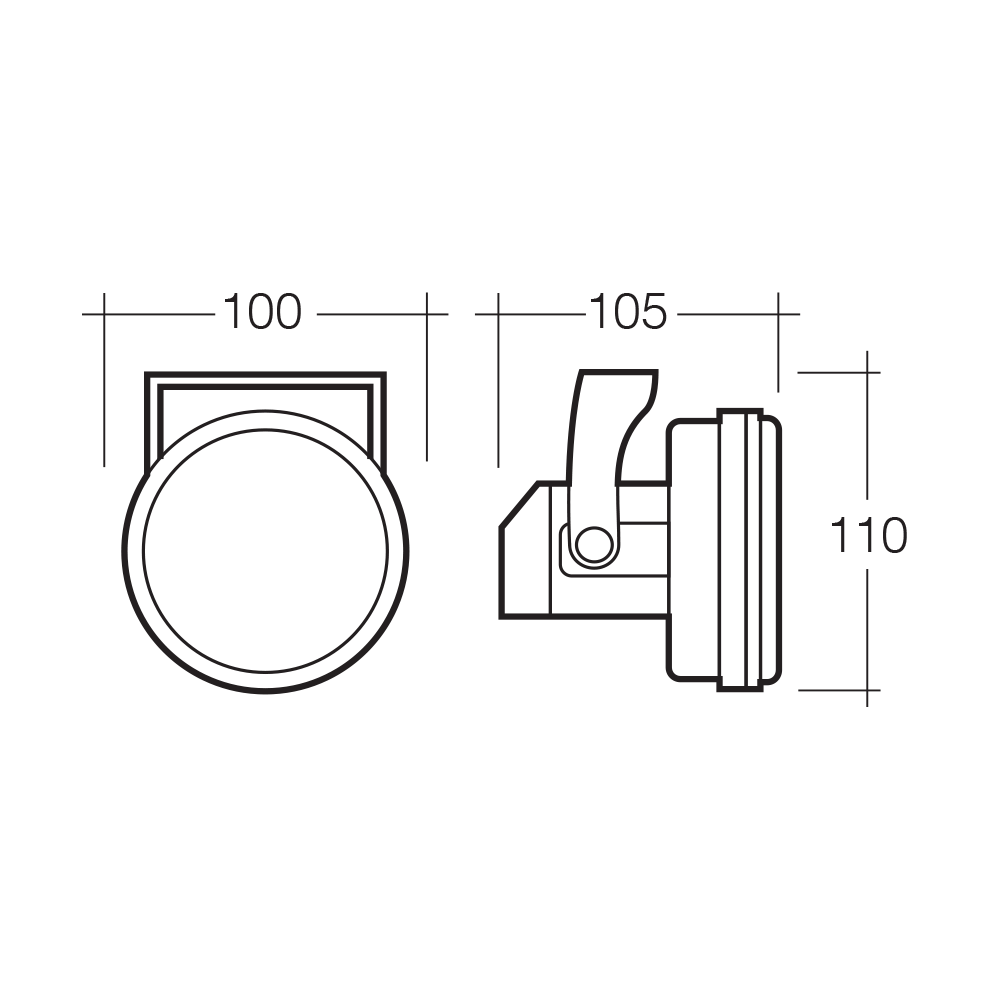

Drawings

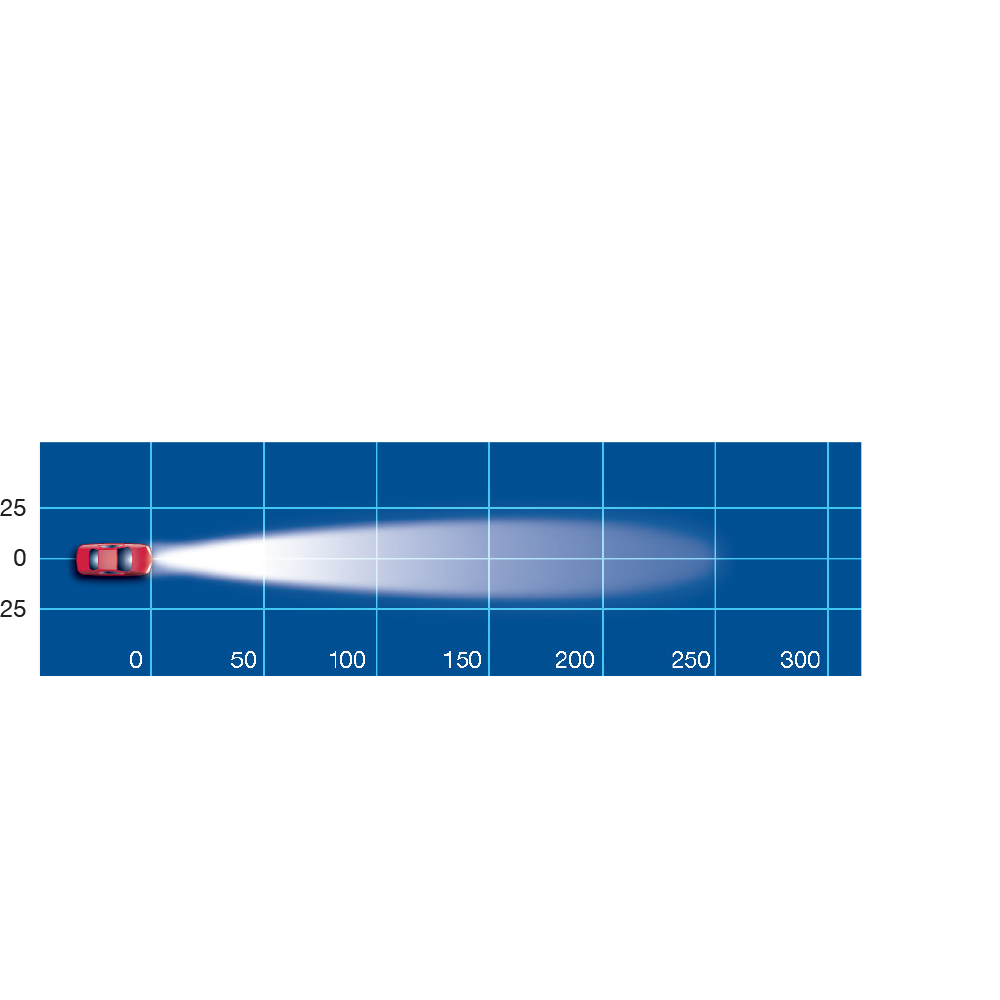

Beam Pattern
Product Comprises of
| 1. | 2 x driving lamps (P/No. 71845) |
|---|---|
| 2. | 2 x fitted 12V H3 55W globes (P/No. 48321) |
| 3. | 1 x relay (P/No. 72386) |
| 4. | 1 x toggle switch (P/No. 60044) |
| 5. | 1 x terminal and wiring pack |
| 6. | 1 x mounting hardware |
