Switch Wiring Guide

O.E Style Switch Wiring Diagram



Check if you vehicle is Negative Switched:

  1. Ensure your headlights are in the off position
  2. Place the positive pole probe of your multi-meter on the positive cable of your headlights and connect the negative probe to the chassis of your vehicle
  3. If you get a voltage reading it is a negative switched vehicle
  4. Refer to the switch wiring diagrams below for 'Negative Switched Vehicles'

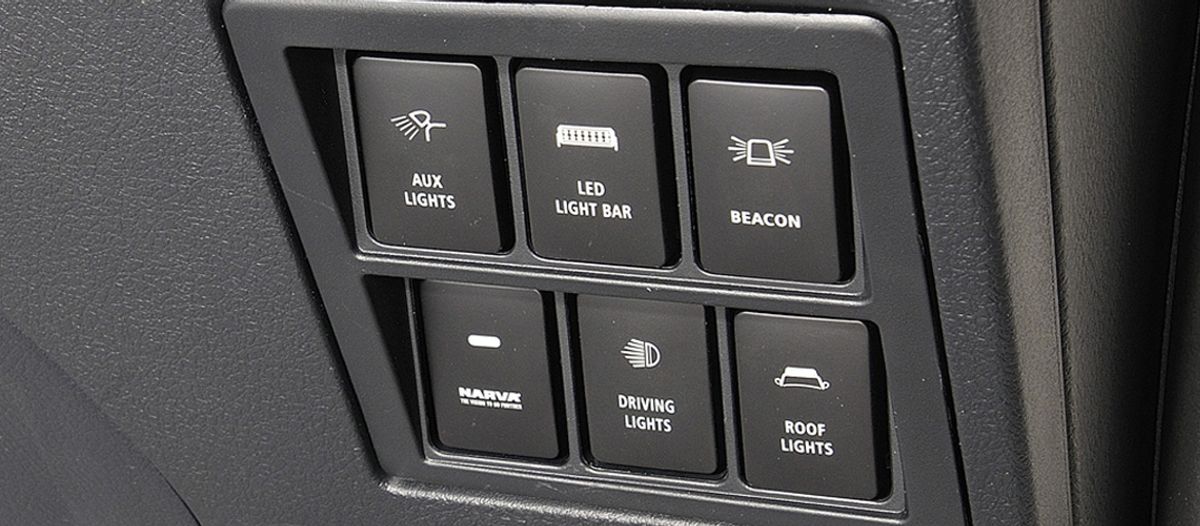

O.E switches in-situ


Positive Switch Wiring Diagram

Click on your vehicle type

Positive switch wiring diagram for:
Toyota, Holden, Isuzu and Mitsubishi

Switch wiring diagram for positive vehicles (refer to vehicle type)

Positive switch wiring diagram for Nissan models:
R51 Pathfinder 2005-2012, DU40 Navara 2008-2014, GU4-7 Patrol 2000-2012, Y61 Patrol 2013-On, Y62 Patrol 2013-On, T31 X-Trail 2007-2013

Switch wiring diagram for positive Nissan vehicle (refer to Nissan model)

Positive switch wiring diagram for Nissan models:
DU40 Navara, R52 Pathfinder, NP300 Navara and T32 X-Trail

Switch wiring diagram for positive switched Nissan vehicles (refer to Nissan model)



Negative Switch Wiring Diagram

Click on your vehicle type

Negative switch wiring diagram for:
Toyota, Holden, Isuzu and Mitsubishi

Switch wiring diagram for negative switched vehicles (refer to vehicle type)

Positive switch wiring diagram for Nissan Models:
R51 Pathfinder 2005-2012, DU40 Navara 2008-2014, GU4-7 Patrol 2000-2012, Y61 Patrol 2013-On, Y62 Patrol 2013-On, T31 X-Trail 2007-2013

Switch wiring diagram for negative Nissan vehicles (refer to Nissan model)

Negative switch wiring diagram for Nissane models:
DU40 Navara, R52 Pathfinder, NP300 Navara and T32 X-Trail

Switch wiring diagram for negative switched Nissan vehicles (refer to Nissan model)
