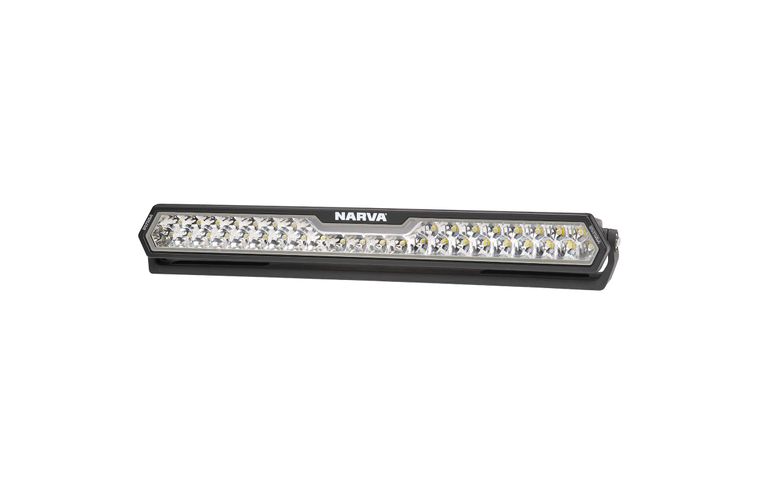

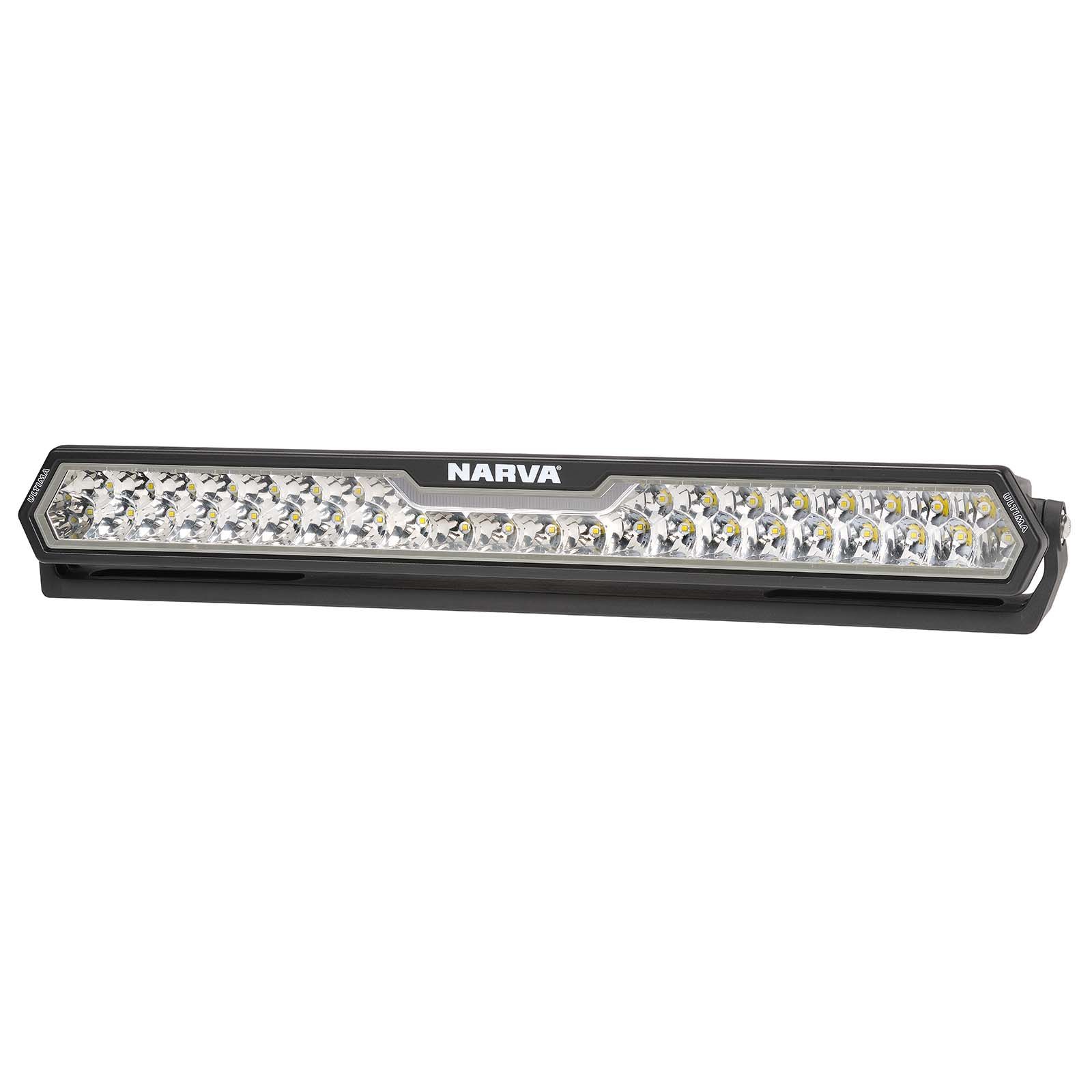

24 Inch Ultima Light Bar Ultra Wide Flood Beam Pattern
Part No. 71725BK
RRP $990.00 AUD Inc GST
RRP $990.00 AUD Inc GST
The combination of Ultima light bars’ precision optics, unique construction and high-powered LEDs
produce a truly market leading beam pattern. Outstanding performance in two sizes (8 inch and 24
inch), with two beam pattern options (long and wide hybrid beam, ultra wide flood beam).
The combination of Ultima light bars’ precision optics, unique construction and high-powered LEDs
produce a truly market leading beam pattern. Outstanding performance in two sizes (8 inch and 24
inch), with two beam pattern options (long and wide hybrid beam, ultra wide flood beam).
Features
Market Leading Beam Performance
Best combination between distance and width with 95M of width at 500m.
The Toughest on the Market
Increased resistance to vibration passing Heavy Vehicle vibration standards. UV resistant, hard coated polycarbonate lens and lens protector ensures no yellowing lens.
Made for Australia
Designed, tested and engineered in Australia to suit our unique driving conditions.
Unprecedented 10 Year Warranty
The market leading construction means that we can offer a 10-year warranty.
Customisable Look
Offering a variety of finishes and trim colour options so you can customise your look.Specifications
Technical Information
| INPUT VOLTAGE RANGE | 10-33V |
|---|---|
| CURRENT DRAW | 24A/30A (boost) |
| POWER | 325W/390W (boost) |
| LEDs | 38 |
| LUMENS | 16500lm/18100lm (boost) |
| OPERATING TEMPERATURE | -40°C to 60°C |
| COLOUR TEMPERATURE | 5700K ±5% |
| WEIGHT | 2.8kg ±10% |
| OTHER | Beam width: 95m |
Dimensions
Downloads
Get the latest information
24 Inch Ultima Light Bar Ultra Wide Flood Beam Pattern
Download Instructions Download Instructions Download BrochureMultimedia
