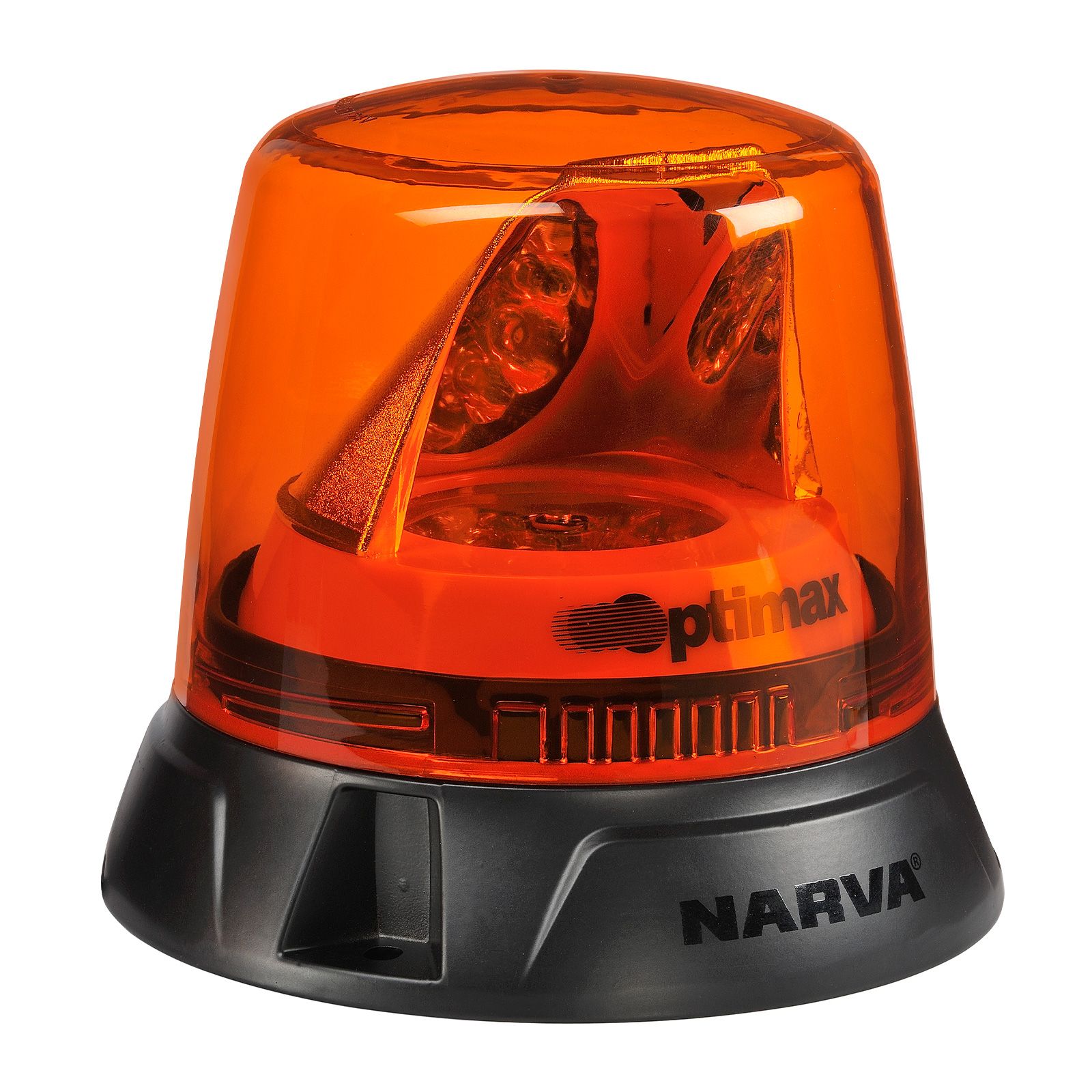

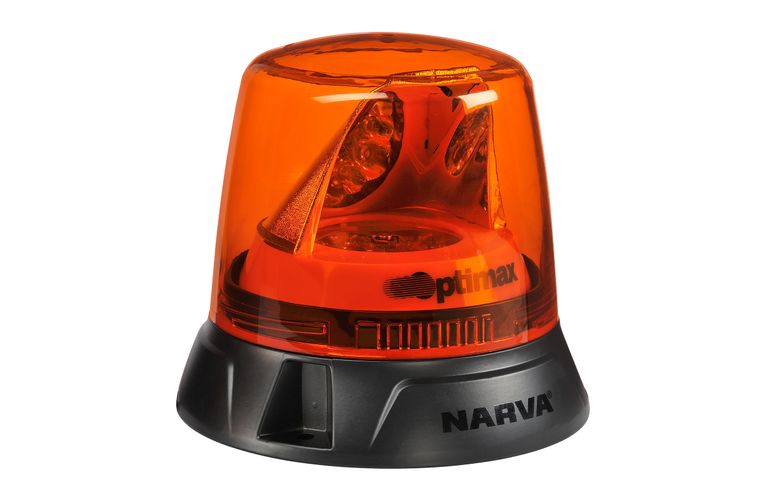

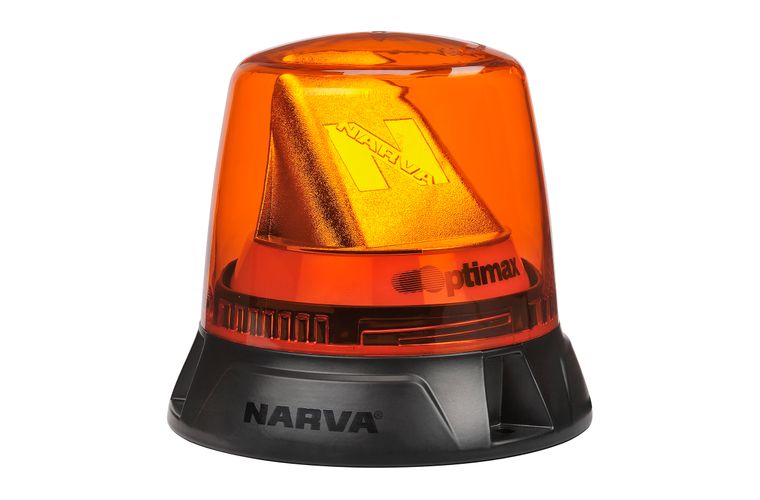

10-33V Optimax LED Rotating Beacon Flange (Amber)
Part No. 85660A
Optimax LED beacons are engineered to produce smooth, highly visible rotating patterns suitable for
all civil applications. This has been achieved by a proprietary reflector optic to spread the light
combined with 6 x 5 watt high power LEDs. This output ensures Optimax LED Beacons meet Heavy Vehicle
Regulation 2013 No.77. This extreme output also makes the Optimax beacon range as visible even as
traditional halogen beacons with 55W (or 70W) globes with a fraction of the current draw.
Optimax LED beacons are engineered to produce smooth, highly visible rotating patterns suitable for
all civil applications. This has been achieved by a proprietary reflector optic to spread the light
combined with 6 x 5 watt high power LEDs. This output ensures Optimax LED Beacons meet Heavy Vehicle
Regulation 2013 No.77. This extreme output also makes the Optimax beacon range as visible even as
traditional halogen beacons with 55W (or 70W) globes with a fraction of the current draw.
Features
Specifications
Technical Information
INPUT VOLTAGE RANGE | 10-33V |
---|---|
CURRENT DRAW | 1A at 12V |
LEDs | 6 x 5 watt high power LEDs |
IP RATING | IP67 |
OPERATING TEMPERATURE | -30° to 60° |
SIZE | 139mm (height) x 154mm (diameter) |
WEIGHT | 330g |
BASE TYPE | Flange |
ECE | 10R-06.22895 (R10) |
OTHER | SAE J845 Class 1, W3-1 |
OTHER | CISPR Class 3 |
Dimensions
