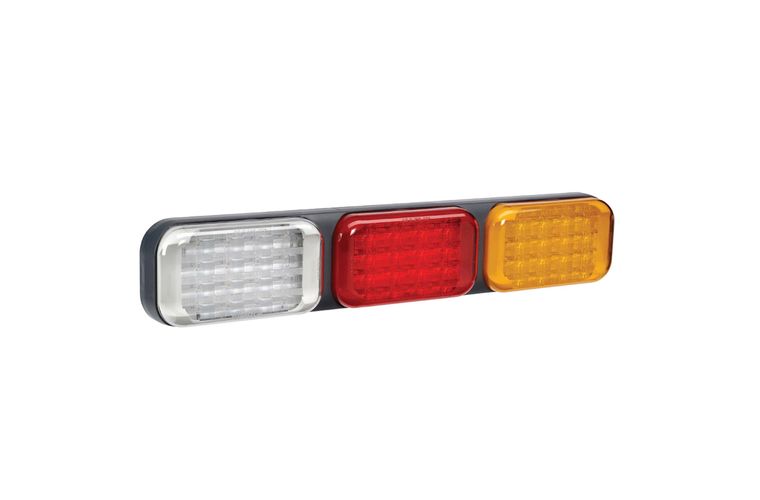

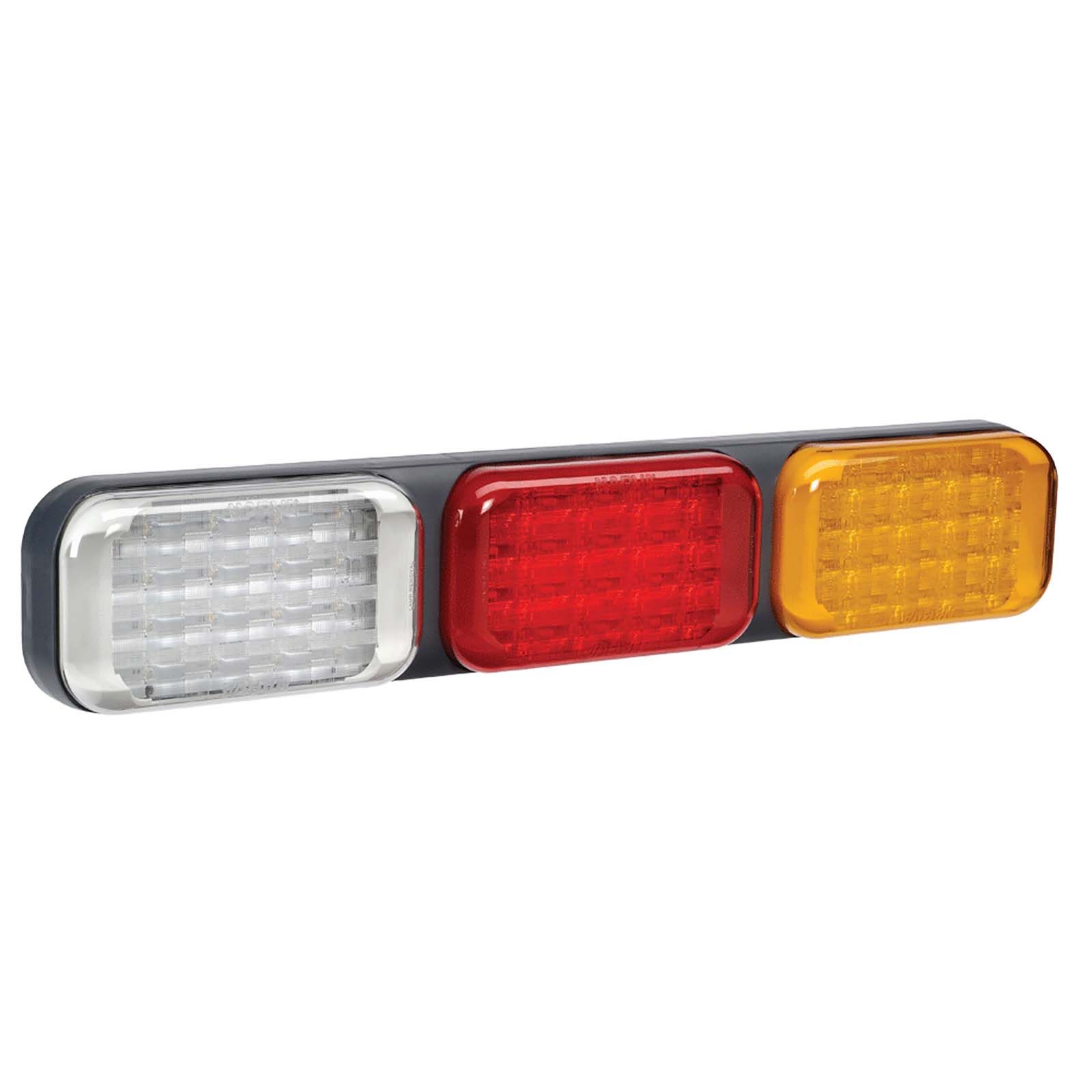

9-33V MODEL 41 LED REVERSE STOP/TAIL and REAR DIRECTION INDICATOR LAMP
Part No. 94178H
RRP $530.25 AUD Inc GST
RRP $530.25 AUD Inc GST
38
FOR HORIZONTAL MOUNTING
Designed around the popular Model 42 range of rear combination lamps, the Model 41 family boasts all the same features as their larger counterpart but in a smaller more compact package
Designed around the popular Model 42 range of rear combination lamps, the Model 41 family boasts all the same features as their larger counterpart but in a smaller more compact package
38
FOR HORIZONTAL MOUNTING
Designed around the popular Model 42 range of rear combination lamps, the Model 41 family boasts all the same features as their larger counterpart but in a smaller more compact package
Designed around the popular Model 42 range of rear combination lamps, the Model 41 family boasts all the same features as their larger counterpart but in a smaller more compact package
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33 Volt |
|---|---|
| CURRENT DRAW | Indicator: 0.42A Stop: 0.42A Tail: 0.09A, Reverse: 0.34A |
| IP RATING | IP66 and IP67 |
| SIZE | 544 x 100mm |
| CANDELA RATING | 71 |
| ADR | 1/00 AR-E9-00.1135, 6/00 2a-E9-01.1625 (cat 2a), 49/00 R1-S1-E9-02.6256 |
| OTHER | 49/00 (2) R1-S1-E9-02.6304 |
| COMPRISES | 94145; 94147; 94151H; 94193; |
Dimensions
