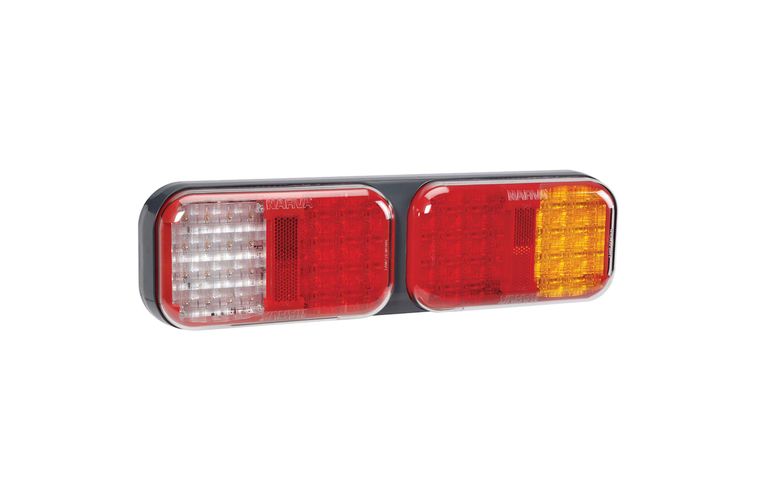

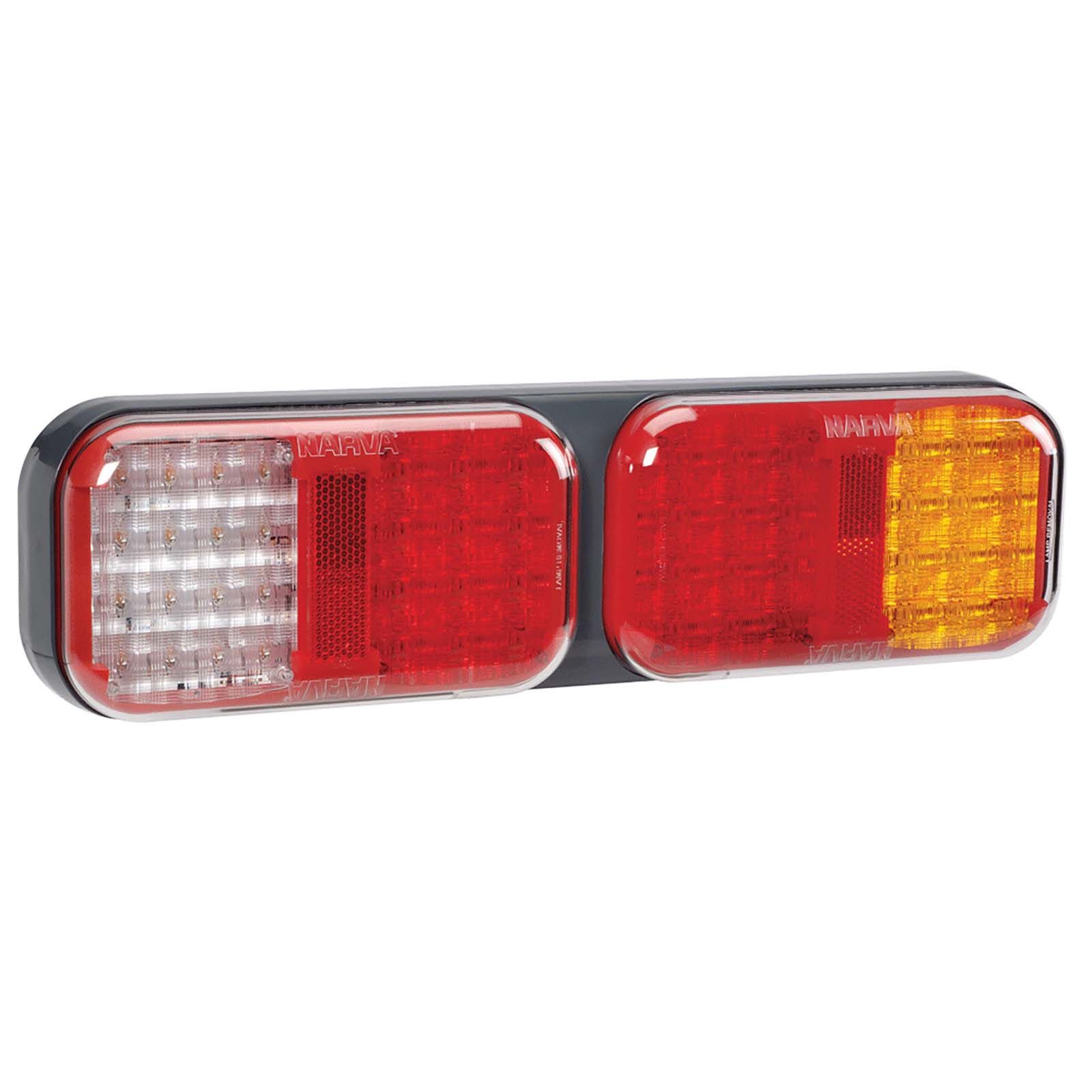

9-33 VOLT MODEL 41 LED REAR TWIN STOP/TAIL DIRECTION INDICATOR AND REVERSE LAMP
Part No. 94162BL
RRP $430.50 AUD Inc GST
RRP $430.50 AUD Inc GST
16
Designed around the popular Model 42 range of rear combination lamps, the Model 41
family boasts all the same features as their larger counterpart but in a smaller more
compact package
16
Designed around the popular Model 42 range of rear combination lamps, the Model 41
family boasts all the same features as their larger counterpart but in a smaller more
compact package
Specifications
Technical Information
INPUT VOLTAGE RANGE | 9-33 Volt |
---|---|
CURRENT DRAW | Indicator: 0.42A Stop: 0.42A Tail: 0.09A, Reverse: 0.34A |
IP RATING | IP66 and IP67 |
SIZE | 362 x 100mm |
CANDELA RATING | 70 |
ADR | 1/00 AR-E9-00.6304, 6/00 2a-E9-01.6255 (cat 2a), 47/00 1A-E9-02.1446, |
OTHER | 49/00 (1) R1-S1-E9-02.6255 49/00 (2) R1-S1-E9-02.6304 |
COMPRISES | 94141; 94154; 94192; |
