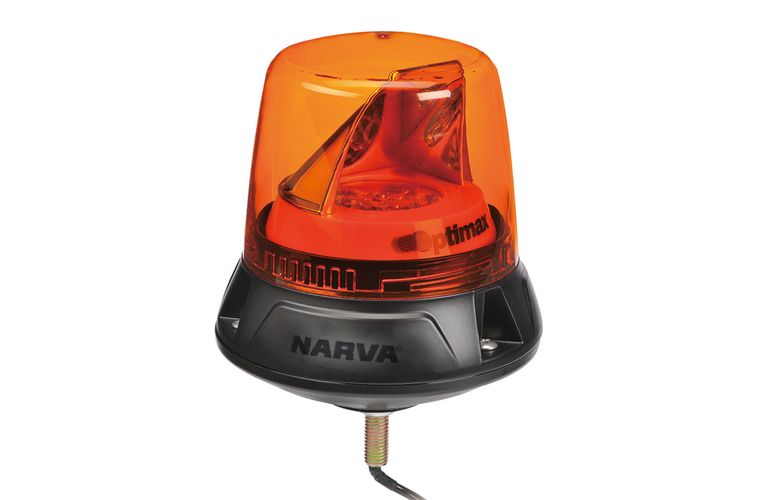

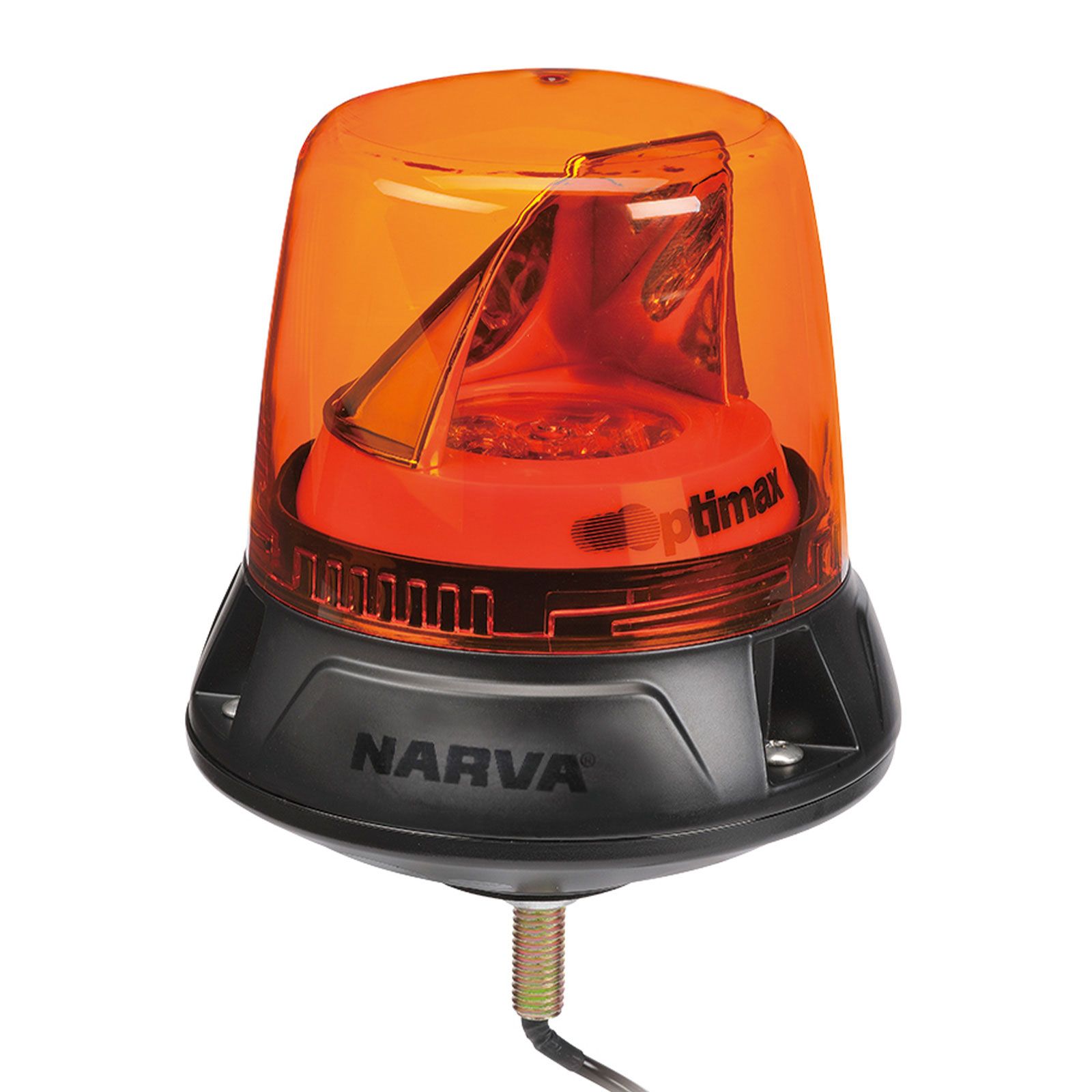

Narva | 10-33V Optimax LED Rotating Beacon Single Bolt Mount (Amber)

10-33V Optimax LED Rotating Beacon Single Bolt Mount (Amber)

Part No. 85662A
Optimax LED beacons are engineered to produce smooth, highly visible rotating patterns suitable for all civil applications. This has been achieved by a proprietary reflector optic to spread the light combined with 6 x 5 watt high power LEDs. This output ensures Optimax LED Beacons meet Heavy Vehicle Regulation 2013 No.77. This extreme output also makes the Optimax beacon range as visible even as traditional halogen beacons with 55W (or 70W) globes with a fraction of the current draw.
Where to Buy
Optimax LED beacons are engineered to produce smooth, highly visible rotating patterns suitable for all civil applications. This has been achieved by a proprietary reflector optic to spread the light combined with 6 x 5 watt high power LEDs. This output ensures Optimax LED Beacons meet Heavy Vehicle Regulation 2013 No.77. This extreme output also makes the Optimax beacon range as visible even as traditional halogen beacons with 55W (or 70W) globes with a fraction of the current draw.

Features

Longer lasting

LED technology ensures no blown globes due to continued use

More reliable

Vibration resistant stepper motor & over voltage protection

More durable

Diecast aluminium base, virtually unbreakable lens & rated to IP67.

More visible

6 x 5W (30W) LED Output

Multiple applications

5 mounting options and Australia's first dual-colour LED beacon

Specifications

Technical Information
INPUT VOLTAGE RANGE10-33V
CURRENT DRAW1A at 12V
LEDs6 x 5 watt high power LEDs
IP RATINGIP67
OPERATING TEMPERATURE-30° to 60°
SIZE170mm (height) x 154mm (diameter)
WEIGHT330g
BASE TYPESingle bolt mount
ECE10R-06.22895 (R10)
OTHERSAE J845 Class 1, W3-1
OTHERCISPR Class 3

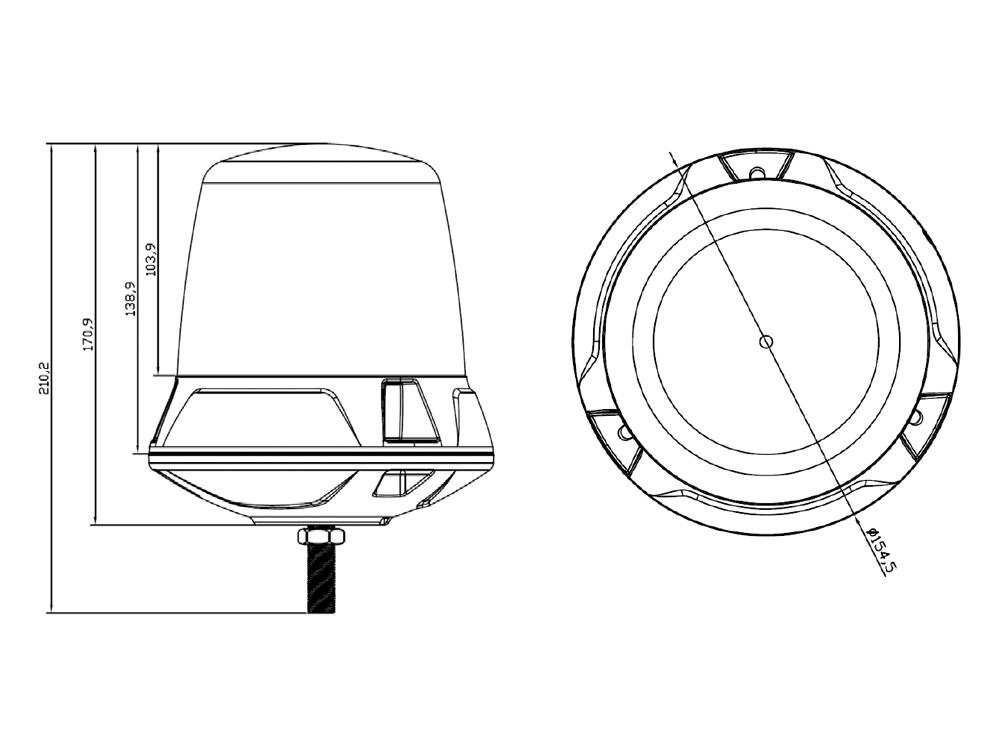

Dimensions

Downloads

Get the latest information

10-33V Optimax LED Rotating Beacon Single Bolt Mount (Amber)

Download Brochure Download Spec Sheet
