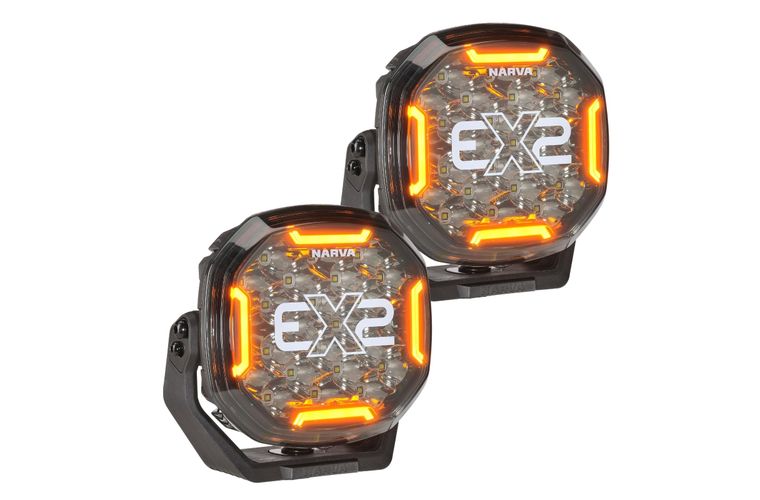

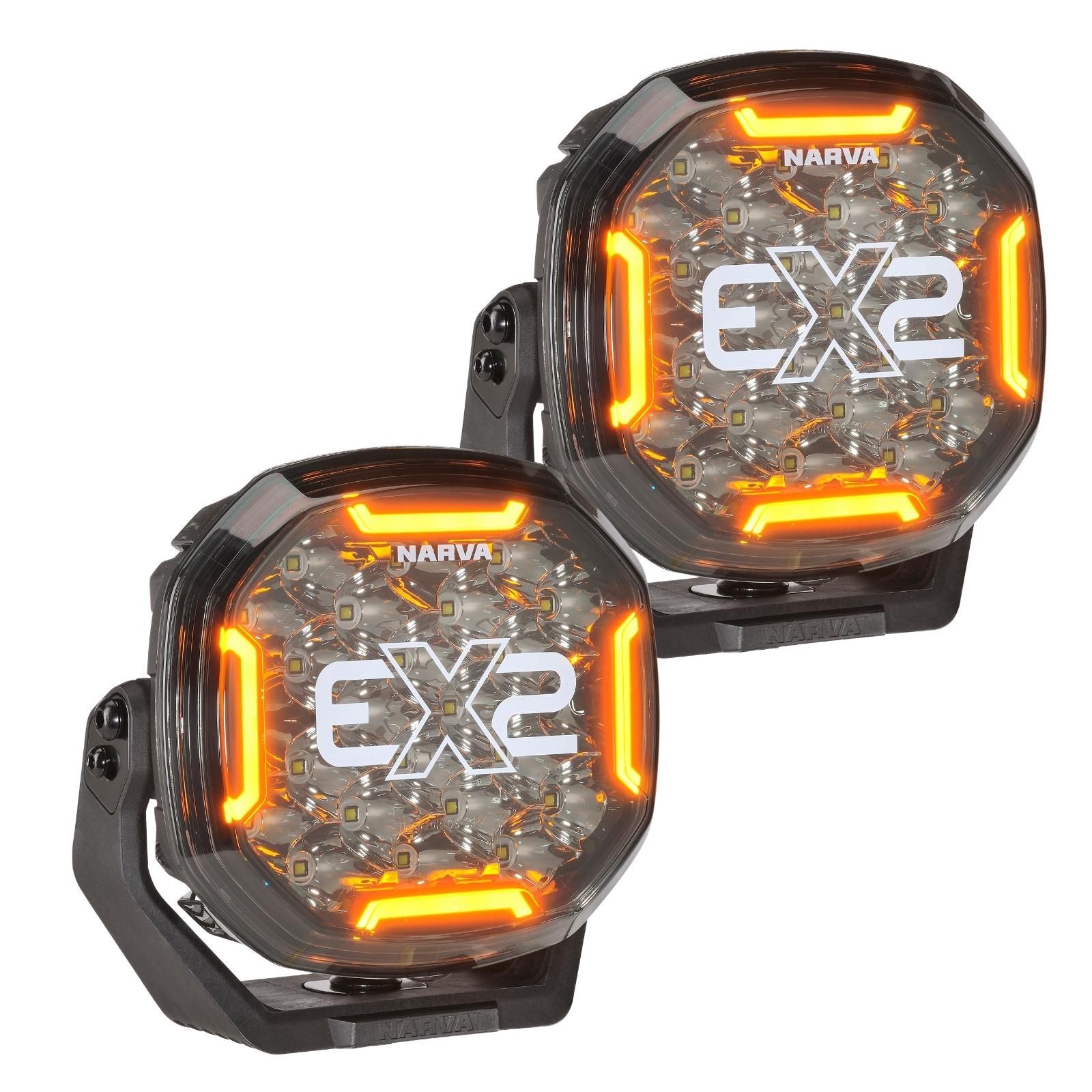

12/24V 7" EX2 Blackout Driving Light (Pair)
Part No. 72175
RRP $649.00 AUD Inc GST
RRP $649.00 AUD Inc GST
High-performance 7" LED driving lights with dual-colour front position lights (amber/white) in a
sleek blackout design, suitable for both 12V and 24V systems.
High-performance 7" LED driving lights with dual-colour front position lights (amber/white) in a
sleek blackout design, suitable for both 12V and 24V systems.
Features
Dual-colour
Dual-colour amber/white position lights for increased vehicle visibility. ADR-approved for on-road use when white is selected, and significantly brighter than EX2R position lights.
Smoked Lens Protector
Smoked lens protector for a blacked out appearance, providing a signature look for any car.
Hybrid Beam
Hybrid beam provides outstanding width and distance, ensuring exceptional clarity in the dark. 1 lux is available at 700m.
No Harness Needed
Eliminates the need for a harness, making it the easiest to wire on the market, with no components needing to be routed through the firewall.
IP68 & IP69K
Fully sealed with IP68 and IP69K ratings for protection against dust and water ingress. Featuring a die-cast aluminum housing with integrated heat-sink fins and virtually unbreakable polycarbonate lenses.
Broad, powerful beam
9,700 effective lumens per lamp deliver a broad, powerful beam for greater driver safety.Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | 5.8A at 12V (each) |
| LUMENS | 6,000Lm per lamp |
| IP RATING | IP68 + IP69K |
| OPERATING TEMPERATURE | -40°C to +60°C |
| COLOUR TEMPERATURE | 5700°K |
| WEIGHT | 5.57 |
| ADR | 49/00 |
| OTHER | EMCR10 |
| OTHER | Cable length: 2m |

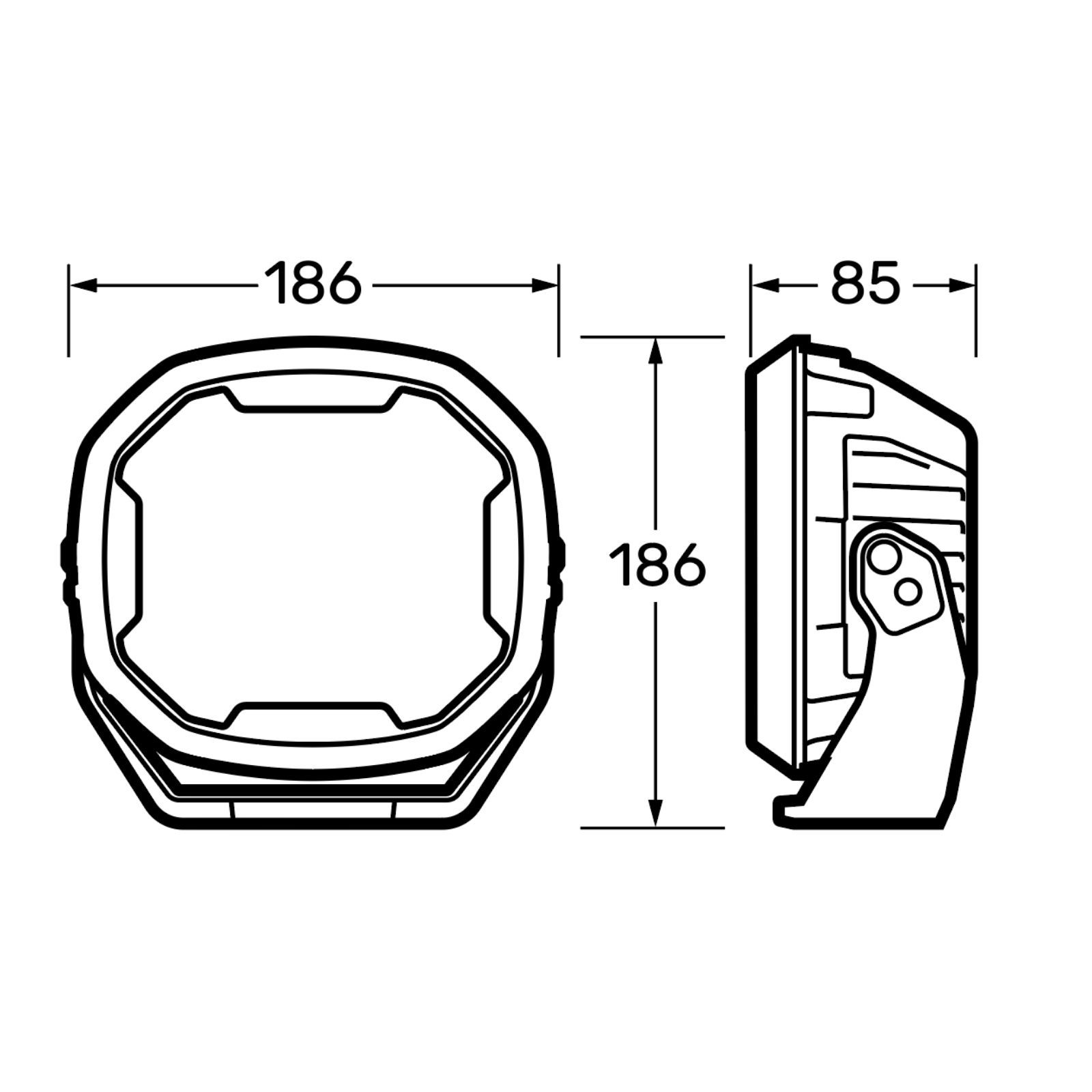

Dimensions
Downloads
Get the latest information
12/24V 7" EX2 Blackout Driving Light (Pair)
Download Instructions Download Spec Sheet
