4" Driving Light Kit to Suit Ford PX Ranger & Raptor (2011-2022)

Part No. 72143-FORD1
RRP $499.00 AUD Inc GST

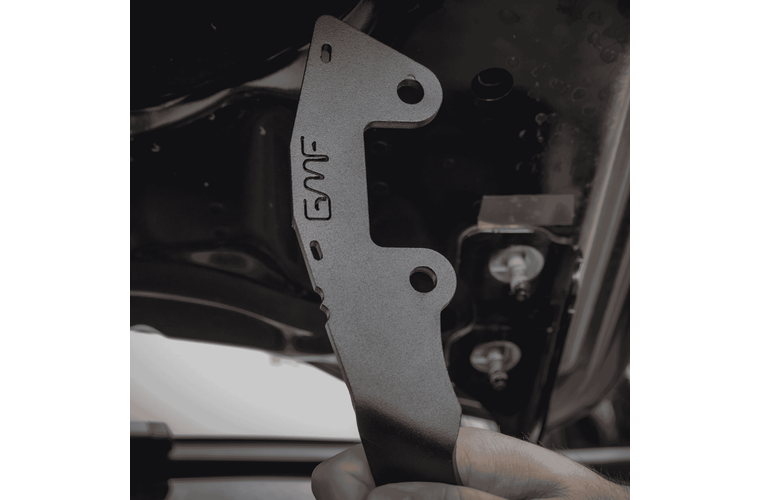

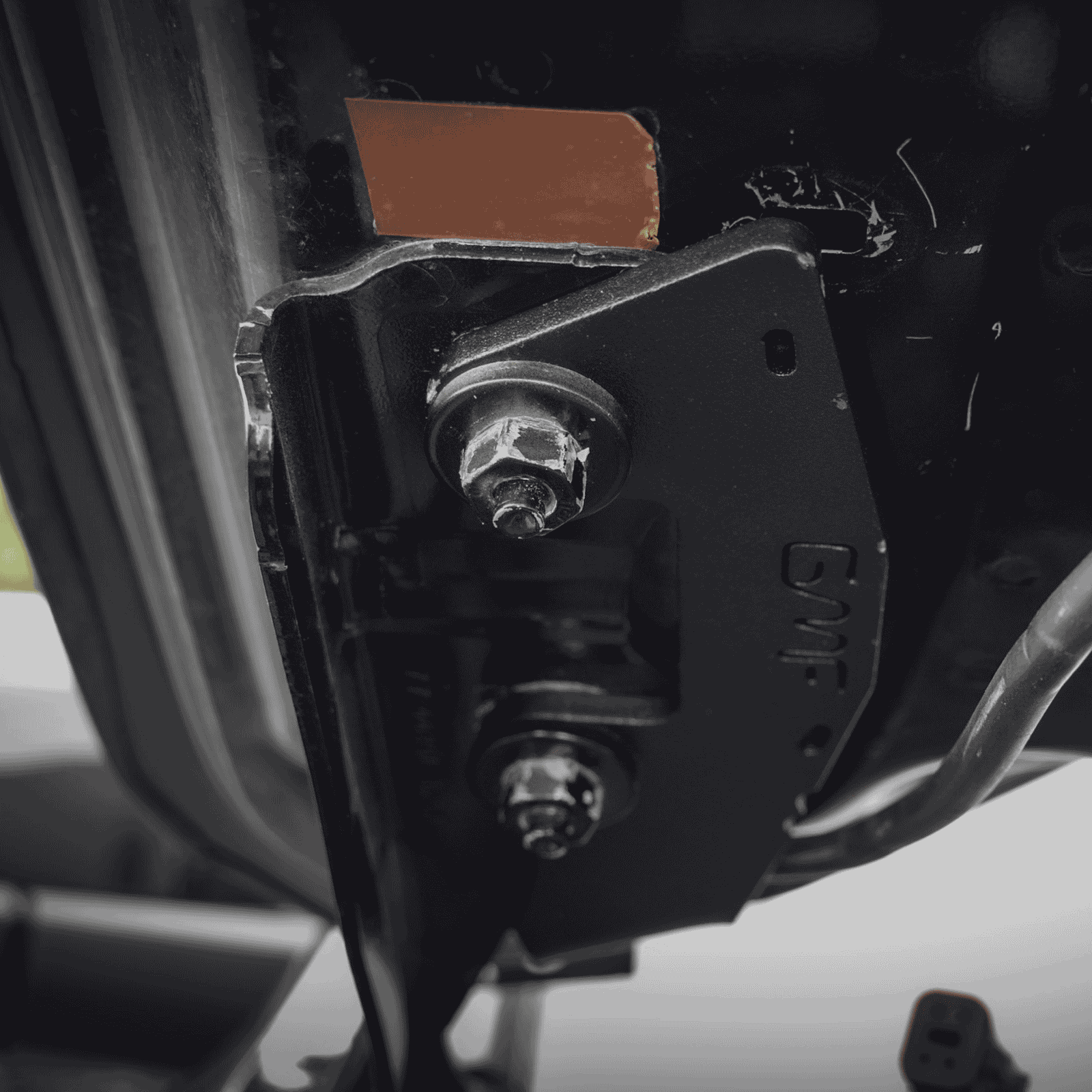

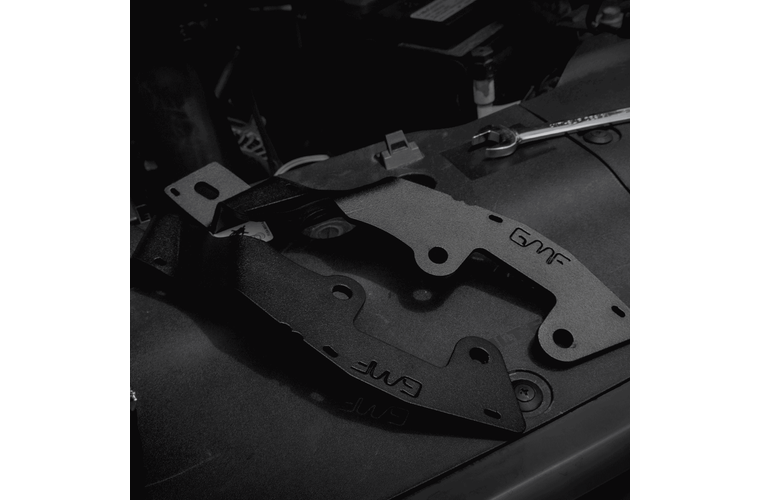

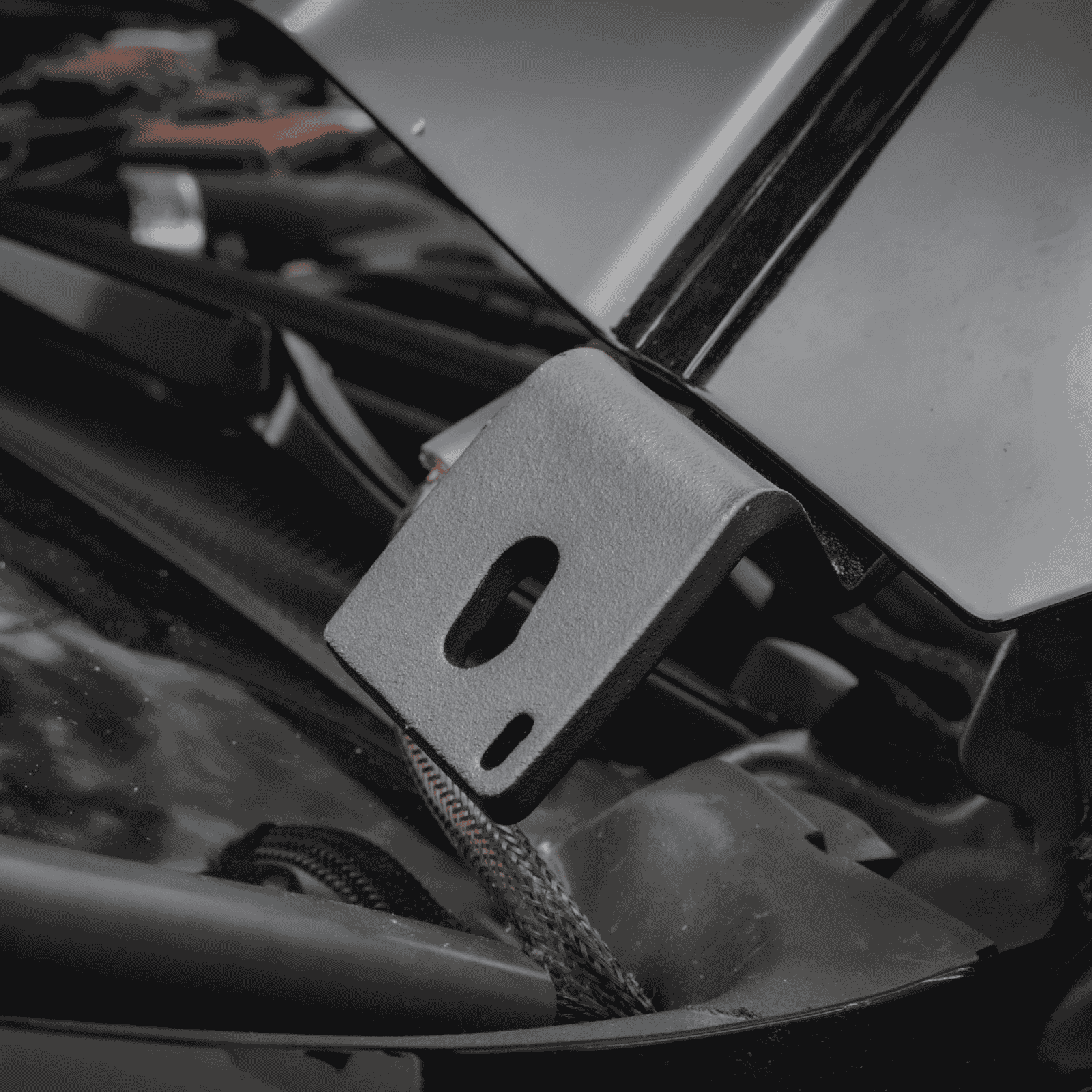

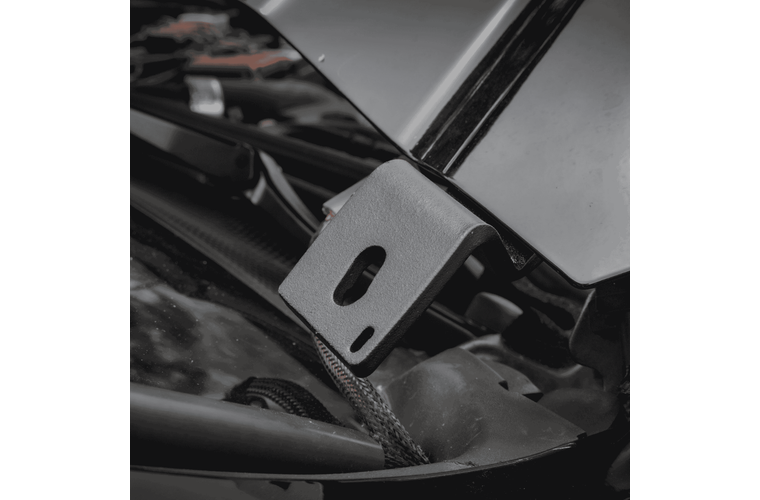

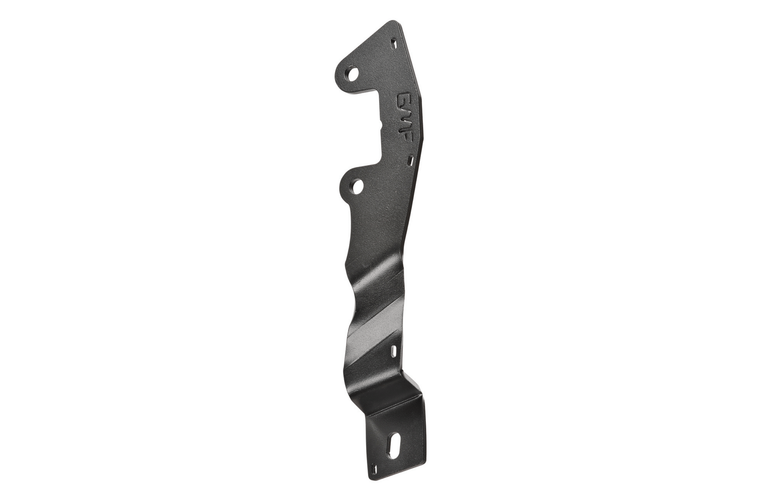

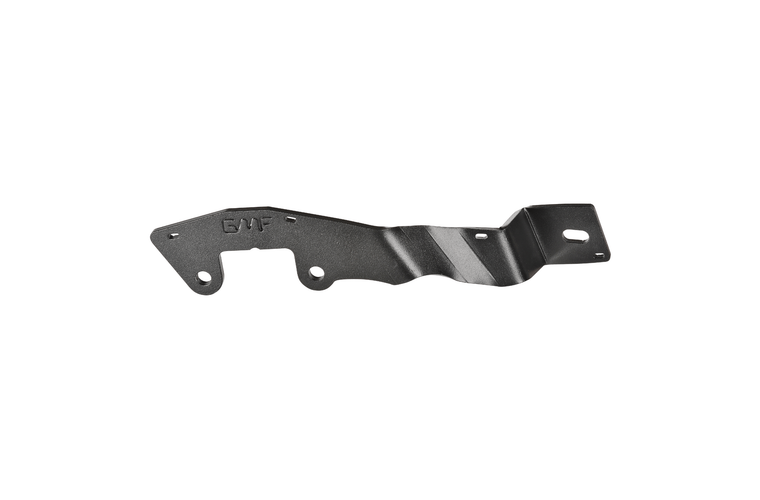

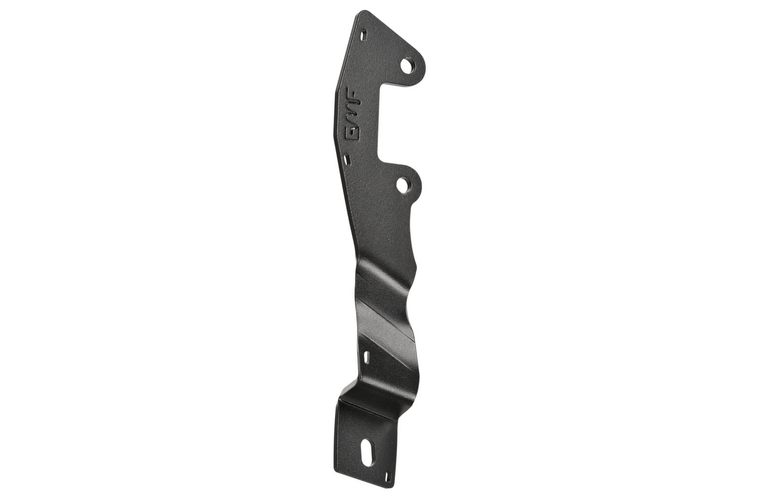

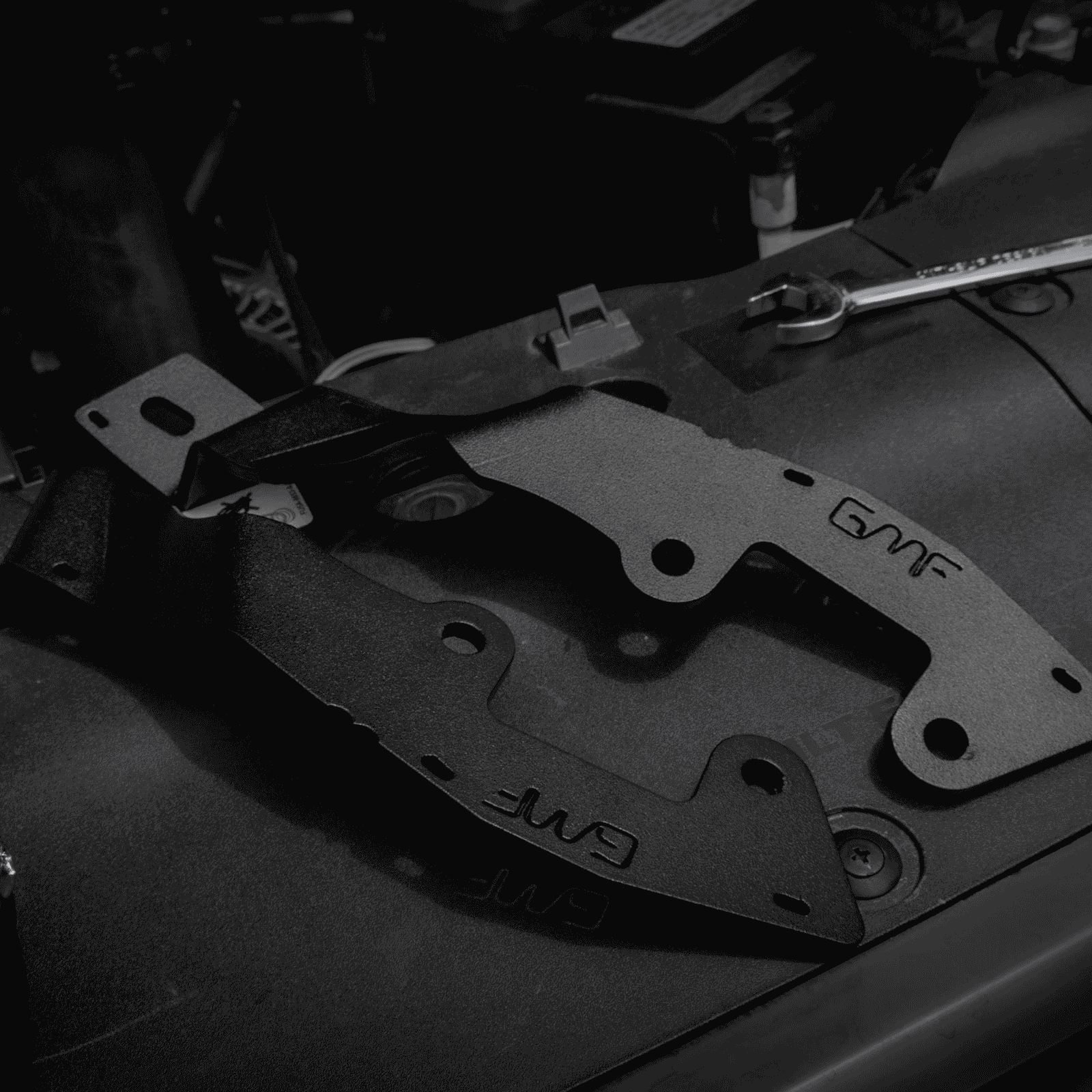

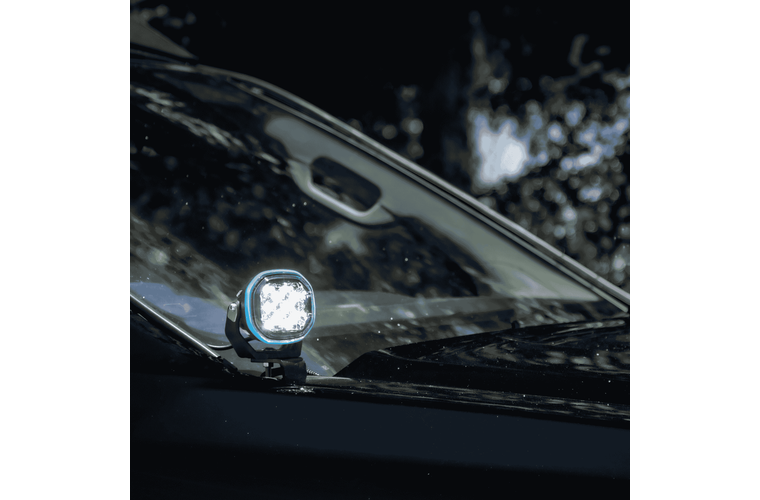

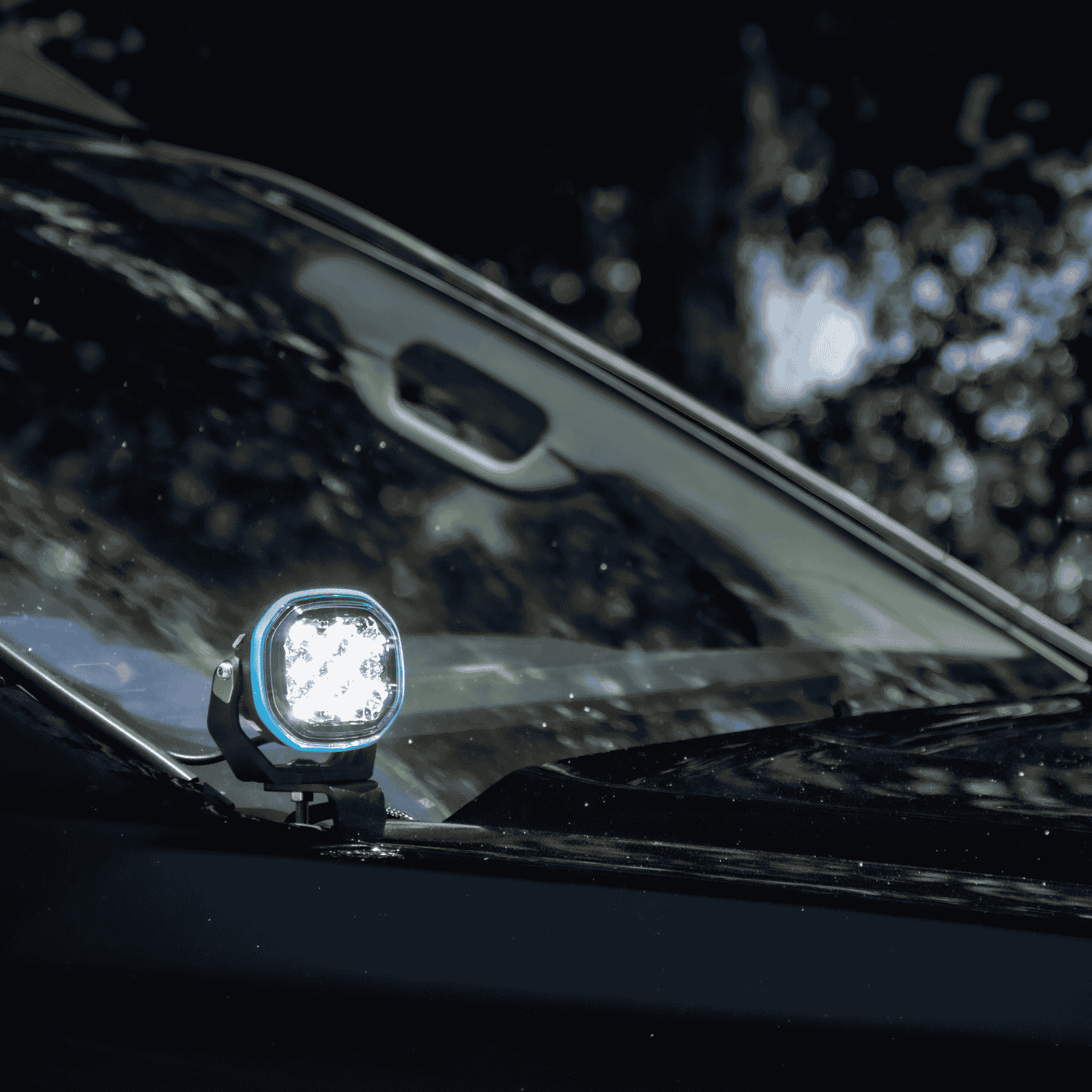

A bonnet mount kit designed to seamlessly fit Ford PX Ranger & Raptor (2011-2022) bonnets and allow the EX2-R 4" driving light to be mounted with no additional hardware.
Where to Buy
A bonnet mount kit designed to seamlessly fit Ford PX Ranger & Raptor (2011-2022) bonnets and allow the EX2-R 4" driving light to be mounted with no additional hardware.

Features

Vehicle Specific

Specifically design to fit Ford PX Ranger & Raptor (2011-2022)

Complete Kit

Full kit with lights, brackets and harness means a complete, matched setup that installs fast with no extra parts needed.

Easy DIY Install

Easy DIY installation lets 4WD enthusiasts fit it themselves quickly and confidently.

RGB Enabled

When paired with a 12V RGB Bluetooth® Controller, the RGB front position lights unlock 48 colour options, with ADR-approved white selectable for legal on-road use.

Hybrid Beam

Hybrid beam pattern offering excellent width and distance. 1 lux is available at 220m

Broad, Powerful Beam

2,260 effective lumens per lamp deliver a broad, powerful beam for greater driver safety

Built Tough

Features a die-cast aluminum housing with integrated heat-sink fins and a virtually unbreakable UV-resistant hard-coated polycarbonate lens that won't chip or yellow with age.

Dust and Water Protection

Fully sealed with IP68 and IP69K ratings for protection against dust and water ingress.

Specifications

Technical Information
INPUT VOLTAGE RANGE9-33V
CURRENT DRAW2.5A at 12V (each)
POWER60W
LUMENS2,260Lm per lamp
IP RATINGIP68 + IP69K
OPERATING TEMPERATURE-40°C to +60°C
COLOUR TEMPERATURE5700°K
OTHERDie-cast aluminium

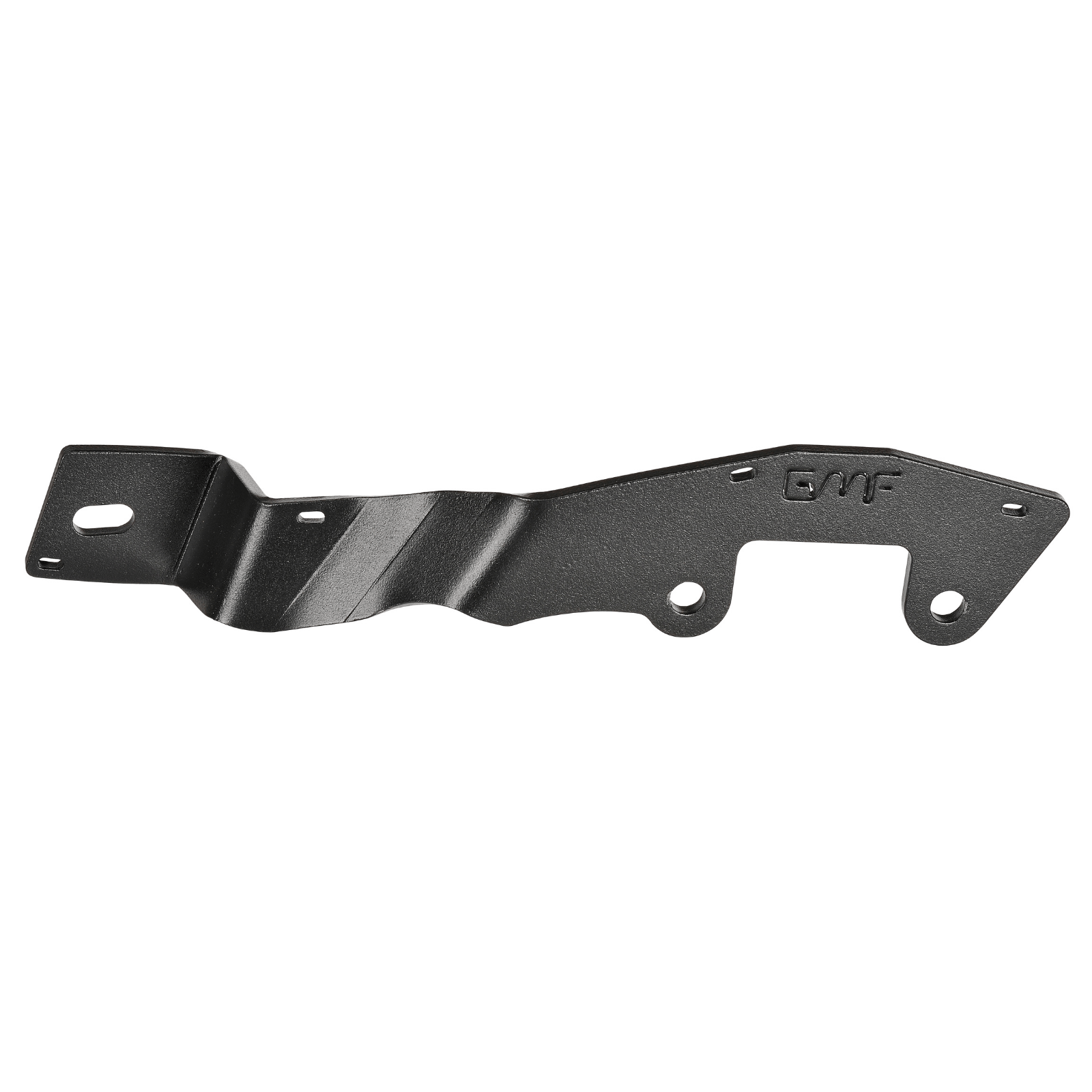

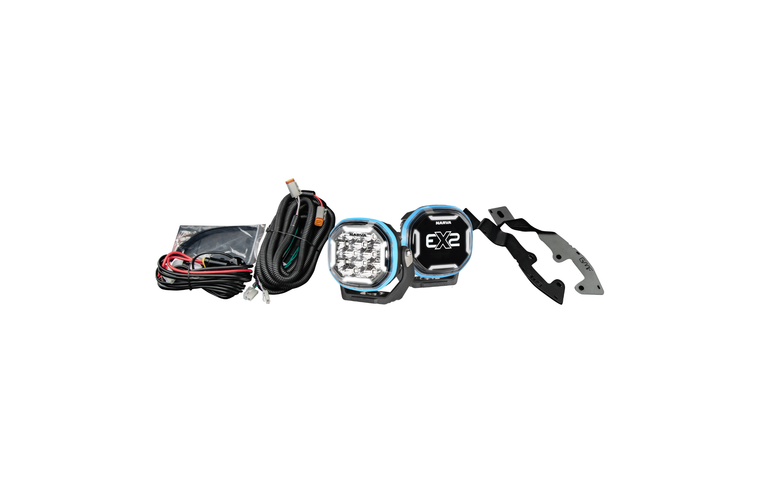

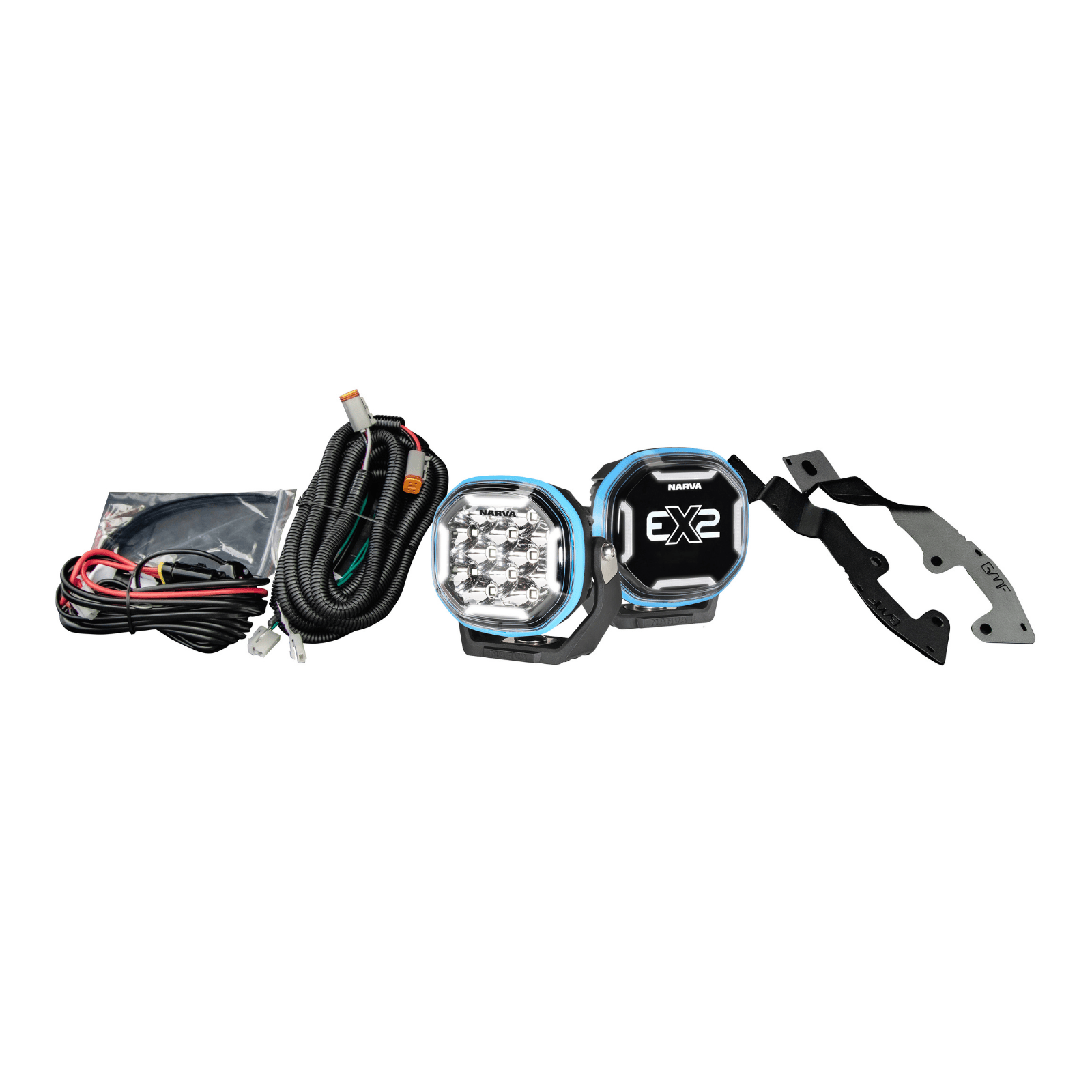

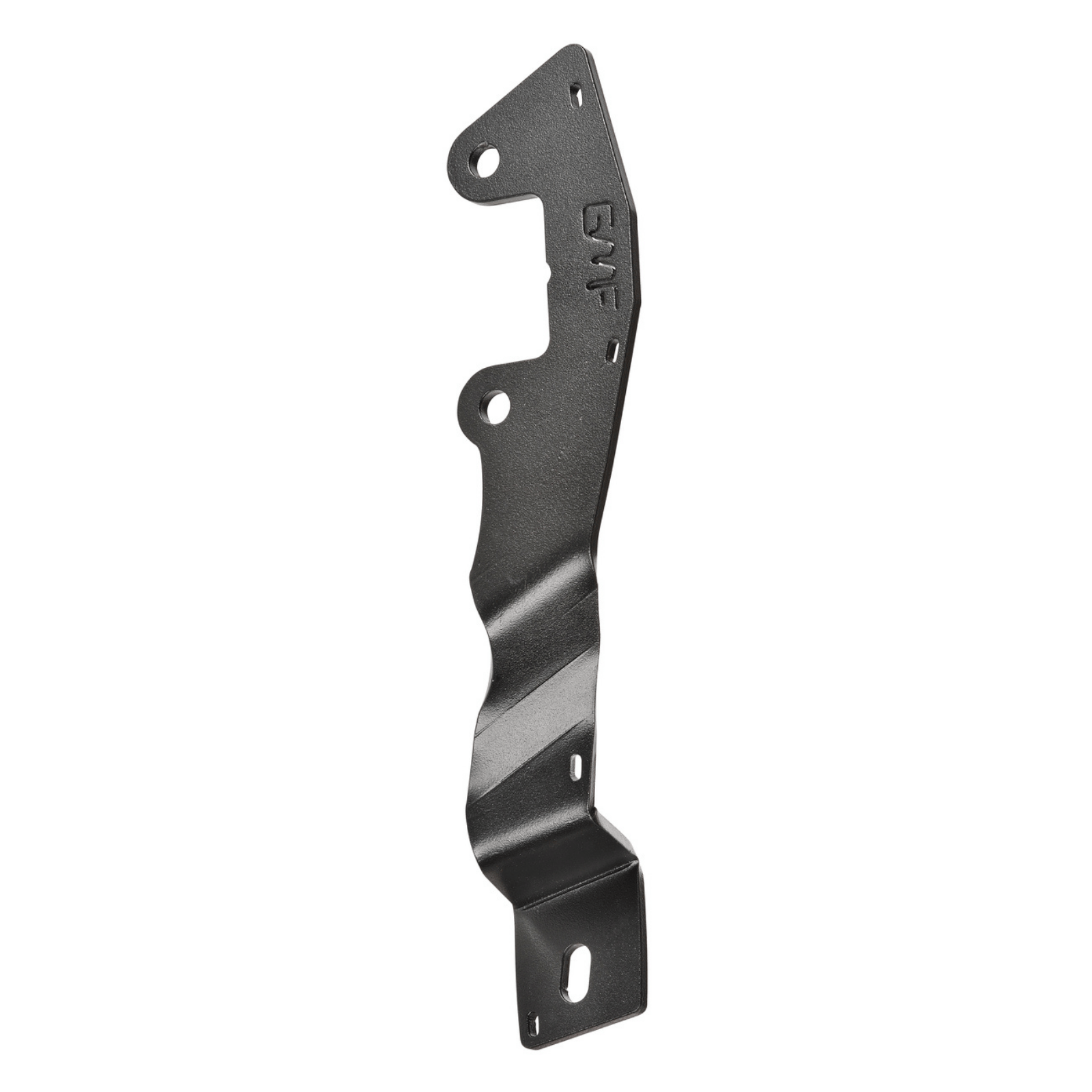

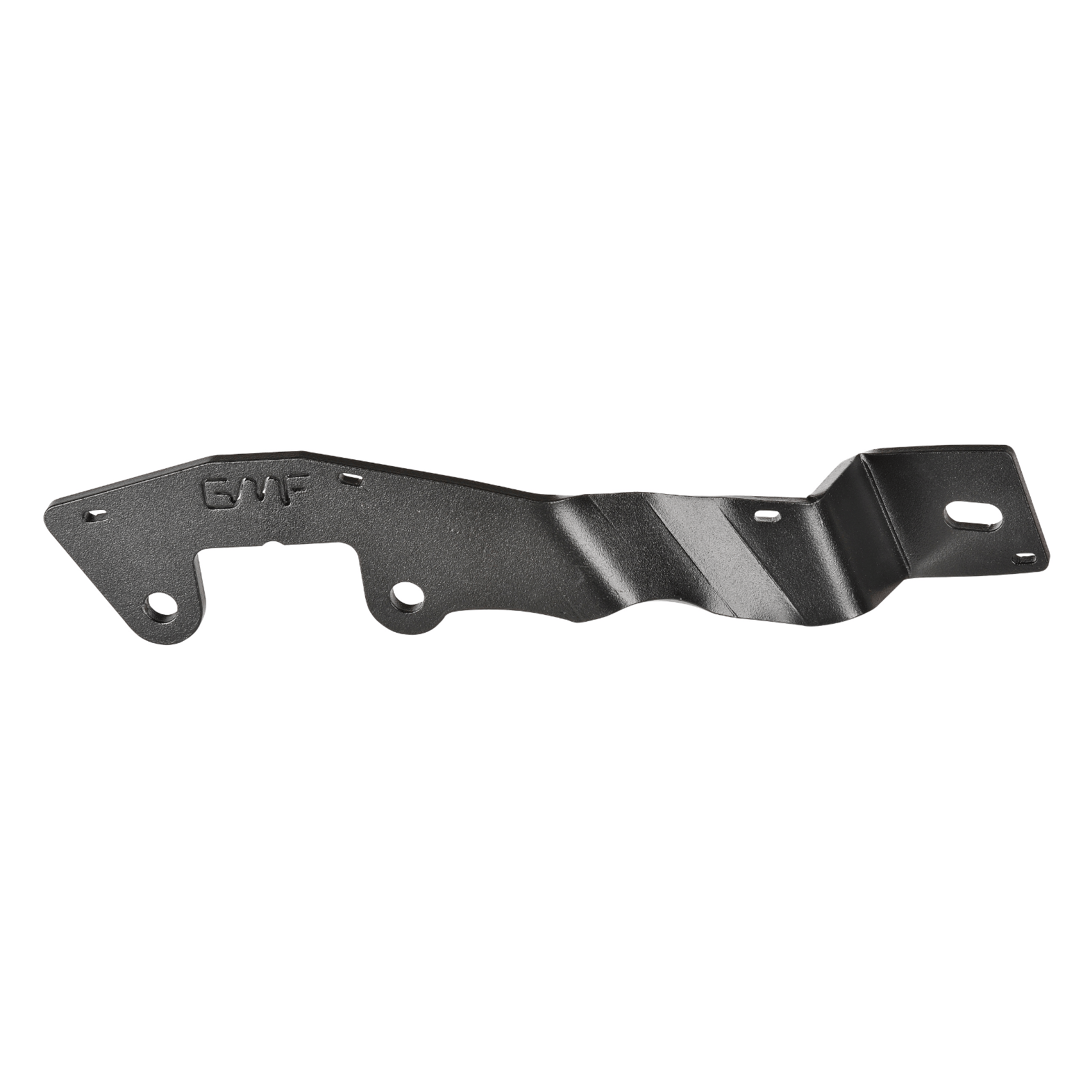

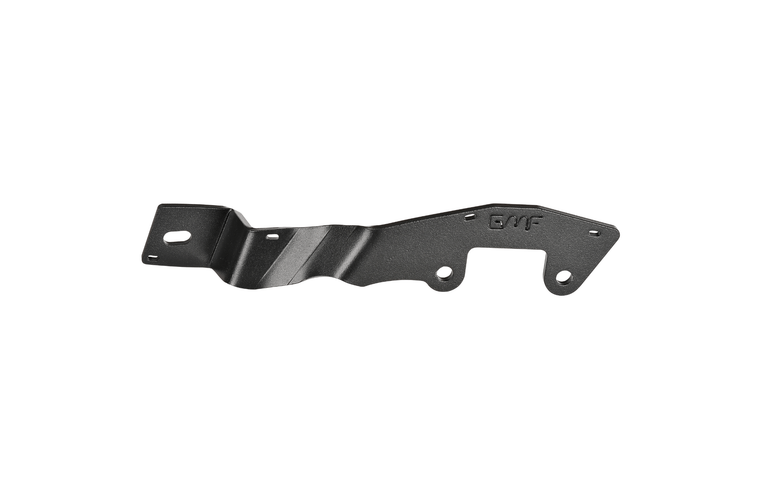

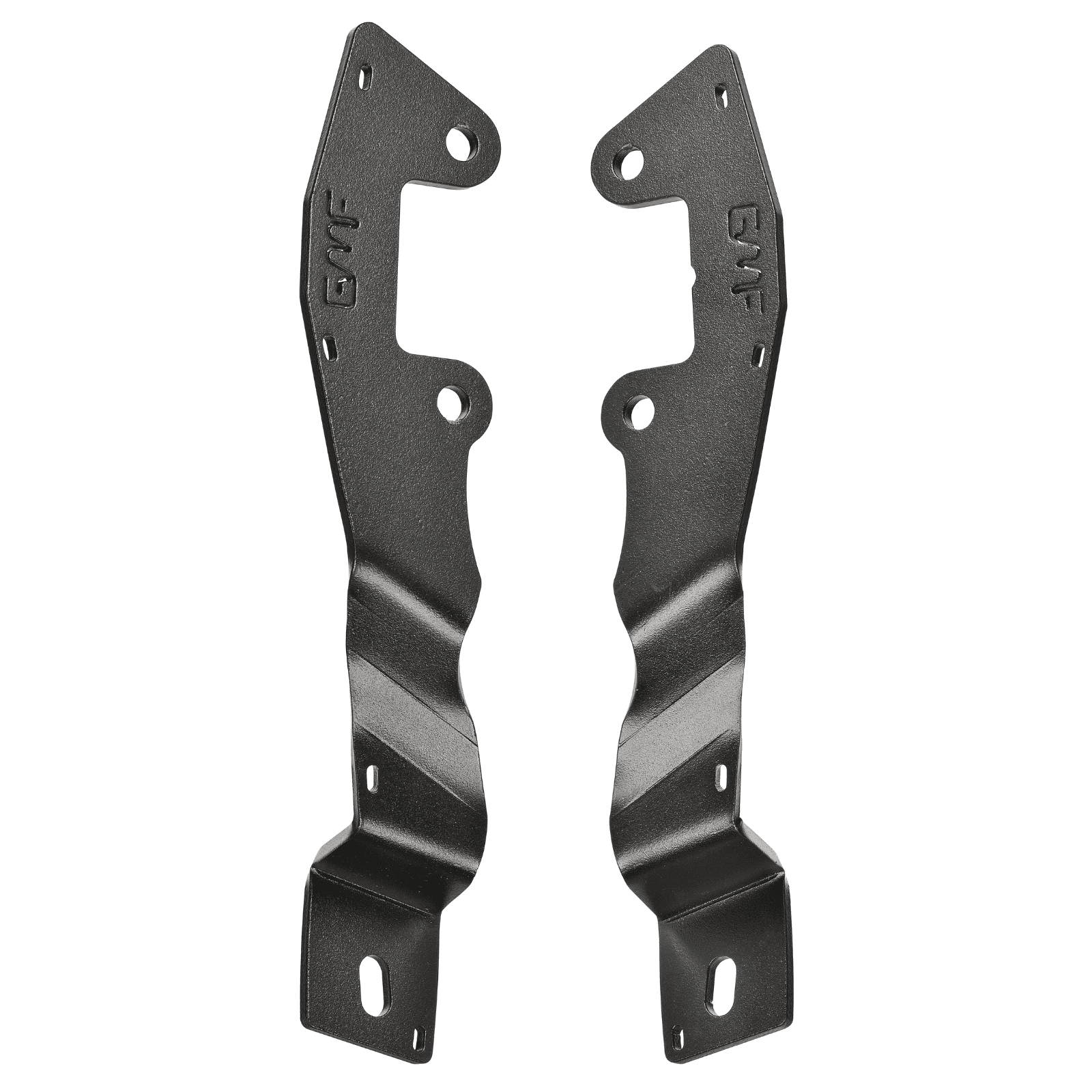

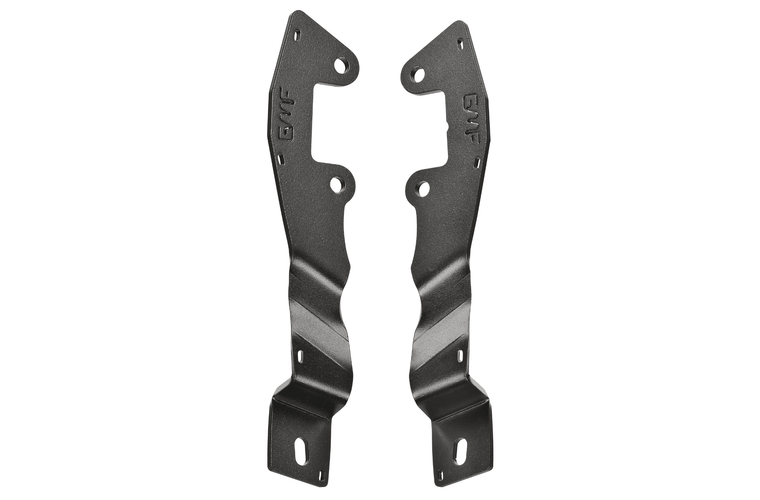

COMPRISES - 2 x 72143 EX2-R 4"Driving Lamp; - GMF 4x4 Bonnet Bracket (Pair); - 74428 Wiring Harness;

Downloads

Get the latest information

4" Driving Light Kit to Suit Ford PX Ranger & Raptor (2011-2022)

Download Instructions
