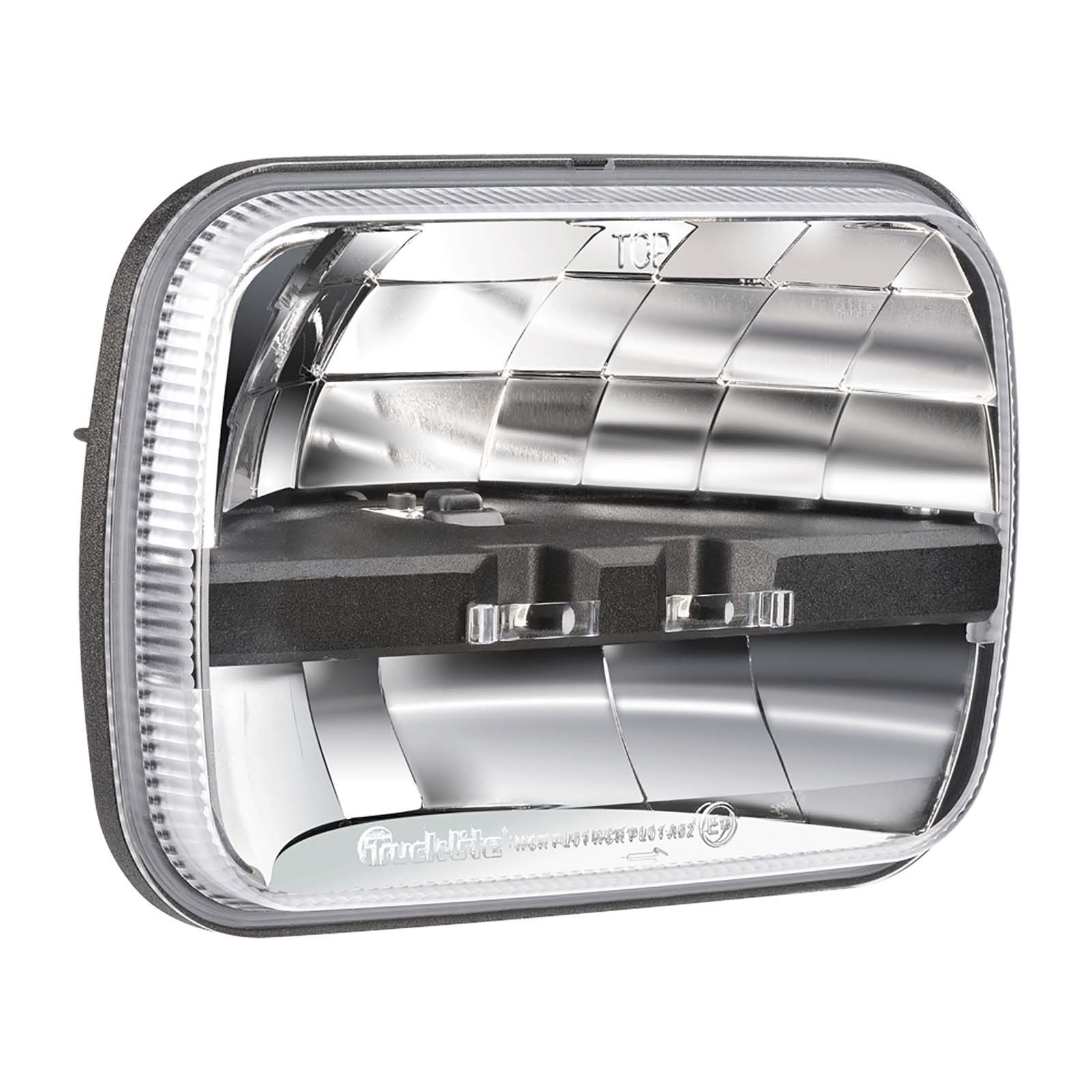

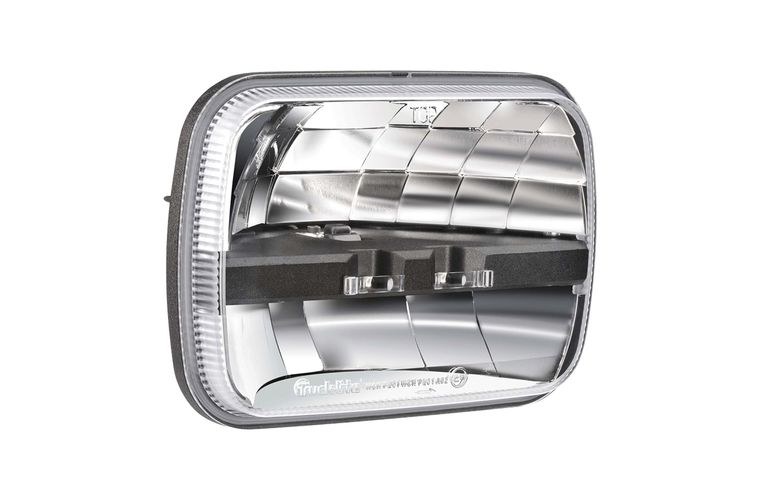

Truck-Lite LED High/Low Beam Free Form Headlamp Insert
Part No. 72126
RRP $1,243.00 AUD Inc GST
RRP $1,243.00 AUD Inc GST
9-33V 200 x 142mm with Park Light Function Delivering superior white L.E.D light
performance this world class headlamp is ideal for fitment to modern trucks and
buses where reliability and performance are a must. The lamp features high/low and
park functions and replaces either sealed or semi-sealed beams.
9-33V 200 x 142mm with Park Light Function Delivering superior white L.E.D light
performance this world class headlamp is ideal for fitment to modern trucks and
buses where reliability and performance are a must. The lamp features high/low and
park functions and replaces either sealed or semi-sealed beams.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | Low Beam: 1.80A at 12V 1.00A at 24V High Beam: 3.60A at 12V 1.80A at 24V |
| IP RATING | IP68 |
| SIZE | 200 x 142mm |
| ADR | 46/00 E13-112R-01-13977 49/00 E13-7R-02-13977 |
| COMPRISES | Virtually unbreakable polycarbonate lens; Military grade housing; H4 connector for easy retro-fit connection; |
