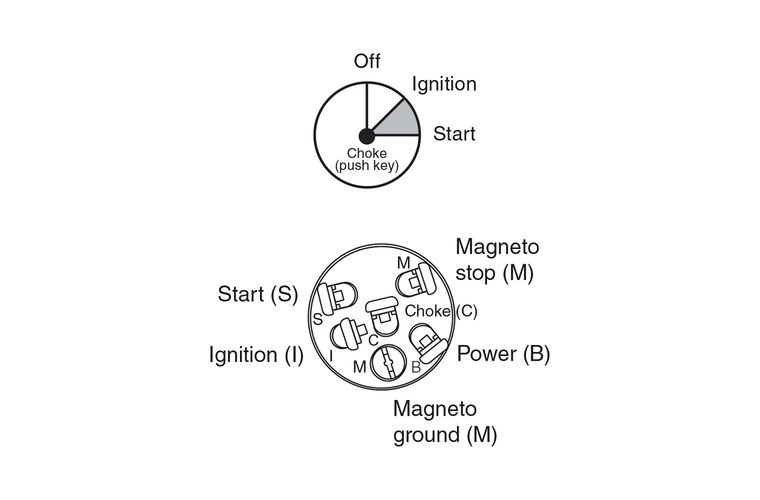

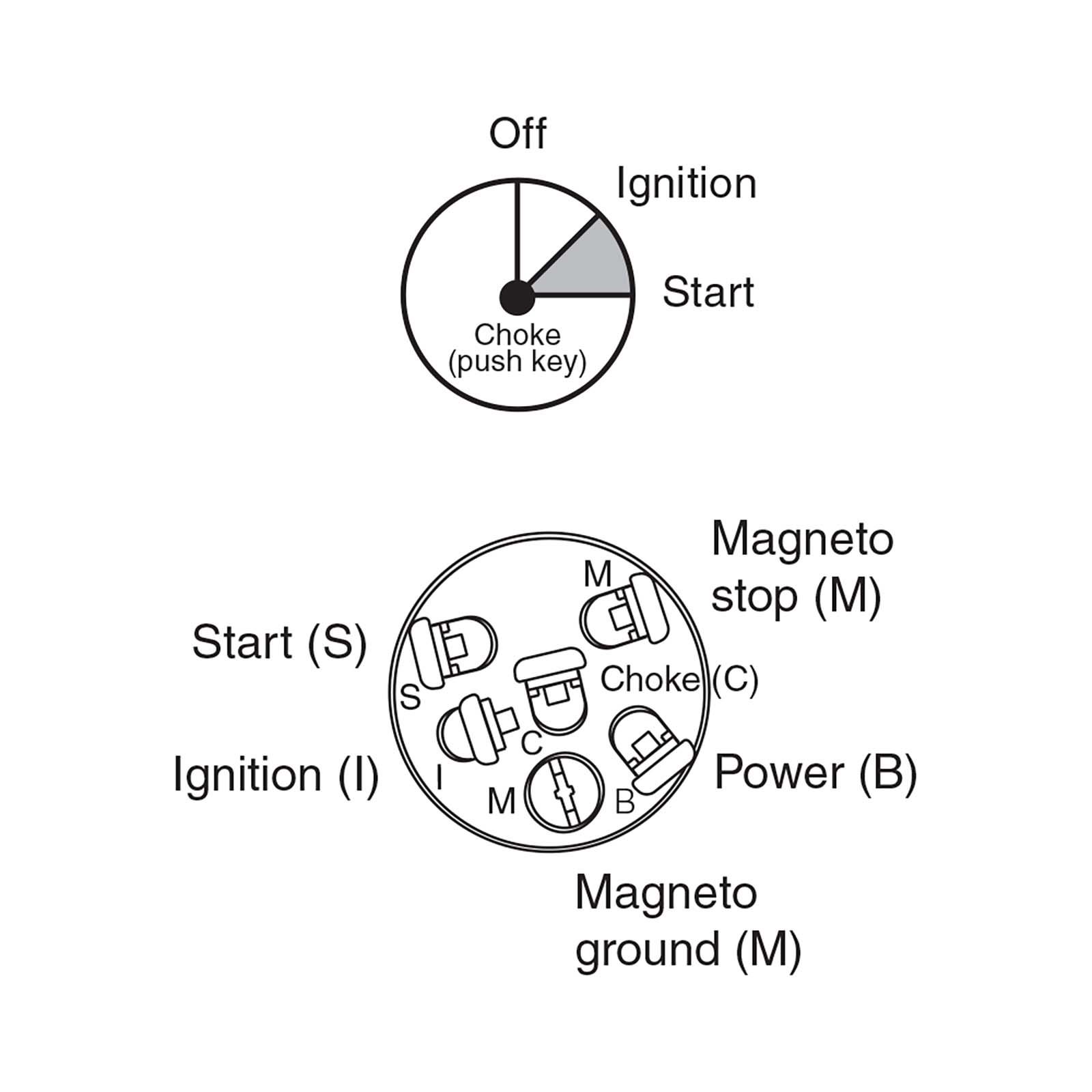

3 Position Ignition Switch (Marine) with Push for Choke Function
Part No. 64008
Corrosion proof plastic construction with brass screw terminals, suitable for marine
applications. Spring return action for start. Supplied with two encapsulated keys.
Mounting opening 21mm dia. Amperage ratings at 12V, 10A Ignition, 5A Start, 1A Choke
Corrosion proof plastic construction with brass screw terminals, suitable for marine
applications. Spring return action for start. Supplied with two encapsulated keys.
Mounting opening 21mm dia. Amperage ratings at 12V, 10A Ignition, 5A Start, 1A Choke
Specifications
Technical Information
CURRENT DRAW | Amperage ratings at 12V, 10A Ignition, 5A Start, 1A Choke |
---|---|
LEDs | 57 |
