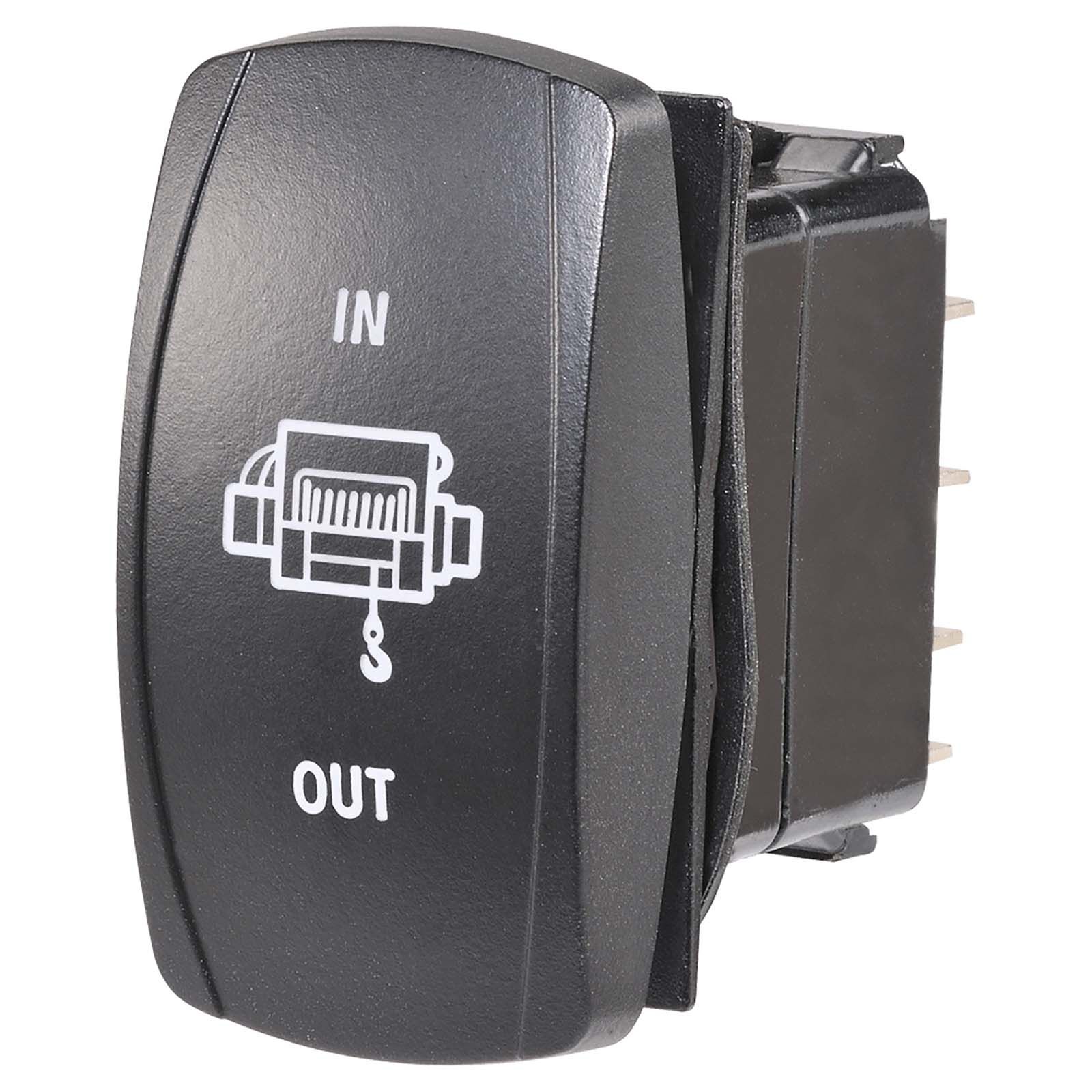

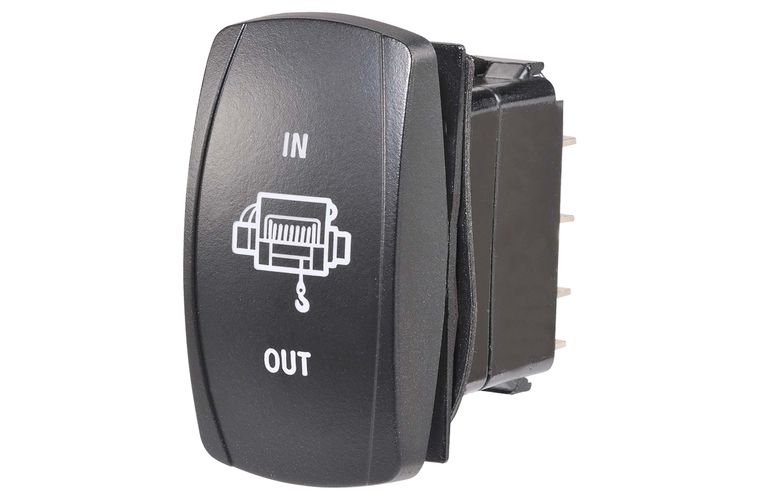

12/24V Momentary (On)/Off/Mom(On) Illuminated Sealed Rocker Switch with"Winch" Sym
Part No. 63238BL
RRP $53.50 AUD Inc GST
RRP $53.50 AUD Inc GST
DPDT, push-fit design with push on terminals and illumination Amperage rating 20A
at 12V, 10A at 24V Mounting opening: 37.5 x 21mm
DPDT, push-fit design with push on terminals and illumination Amperage rating 20A
at 12V, 10A at 24V Mounting opening: 37.5 x 21mm
Specifications
Technical Information
| CURRENT DRAW | Amperage rating 20A at 12V, 10A at 24V |
|---|---|
| LEDs | 38 |
| COMPRISES | Durable, sealed switch with two-way momentary ‘On’ positions designed for activating spool-in and spool-out functions of a winch system.; Illuminated panel features laser etched symbol and text for quick identification; |
