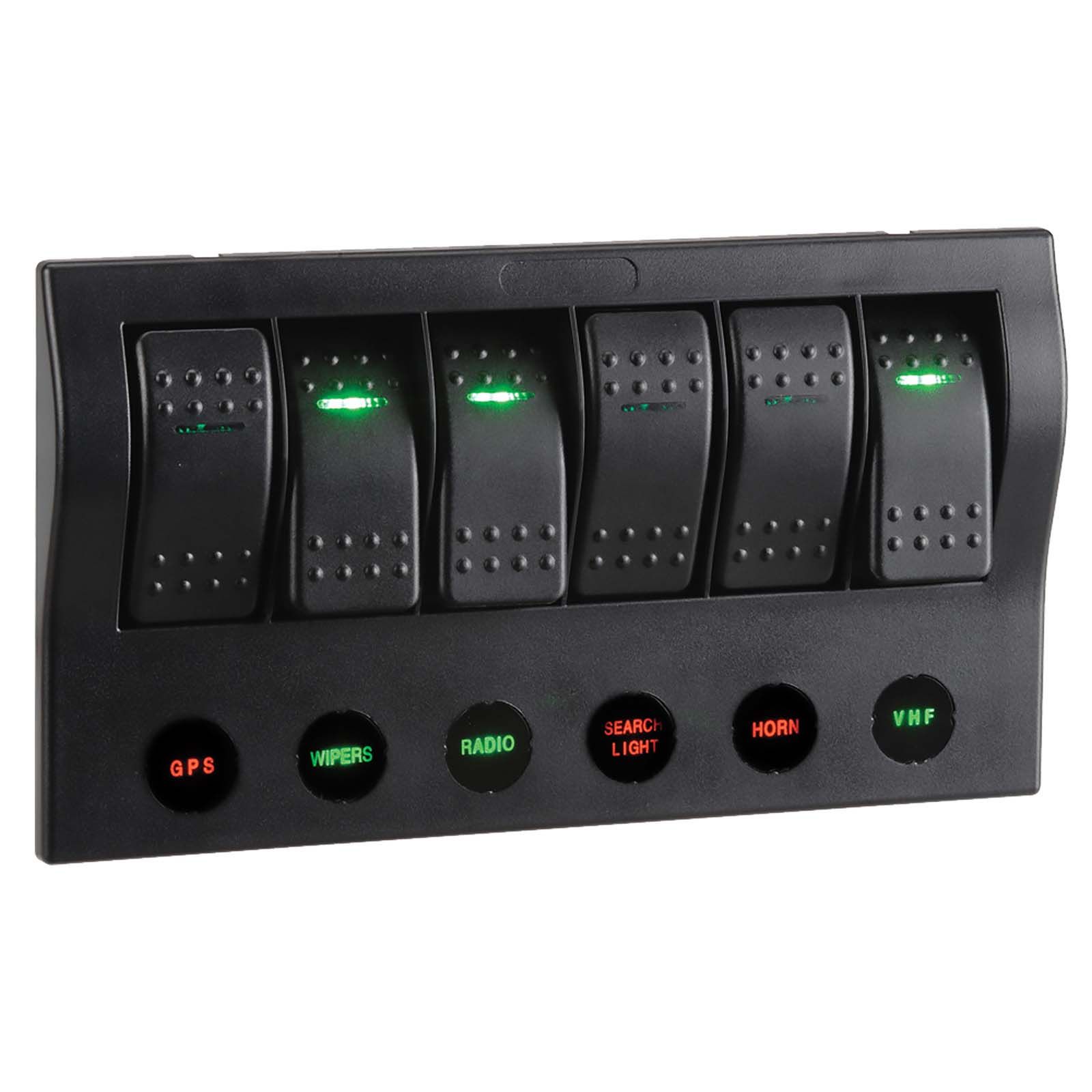

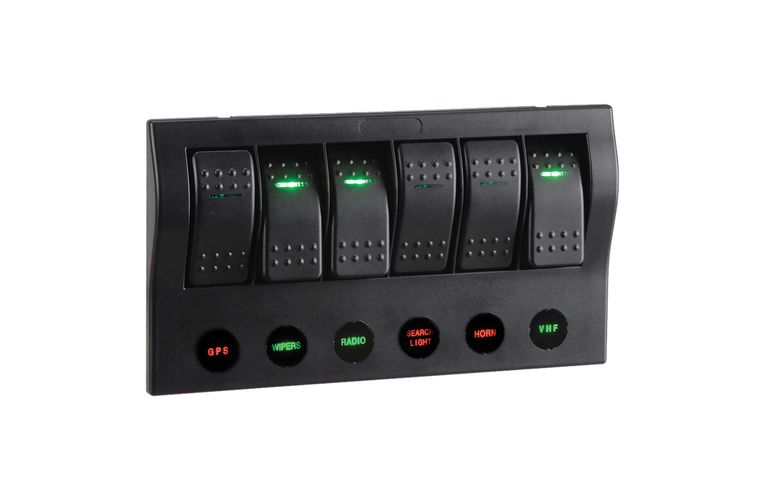

6-Way LED Switch Panel with Circuit Breaker Protection
Part No. 63194
RRP $310.00 AUD Inc GST
RRP $310.00 AUD Inc GST
SPST, ‘On’ illumination Amperage rating 20A at 12V, 10A at 24V Mounting opening:
160 x 83mm Overall Panel Dimensions: 183 x 100mm Circuit Breakers: 3 x 10A (P/No.
55310) 3 x 15A (P/No. 55315)
SPST, ‘On’ illumination Amperage rating 20A at 12V, 10A at 24V Mounting opening:
160 x 83mm Overall Panel Dimensions: 183 x 100mm Circuit Breakers: 3 x 10A (P/No.
55310) 3 x 15A (P/No. 55315)
Specifications
Technical Information
| CURRENT DRAW | Amperage rating 20A at 12V, 10A at 24V |
|---|---|
| LEDs | 38 |
| COMPRISES | 5 Off/On switches and 1 Momentary (On) switch.; Symbol and switch illuminate green when ‘On’ and symbol illuminates red when ‘Off’.; 60 piece symbol set for RV and Marine applications; |
