The Australian Design Rules (ADRs) are the national standards for vehicle safety in Australia and are recognised by New Zealand Land Transport. The specifications for the installation of vehicle lighting is covered in ADR 13/00.

This guide illustrates the typical mounting positions of lighting on various types of vehicles. For exact mounting requirements please refer to ADR 13/00.

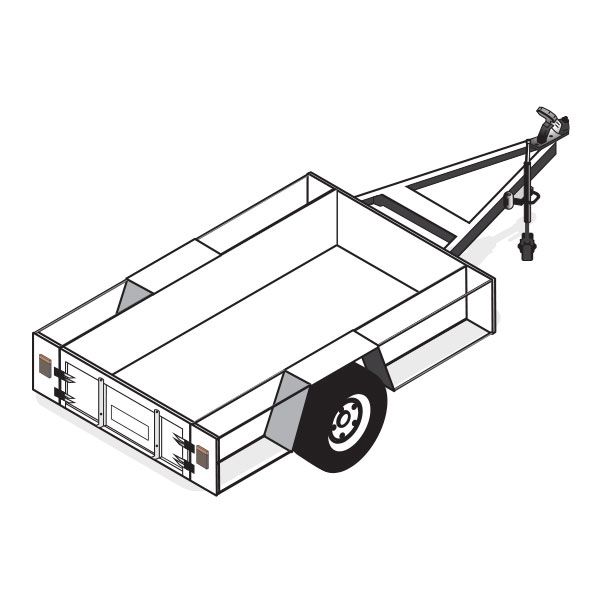

Box Trailer ADR Lighting Installation

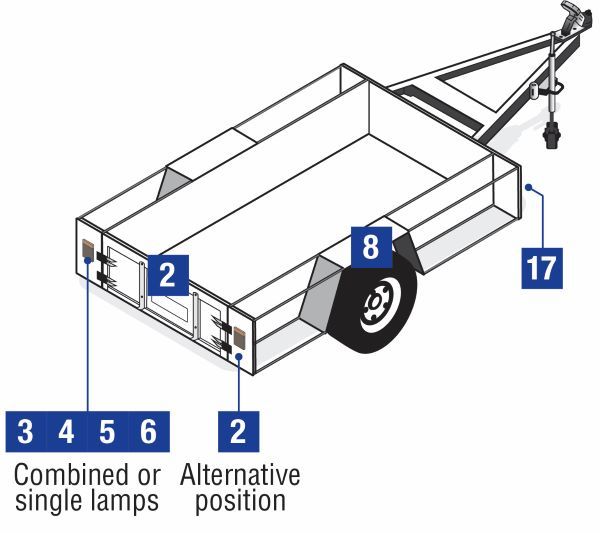

ADR 13/00 Installation Box Trailer

Rear

2. ADR 48/00 - Licence Plate Lamps

3. ADR 6/00 (Cat. 2a) - Rear Direction Indicator Lamps

4. ADR 49/00 - Rear Position (Tail) Lamps

5. ADR 49/00 - Stop Lamps

6. ADR 47/00 - Rear Retro Reflectors

Side

8. ADR 47/00 - Side Retro Reflectors

Front

17. ADR 47/00 - Optional Driving Lamps (Optional on motor vehicles. ADR 13/00 permits 2 or 4 driving lamps that do not have to comply with ADR 46/00.)

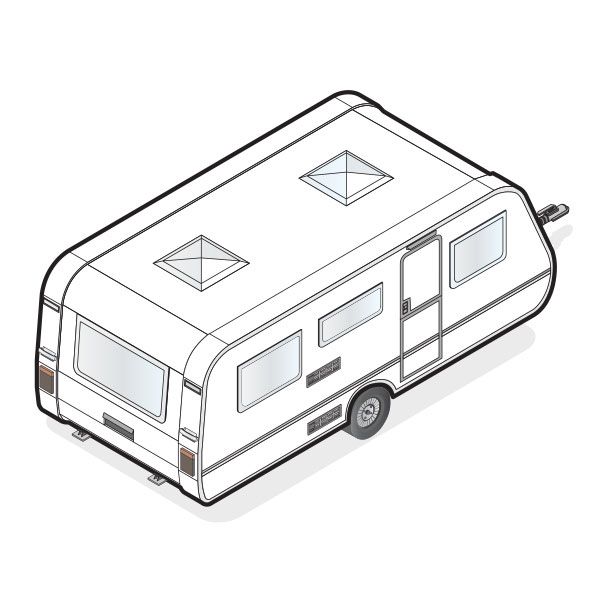

Caravan ADR Lighting Installation

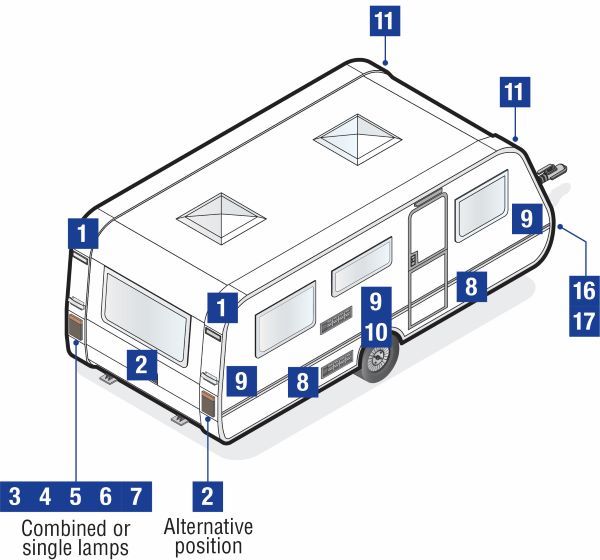

ADR 13/00 Installation Caravan

Rear

1. ADR 49/00 - Rear End Outline Lamps

2. ADR 48/00 - Licence Plate Lamps

3. ADR 6/00 (Cat. 2a) - Rear Direction Indicator Lamps

4. ADR 49/00 - Rear Position (Tail) Lamps

5. ADR 49/00 - Stop Lamps

6. ADR 47/00 - Rear Retro Reflectors

7. ADR 1/00 - Reverse Lamps

Side

8. ADR 47/00 - Side Retro Reflectors

9. ADR 45/01 or ADR 74/00 - Side Marker Lamps

10. ADR 6/00 (Cat. 5/6) - Supplementary Side Direction Indicator Lamps

Front

11. ADR 49/00 - Front End Outline Lamps

16. ADR 49/00 - Front Position Lamps

17. ADR 47/00 - Optional Driving Lamps (Optional on motor vehicles. ADR 13/00 permits 2 or 4 driving lamps that do not have to comply with ADR 46/00.)

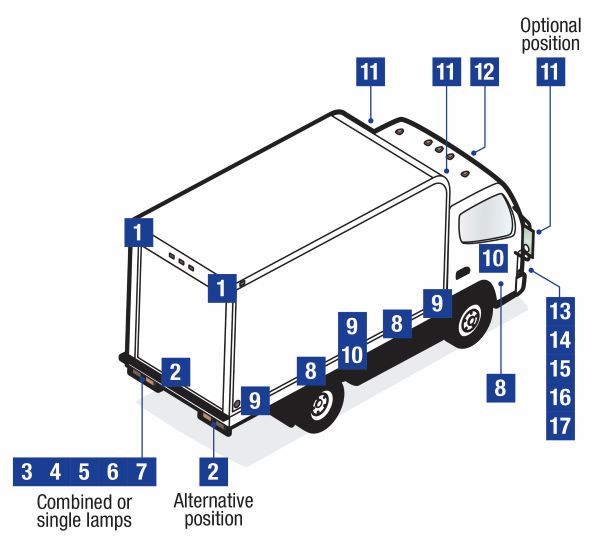

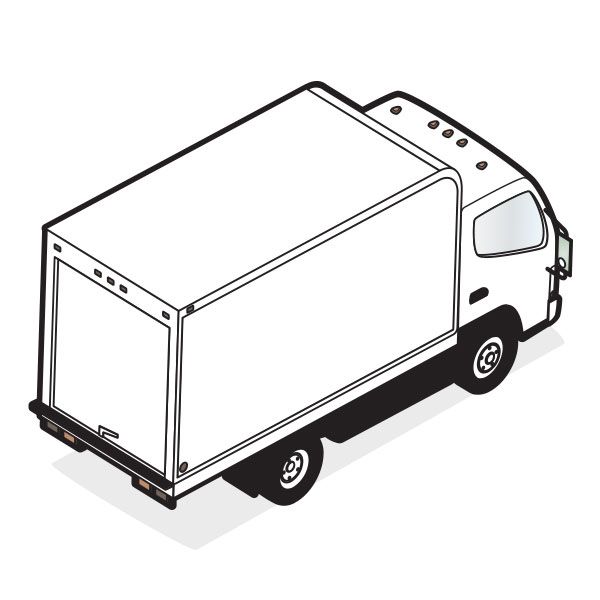

Light Rigid Truck ADR Lighting Installation

ADR 13/00 Light Rigid Truck

Rear

1. ADR 49/00 - Rear End Outline Lamps

2. ADR 48/00 - Licence Plate Lamps

3. ADR 6/00 (Cat. 2a) - Rear Direction Indicator Lamps

4. ADR 49/00 - Rear Position (Tail) Lamps

5. ADR 49/00 - Stop Lamps

6. ADR 47/00 - Rear Retro Reflectors

7. ADR 1/00 - Reverse Lamps

Side

8. ADR 47/00 - Side Retro Reflectors

9. ADR 45/01 or ADR 74/00 - Side Marker Lamps

10. ADR 6/00 (Cat. 5/6) - Supplementary Side Direction Indicator Lamps

Front

11. ADR 49/00 - Front End Outline Lamps

12. ADR 45/01 - Cab Marker Lamps

13. ADR 6/00 (Cat. 1) - Front Direction Indicator Lamps

14. ADR 50/00 - Front Fog Lamps – optional

15. ADR 46/00 - Headlamps

16. ADR 49/00 - Front Position Lamps

17. ADR 47/00 - Optional Driving Lamps (Optional on motor vehicles. ADR 13/00 permits 2 or 4 driving lamps that do not have to comply with ADR 46/00.)

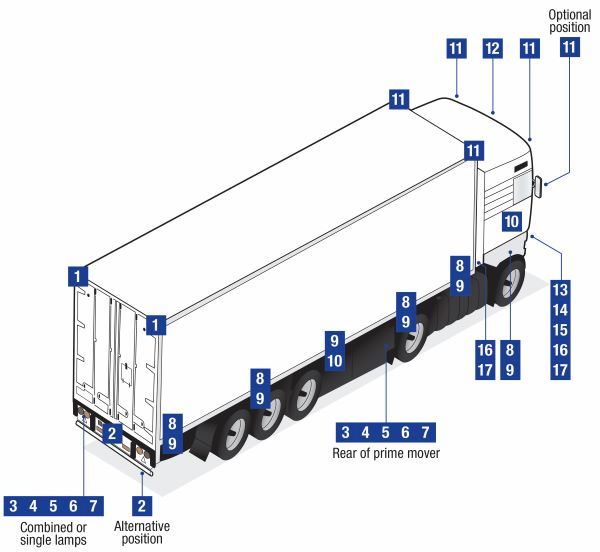

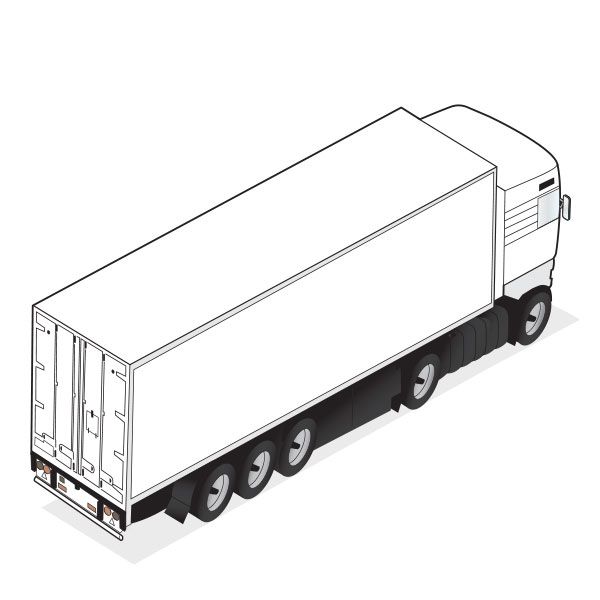

Semi Trailer ADR Lighting Installation

ADR 13/00 Installation Semi Trailer

Rear

1. ADR 49/00 - Rear End Outline Lamps

2. ADR 48/00 - Licence Plate Lamps

3. ADR 6/00 (Cat. 2a) - Rear Direction Indicator Lamps

4. ADR 49/00 - Rear Position (Tail) Lamps

5. ADR 49/00 - Stop Lamps

6. ADR 47/00 - Rear Retro Reflectors

7. ADR 1/00 - Reverse Lamps

Side

8. ADR 47/00 - Side Retro Reflectors

9. ADR 45/01 or ADR 74/00 - Side Marker Lamps

10. ADR 6/00 (Cat. 5/6) - Supplementary Side Direction Indicator Lamps

Front

11. ADR 49/00 - Front End Outline Lamps

12. ADR 45/01 - Cab Marker Lamps

13. ADR 6/00 (Cat. 1) - Front Direction Indicator Lamps

14. ADR 50/00 - Front Fog Lamps – optional

15. ADR 46/00 - Headlamps

16. ADR 49/00 - Front Position Lamps

17. ADR 47/00 - Optional Driving Lamps (Optional on motor vehicles. ADR 13/00 permits 2 or 4 driving lamps that do not have to comply with ADR 46/00.)

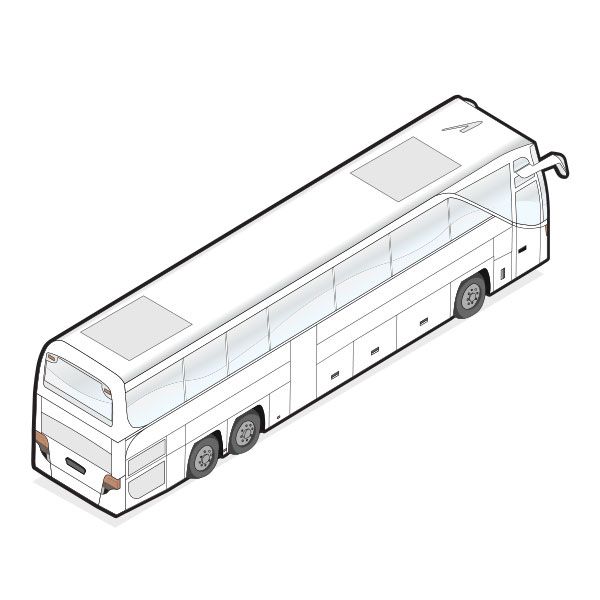

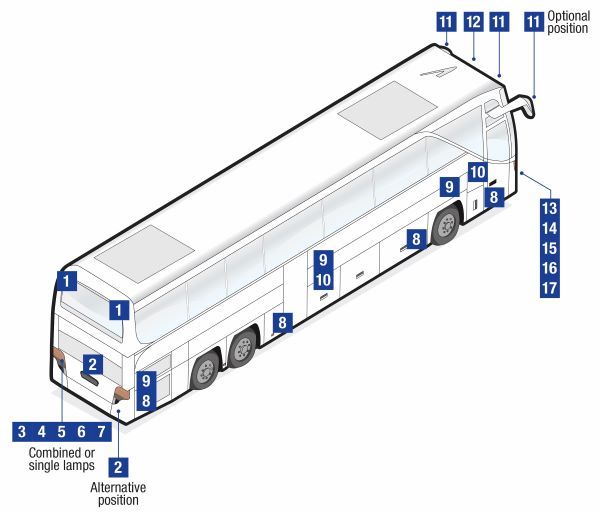

Bus/Coach ADR Lighting Installation

ADR 13/00 Installation Bus/Coach

Rear

1. ADR 49/00 - Rear End Outline Lamps

2. ADR 48/00 - Licence Plate Lamps

3. ADR 6/00 (Cat. 2a) - Rear Direction Indicator Lamps

4. ADR 49/00 - Rear Position (Tail) Lamps

5. ADR 49/00 - Stop Lamps

6. ADR 47/00 - Rear Retro Reflectors

7. ADR 1/00 - Reverse Lamps

Side

8. ADR 47/00 - Side Retro Reflectors

9. ADR 45/01 or ADR 74/00 - Side Marker Lamps

10. ADR 6/00 (Cat. 5/6) - Supplementary Side Direction Indicator Lamps

Front

11. ADR 49/00 - Front End Outline Lamps

12. ADR 45/01 - Cab Marker Lamps

13. ADR 6/00 (Cat. 1) - Front Direction Indicator Lamps

14. ADR 50/00 - Front Fog Lamps – optional

15. ADR 46/00 - Headlamps

16. ADR 49/00 - Front Position Lamps

17. ADR 47/00 - Optional Driving Lamps (Optional on motor vehicles. ADR 13/00 permits 2 or 4 driving lamps that do not have to comply with ADR 46/00.)

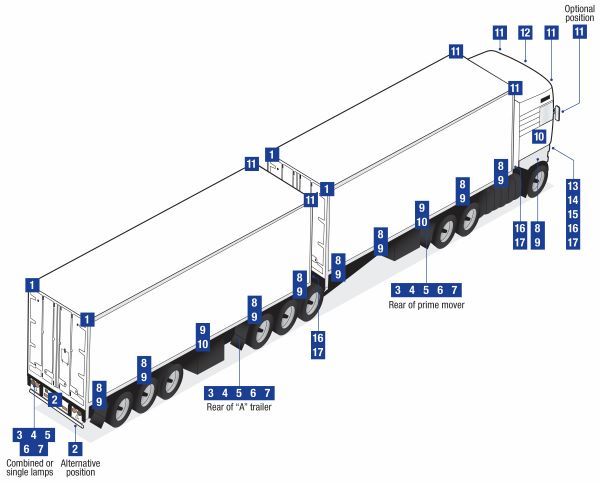

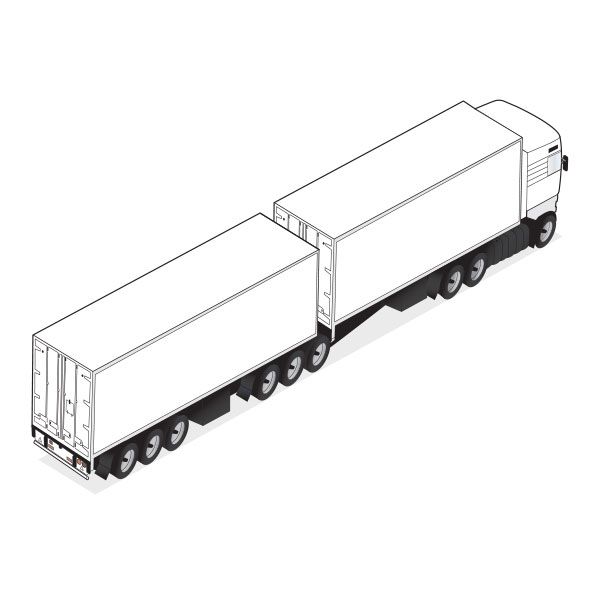

B-Double-Trailer ADR Lighting Installation

ADR 13/00 Installation B-Double-Trailer

Rear

1. ADR 49/00 - Rear End Outline Lamps

2. ADR 48/00 - Licence Plate Lamps

3. ADR 6/00 (Cat. 2a) - Rear Direction Indicator Lamps

4. ADR 49/00 - Rear Position (Tail) Lamps

5. ADR 49/00 - Stop Lamps

6. ADR 47/00 - Rear Retro Reflectors

7. ADR 1/00 - Reverse Lamps

Side

8. ADR 47/00 - Side Retro Reflectors

9. ADR 45/01 or ADR 74/00 - Side Marker Lamps

10. ADR 6/00 (Cat. 5/6) - Supplementary Side Direction Indicator Lamps

Front

11. ADR 49/00 - Front End Outline Lamps

12. ADR 45/01 - Cab Marker Lamps

13. ADR 6/00 (Cat. 1) - Front Direction Indicator Lamps

14. ADR 50/00 - Front Fog Lamps – optional

15. ADR 46/00 - Headlamps

16. ADR 49/00 - Front Position Lamps

17. ADR 47/00 - Optional Driving Lamps (Optional on motor vehicles. ADR 13/00 permits 2 or 4 driving lamps that do not have to comply with ADR 46/00.)
