9–33 VOLT MODEL 16 L.E.D FRONT END OUTLINE MARKER OR EXTERNAL CABIN LAMP (AMBER)
9–33 VOLT MODEL 16 L.E.D FRONT END OUTLINE MARKER OR EXTERNAL CABIN LAMP (AMBER)
Part No.
91622
Model 16 L.E.D lamps feature multi-voltage circuitry to suit 12 or 24 volt operation
and cover a wide range of ADR applications using one common lamp body.
Share this page
Model 16 combines red and amber L.E.Ds with clear lens
0.5m hard wired cable
Black deflector mounting base
Virtually unbreakable polycarbonate lens
Technical Information
| INPUT VOLTAGE RANGE | 9-33 Volt |
|---|---|
| CURRENT DRAW | 0.02A |
| LEDs | Rated to 100,000 hours of L.E. |
| LP RATING | IP66 and IP68 |
| SIZE | 74 x 38mm |
| CANDELA RATING | 59 |
| ADR | Vertical: 49/00 30943, Horizontal: 45/00 30942, 49/00 30944 |

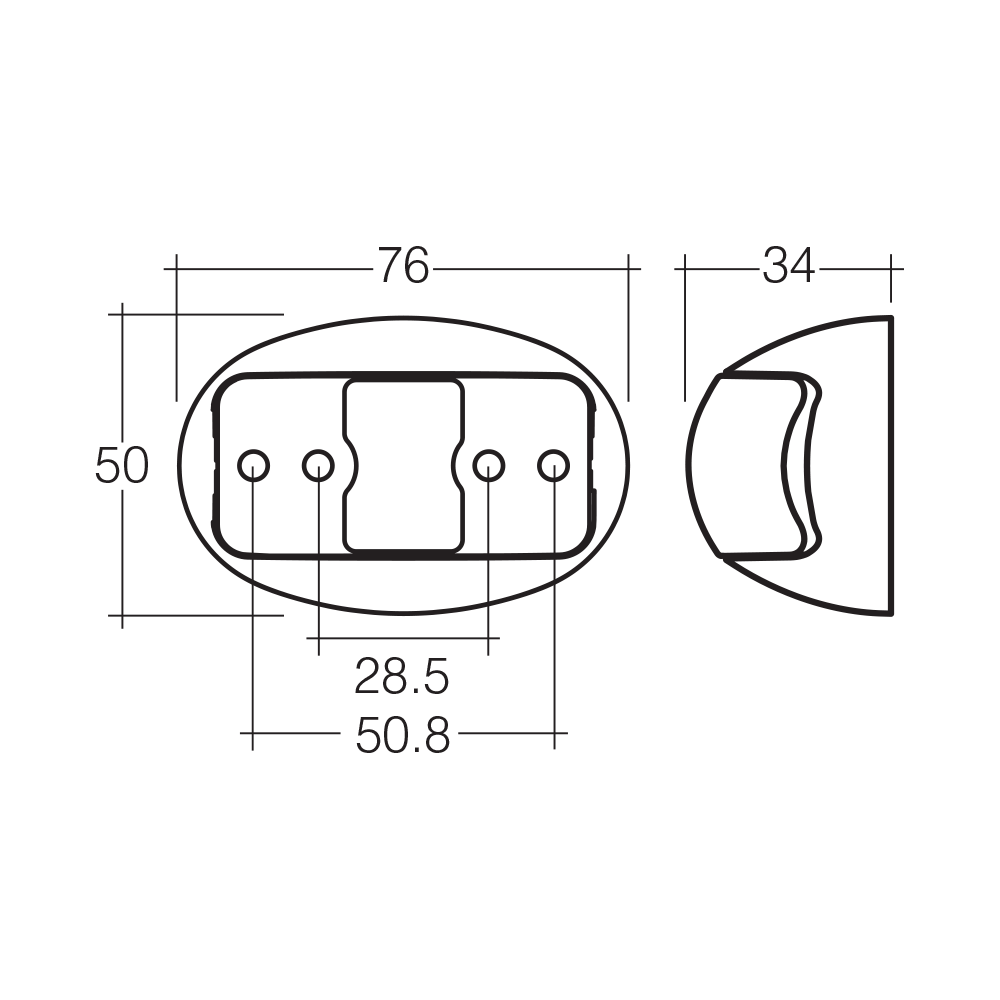

Drawings
Product Comprises of
| 1. | 91620 |
|---|---|
| 2. | 91690 |
