10-30V L.E.D Courtesy Lamp with Off/On Switch White Face Plate and Mounting Spacer 75mm

10-30V L.E.D Courtesy Lamp with Off/On Switch White Face Plate and Mounting Spacer 75mm

Part No. 87620
Ultra low current draw from a powerful 1W L.E.D provides a bright and broad spread of light. Pre-wired and can be flush mounted or surface mounted with supplied spacer. Switches on and off by pushing the face of the lamp
Share this page
Ultra low current draw from a powerful 1W L.E.D provides a bright and broad spread of light Pre-wired and can be flush mounted or surface mounted with supplied spacer Switches on and off by pushing the face of the lamp

Technical Information

INPUT VOLTAGE RANGE10–30 Volt
CURRENT DRAW0.12A at 12V, 0.06A at 24V
POWER 1W

Drawings

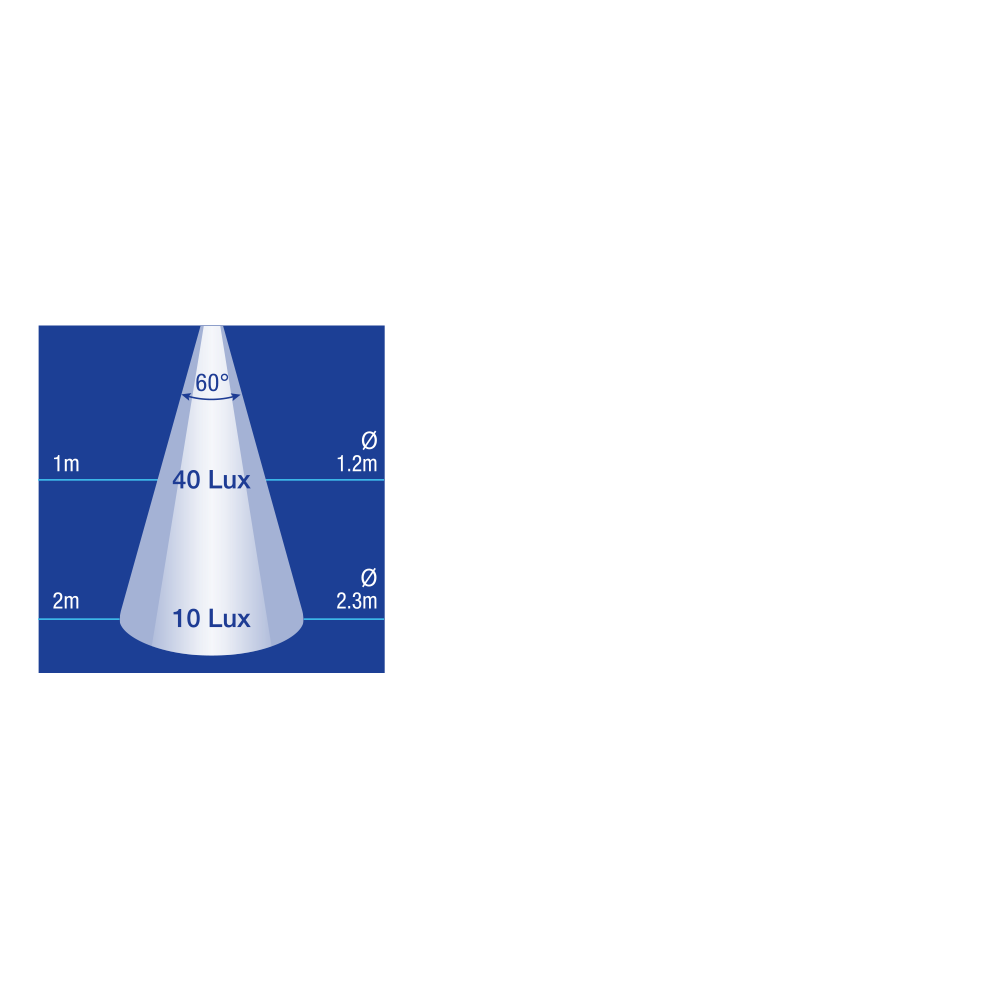

Beam Pattern
