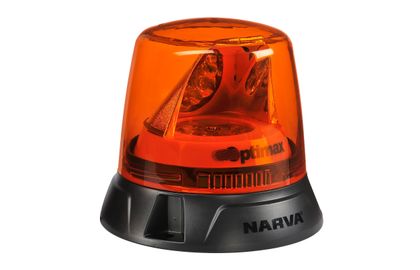

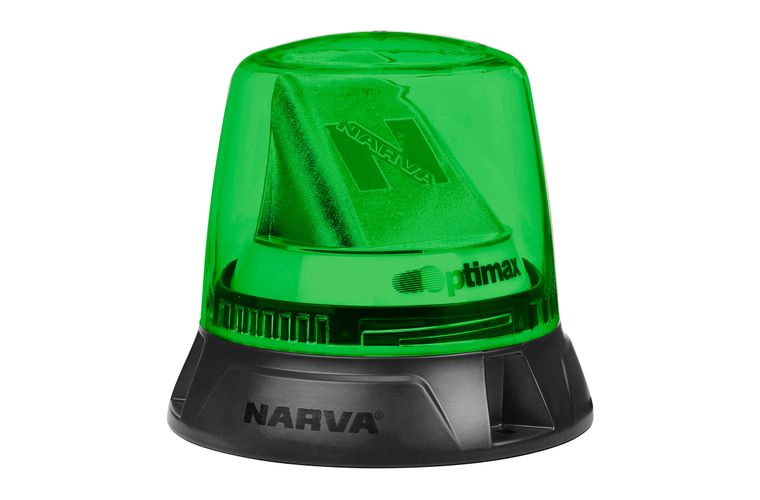

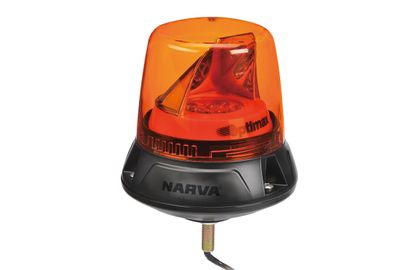

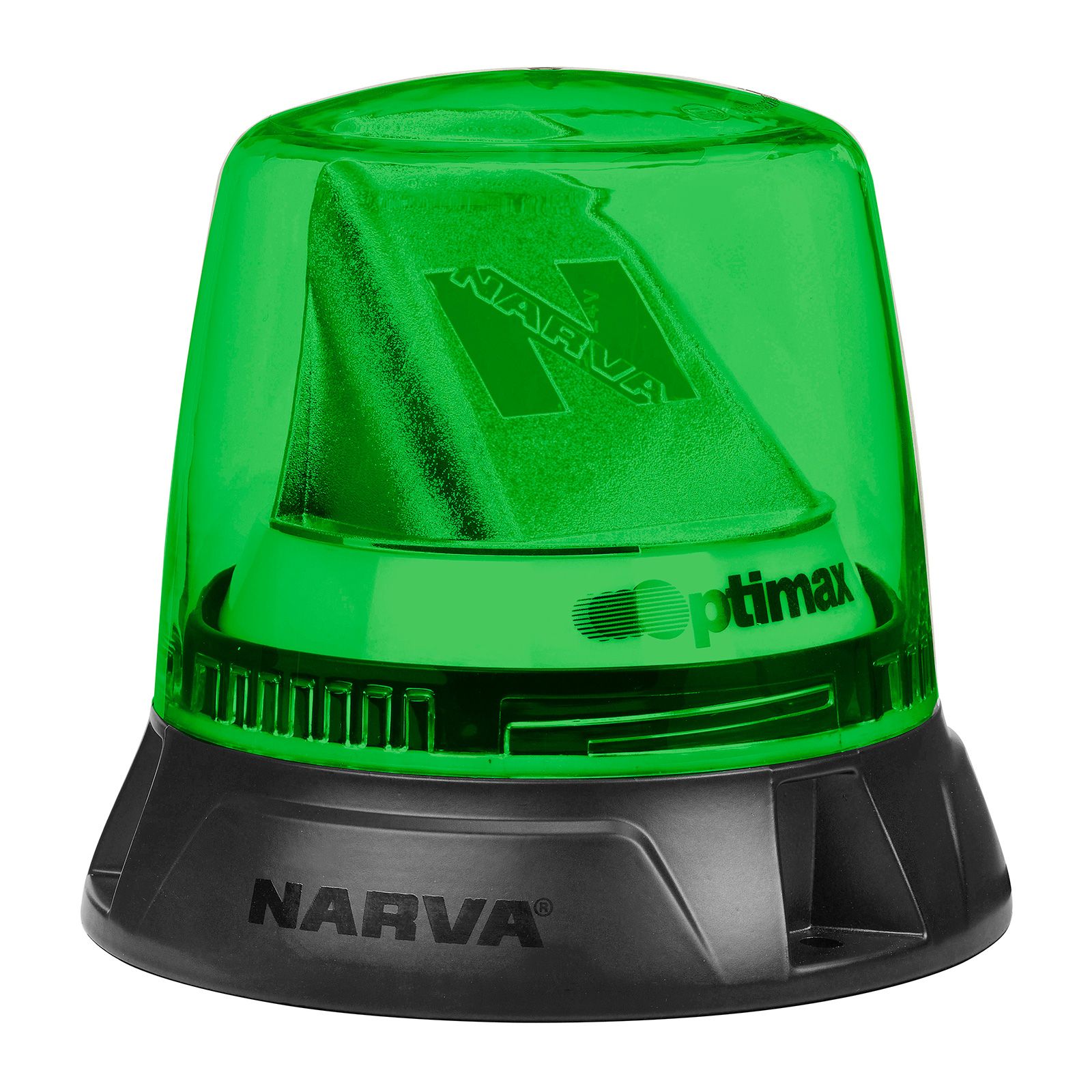

10-33V Optimax LED Rotating Beacon Flange (Amber/Green)
Part No. 85660AG
The Amber/Green Optimax LED beacon is Australia’s first dual colour LED rotating beacon. Whilst
there are many brands that offer dual colour strobes, none of these provide the smooth rotating
pattern of a true rotating beacon like Optimax LED. The dual amber/green output allows operators to
switch between the two colours for different applications, therefore eliminating the need for two
different beacons.
The Amber/Green Optimax LED beacon is Australia’s first dual colour LED rotating beacon. Whilst
there are many brands that offer dual colour strobes, none of these provide the smooth rotating
pattern of a true rotating beacon like Optimax LED. The dual amber/green output allows operators to
switch between the two colours for different applications, therefore eliminating the need for two
different beacons.
Features
Longer lasting
LED technology ensures no blown globes due to continued use
More reliable
Vibration resistant stepper motor & over voltage protection
More durable
Diecast aluminium base, virtually unbreakable lens & rated to IP67.
More visible
6 x 5W (30W) LED Output
Multiple applications
5 mounting options and Australia's first dual-colour LED beaconSpecifications
Technical Information
| INPUT VOLTAGE RANGE | 10-33V |
|---|---|
| CURRENT DRAW | 1A at 12V |
| LEDs | 6 x 5 watt high power LEDs |
| IP RATING | IP67 |
| OPERATING TEMPERATURE | -30° to 60° |
| SIZE | 139mm (height) x 154mm (diameter) |
| WEIGHT | 330g |
| BASE TYPE | Flange |
| ECE | 10R-06.22895 (R10) |
| OTHER | SAE J845 Class 1, W3-1 |
| OTHER | CISPR Class 3 |

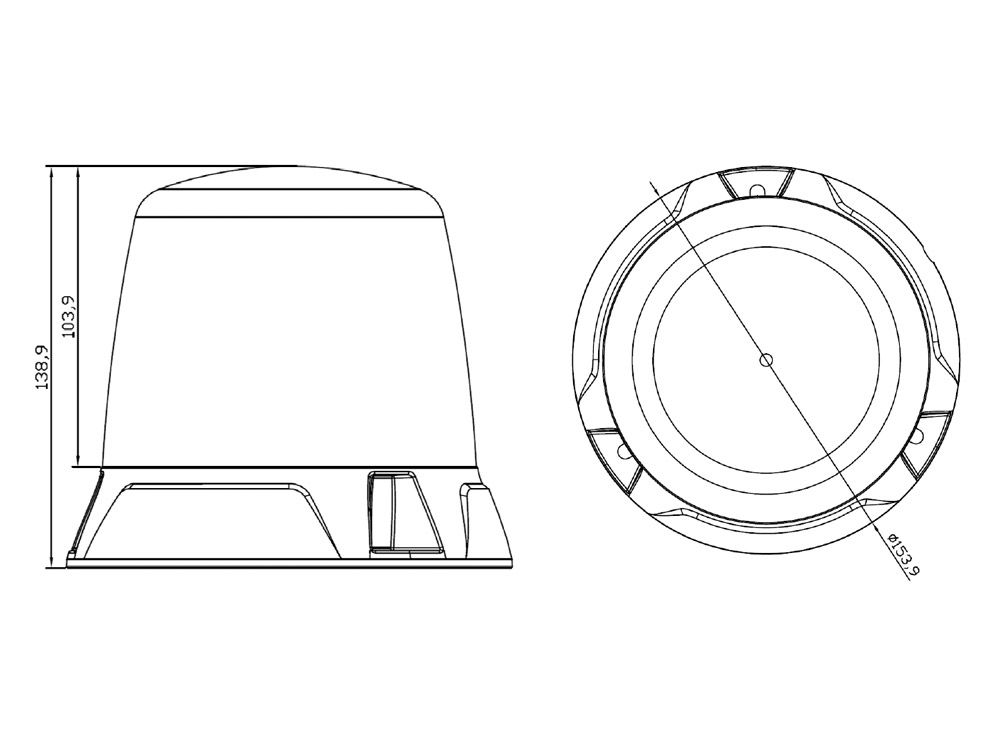

Dimensions
