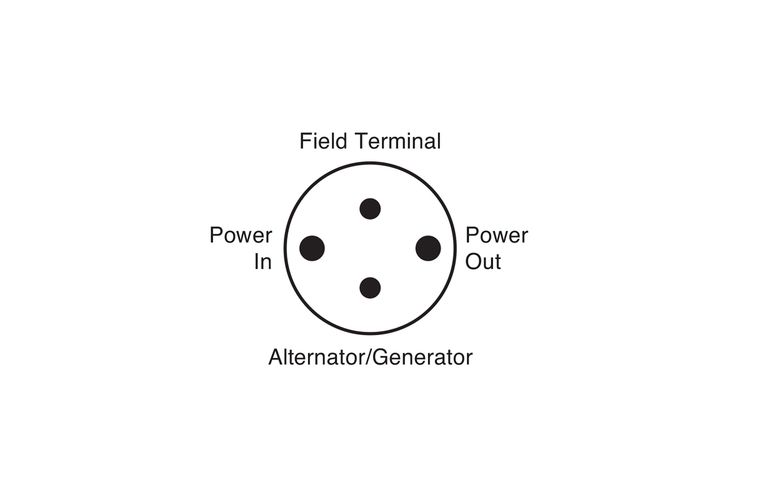

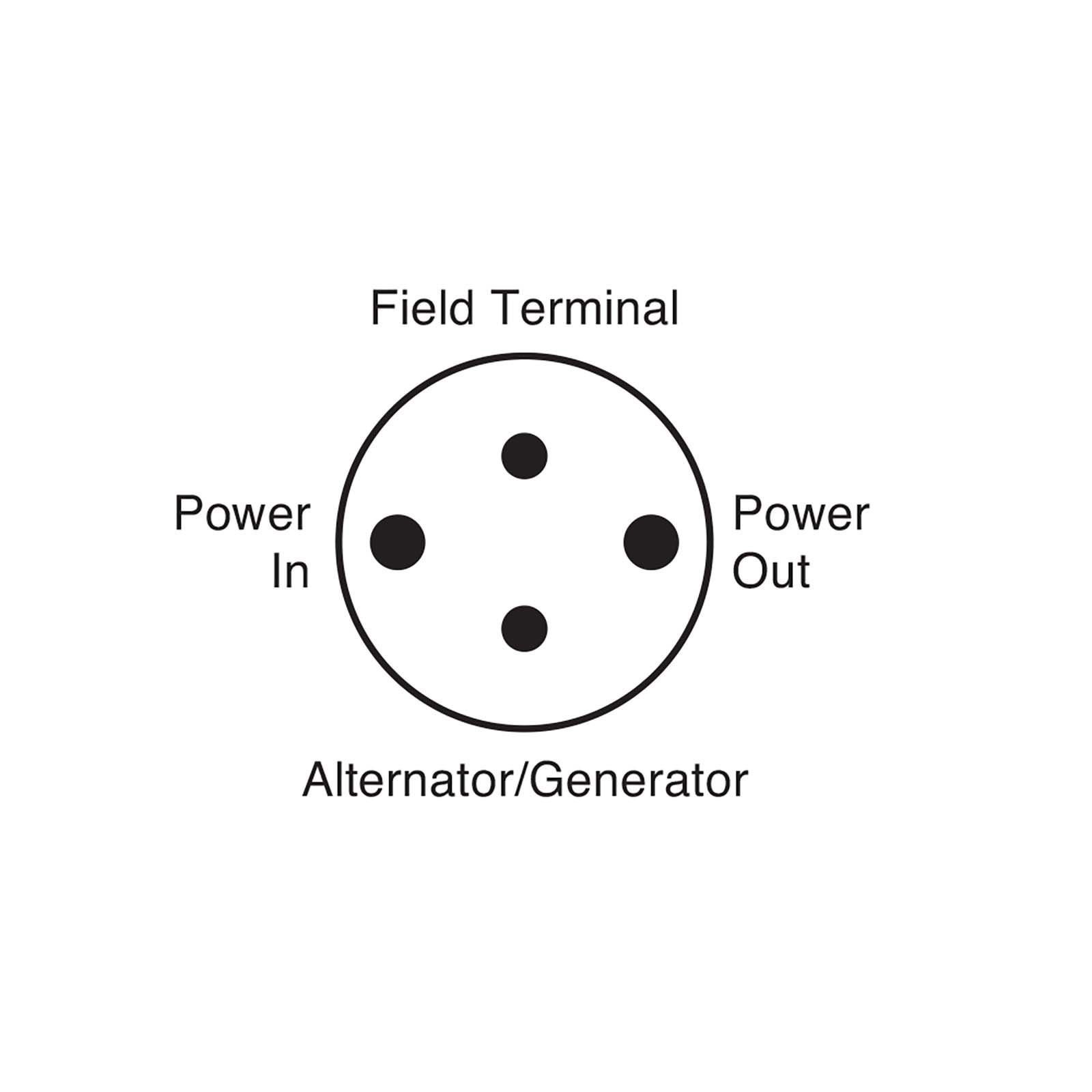

Battery Master Switch Lever Type with Indexing Post withAlternator/Generator Field Circuit
Part No. 61075
Indexing post helps align switch and prevent rotation. Mounting opening 19mm dia. Large
Terminals: 1000A at 12V for 20 seconds 500A at 24V for 20 seconds 180A at 12V continuous
load max. 90A at 24V continuous load max. Small Terminals: 20A at 12V continuous load
max. 10A at 24V continuous load max.
Indexing post helps align switch and prevent rotation. Mounting opening 19mm dia. Large
Terminals: 1000A at 12V for 20 seconds 500A at 24V for 20 seconds 180A at 12V continuous
load max. 90A at 24V continuous load max. Small Terminals: 20A at 12V continuous load
max. 10A at 24V continuous load max.
Specifications
Technical Information
CURRENT DRAW | Large Terminals 1000A @ 12V for 20 secs 500A @ 24V for 20 secs 180A @ 12V continuous load max 90A @ 24V continuous load max Small Terminals 20A @ 12V continuous load max 10A @ 24V continuous load max |
---|
