Automotive/Marine Battery Master Switch
Part No. 61044BL
Nickel plated with solid copper terminals for superior corrosion resistance. Ideal
for automotive and marine applications exposed to salt water and other harsh environmental
conditions (IP67). 1000A at 12V for 5 seconds 500A at 24V for 5 seconds 300A at 12V
continuous load maximum 150A at 24V continuous load maximum
Nickel plated with solid copper terminals for superior corrosion resistance. Ideal
for automotive and marine applications exposed to salt water and other harsh environmental
conditions (IP67). 1000A at 12V for 5 seconds 500A at 24V for 5 seconds 300A at 12V
continuous load maximum 150A at 24V continuous load maximum
Specifications
Technical Information
| CURRENT DRAW | 1000A at 12V for 5 seconds. 500A at 24V for 5 seconds. 300A at 12V continuous load maximum. 150A at 24V continuous load maximum |
|---|---|
| LEDs | 127 |
| IP RATING | IP67 |

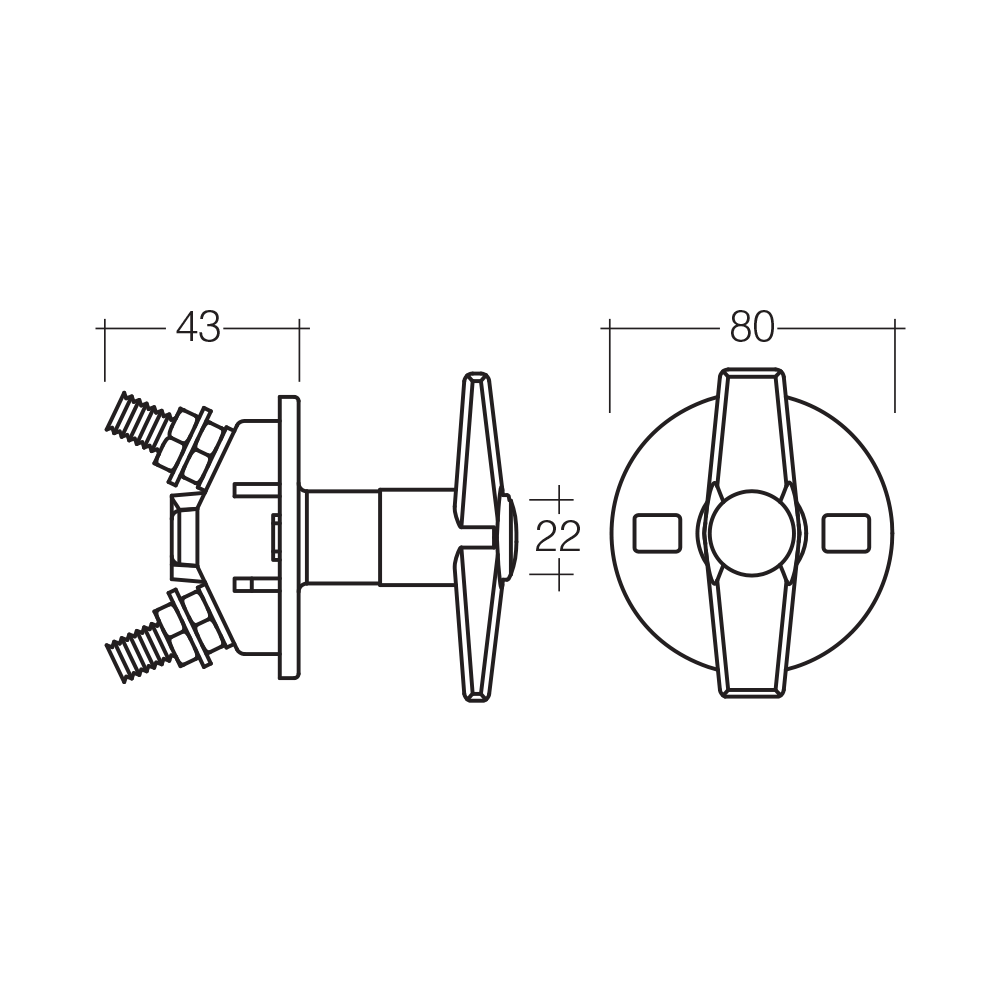

Dimensions
