Emergency Stop Switch with Rotating Release
Part No. 61030
Features a push-to-stop locking action with rotating release for easy reconnection.
Includes an optional yellow “Emergency Stop” ring for increased visibility. Fully
sealed (IP66) for external environments. 1000A at 12V for 5 seconds 500A at 24V for
5 seconds 150A at 12V continuous load maximum 75A at 24V continuous load maximum
Features a push-to-stop locking action with rotating release for easy reconnection.
Includes an optional yellow “Emergency Stop” ring for increased visibility. Fully
sealed (IP66) for external environments. 1000A at 12V for 5 seconds 500A at 24V for
5 seconds 150A at 12V continuous load maximum 75A at 24V continuous load maximum
Specifications
Technical Information
| CURRENT DRAW | 1000A at 12V for 5 seconds. 500A at 24V for 5 seconds. 150A at 12V continuous load maximum. 75A at 24V continuous load maximum |
|---|---|
| LEDs | 126 |
| IP RATING | IP66 |

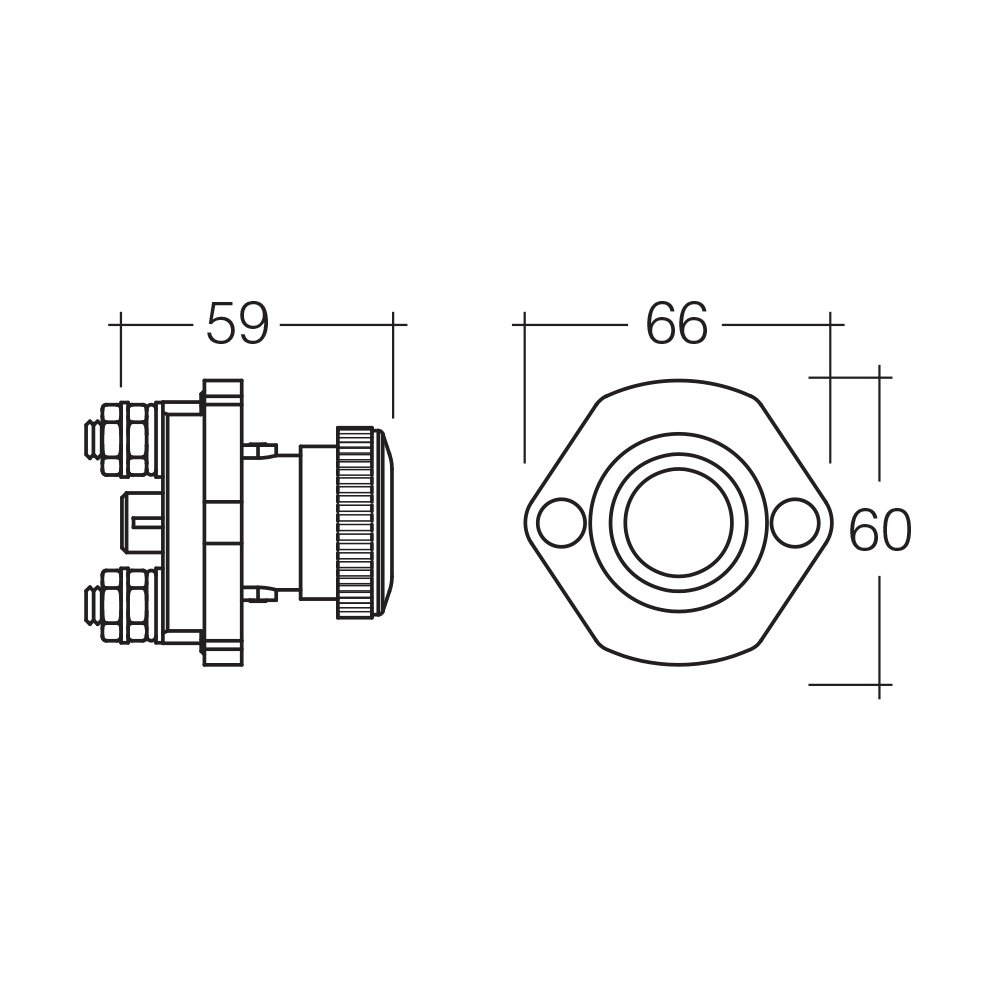

Dimensions
