Narva | Momentary (On)/Off/Momentary (On) Waterproof Heavy-Duty Toggle Switch

Momentary (On)/Off/Momentary (On) Waterproof Heavy-Duty Toggle Switch

Momentary (On)/Off/Momentary (On) Waterproof Heavy-Duty Toggle Switch

Part No. 60295BL
DPDT, Push on terminals Amperage rating 25A at 12V, 15A at 24V IP67 rating Mounting opening: 12mm dia.
Share this page

Technical Information

CURRENT DRAWAmperage rating 25A at 12V, 15A at 24V
LEDs38
LP RATINGIP67
OPERATING TEMPERATURE-40C to +85C

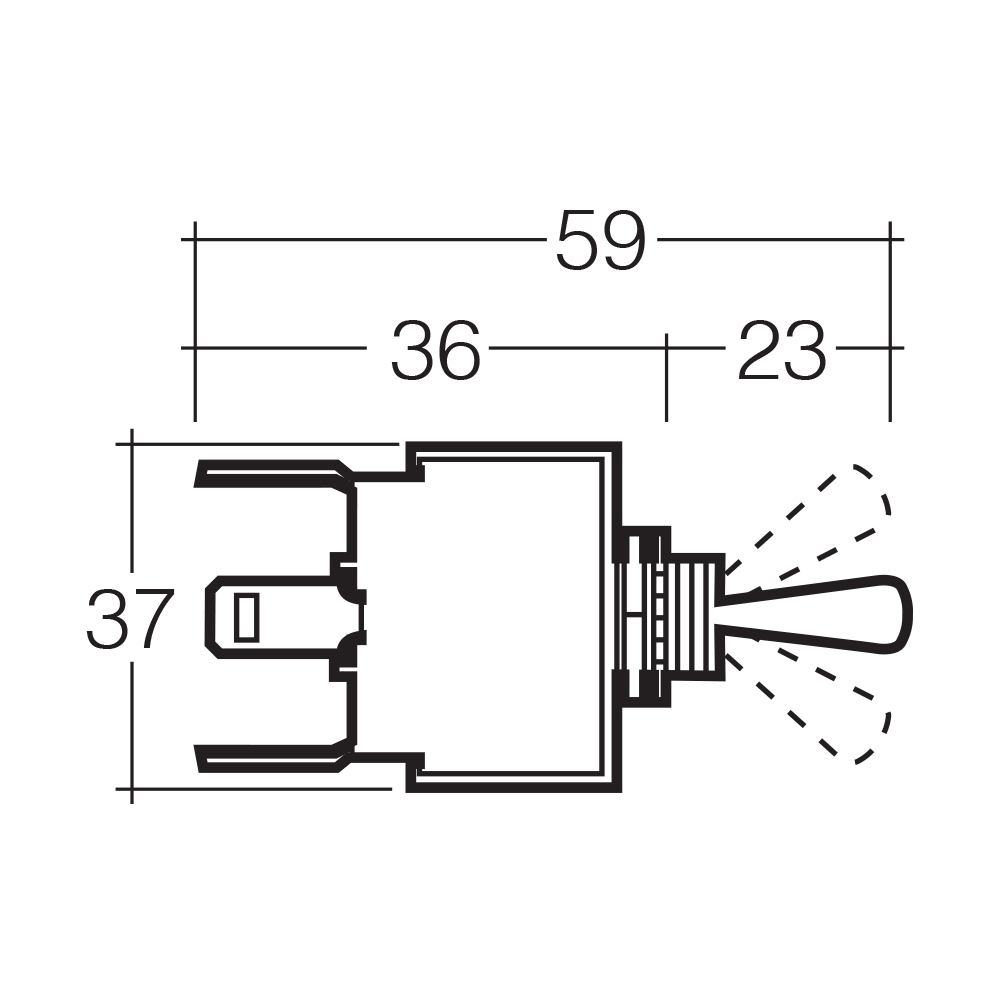

Drawings

Product Comprises of

1.Fully sealed with epoxy resin (IP67)
2.Integrated O-Ring seal
