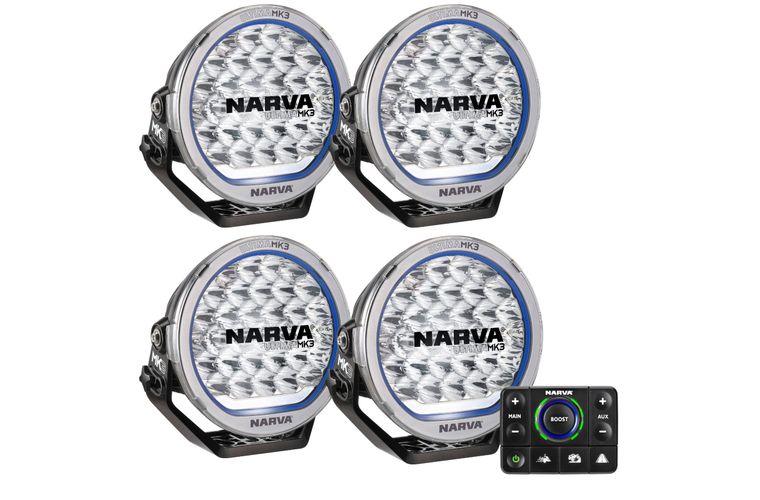

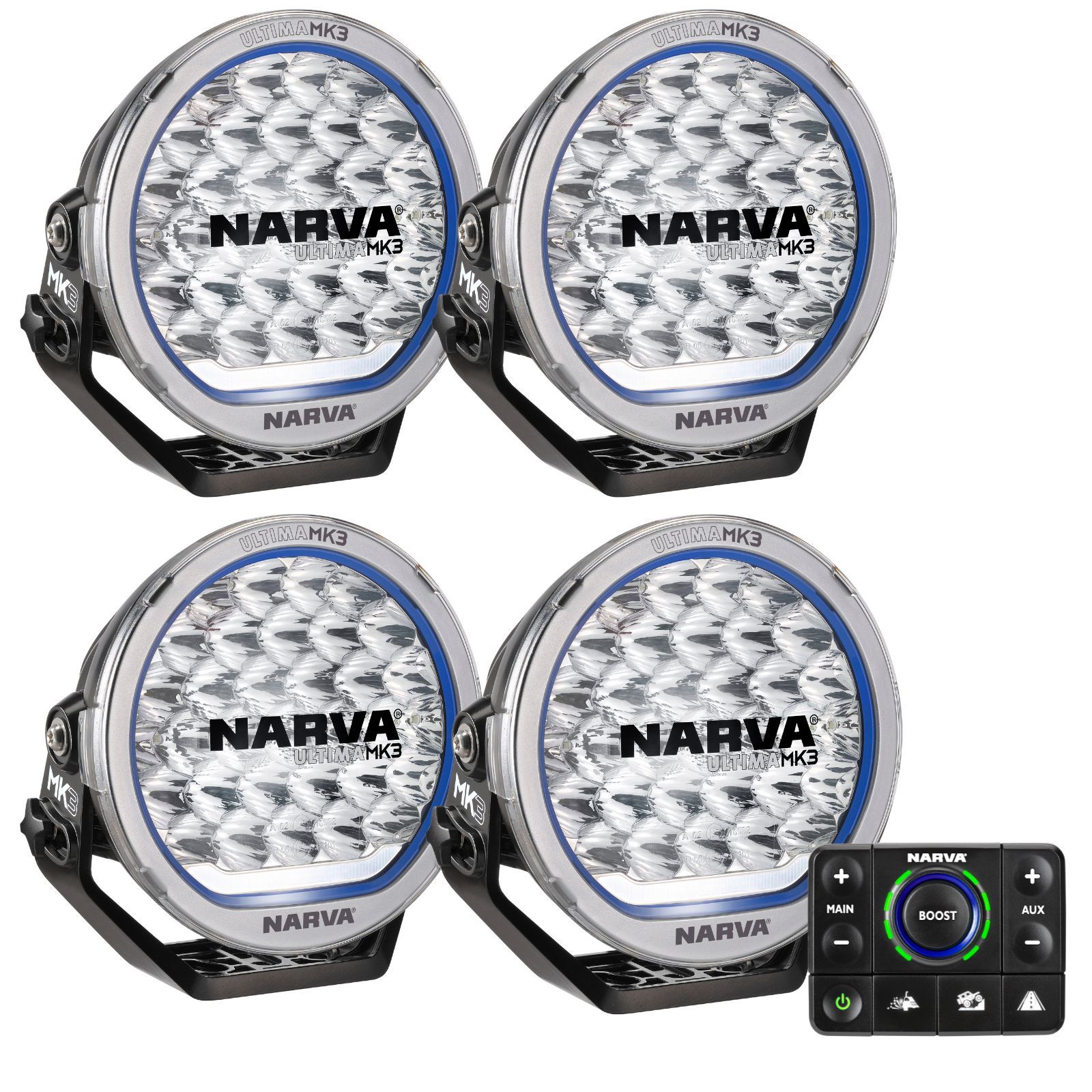

ULTIMA MK3 215 LED TRANSPORT DRIVING LIGHTS KIT - HYBRID
Part No. 71748
RRP $3,700.00 AUD Inc GST
RRP $3,700.00 AUD Inc GST
Designed for large vehicles running 4 lights. Allows independent control of spot and hybrid beams
for true pattern customisation. Avoid road sign flare without compromising distance. Quicker and
easier installation.
Designed for large vehicles running 4 lights. Allows independent control of spot and hybrid beams
for true pattern customisation. Avoid road sign flare without compromising distance. Quicker and
easier installation.
Features
The Future of Vision
Up to 20% brighter with 100% more control, the NEW 215 Spot Beam offers increased distance, while the upgraded Hybrid Beam pattern delivers enhanced width..jpg)
Engineered for durability
The pressure die-cast housing is engineered to last no matter the conditions. It is fully sealed with an IP68 + IP69K rating and features an overmolded Deutsch® connector on a flying lead. The UV-resistant hard-coating and virtually unbreakable polycarbonate lenses and lens protectors ensure that the lights maintain their appearance over time, preventing yellowing and resisting damage from stones and other debris.
Engineered for control
The use of the Ultima Connect+ Controller allows total control over beam shape. Users can select between more distance, more spread, or both, depending on their driving conditions. It also enables independent control of the Hybrid and Spot beams, as well as Ultima Light bars, to avoid road sign flare.
Engineered for
you
Customize the lamps to suit any vehicle by choosing from Satin or Black bezels and any one of seven color trims—Narva Blue, Yellow, Red, Black, Electric Blue, Hyper Green, and Slate Grey—all at no extra charge via redemption. Additionally, select either Stealth or Selective Yellow lens covers.Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | 71A at 12V |
| LUMENS | 73,680Lm/78,338Lm (Boost) |
| IP RATING | IP68 + IP69K |
| OPERATING TEMPERATURE | -40°C to +65°C |
| COLOUR TEMPERATURE | 5700°K |
Beam Pattern
-01.png)
Downloads
Get the latest information
ULTIMA MK3 215 LED TRANSPORT DRIVING LIGHTS KIT - HYBRID
Download Instructions Download Instructions Download Brochure Download Spec SheetMultimedia
