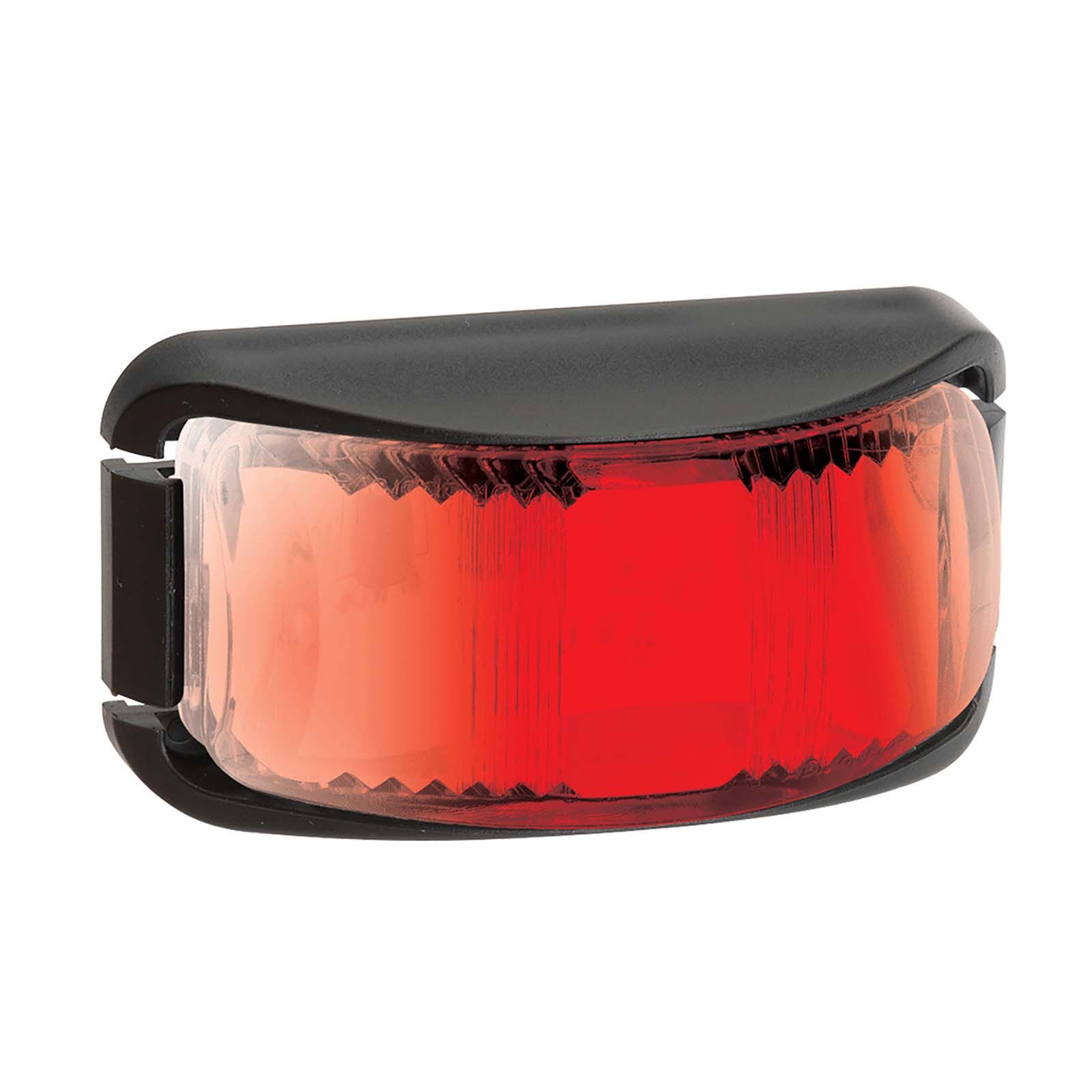

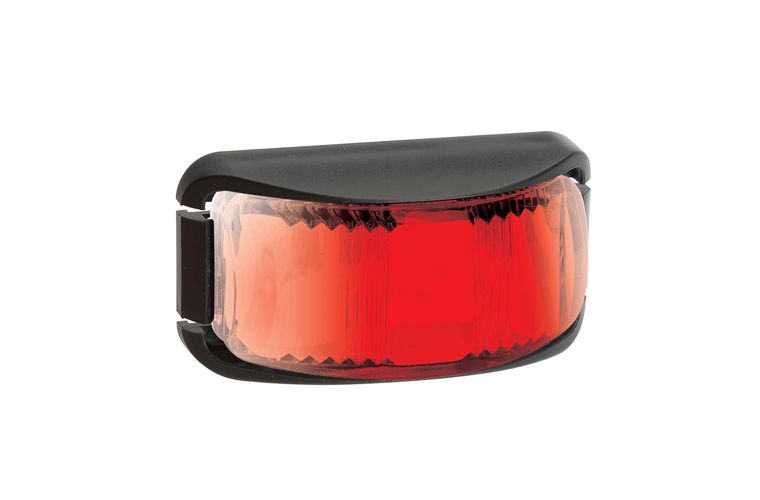

Model 16 L.E.D lamps feature multi-voltage circuitry to suit 12 or 24 volt operation
and cover a wide range of ADR applications using one common lamp body.
Specifications
Technical Information
INPUT VOLTAGE RANGE | 9-33 Volt |
---|---|
CURRENT DRAW | 0.02A |
LEDs | Rated to 100,000 hours of L.E. |
IP RATING | IP66 and IP68 |
SIZE | 74 x 38mm |
CANDELA RATING | 46 |
ADR | Vertical: 49/00 30945, Horizontal: 49/00 30946 |
COMPRISES | 91630; 91690; |
