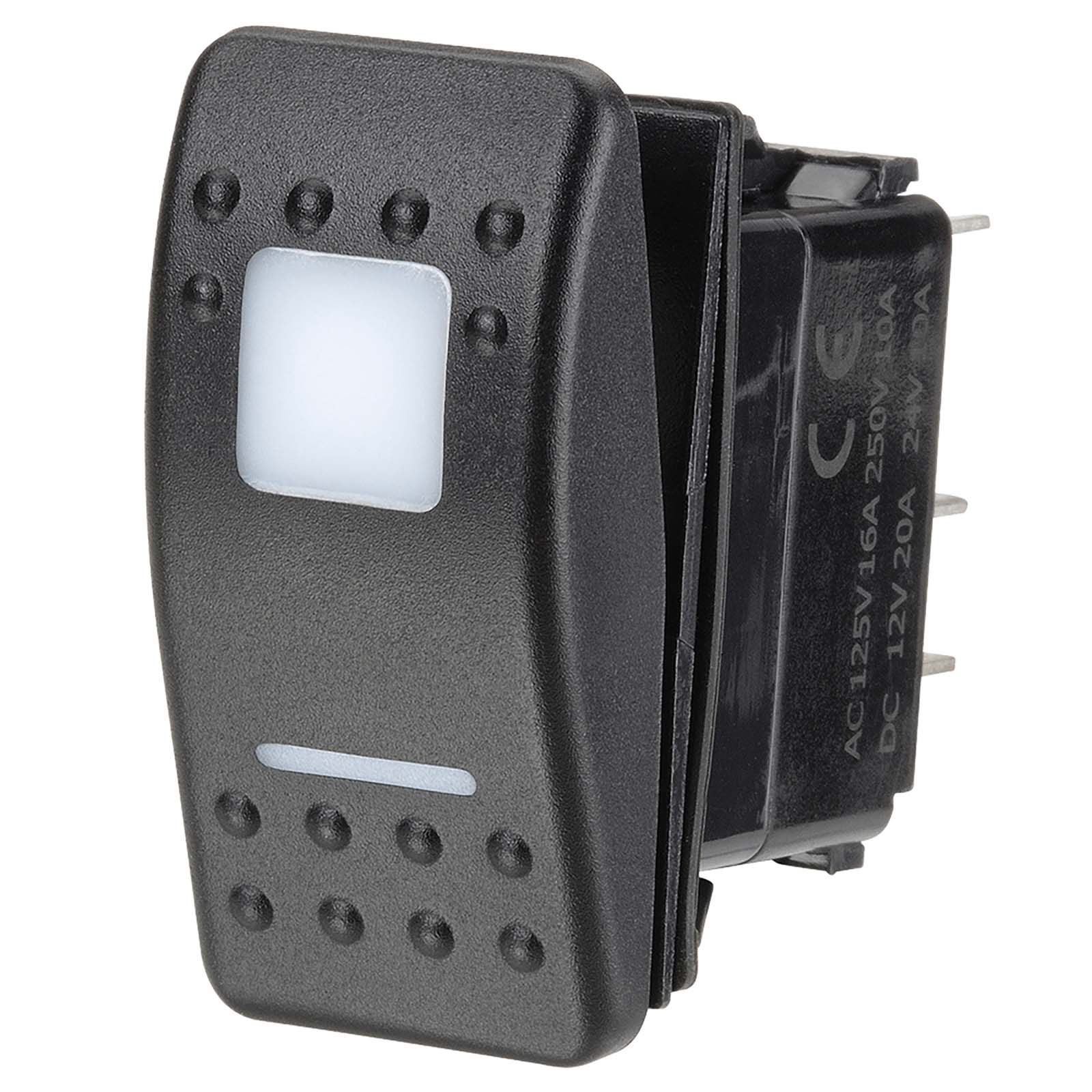

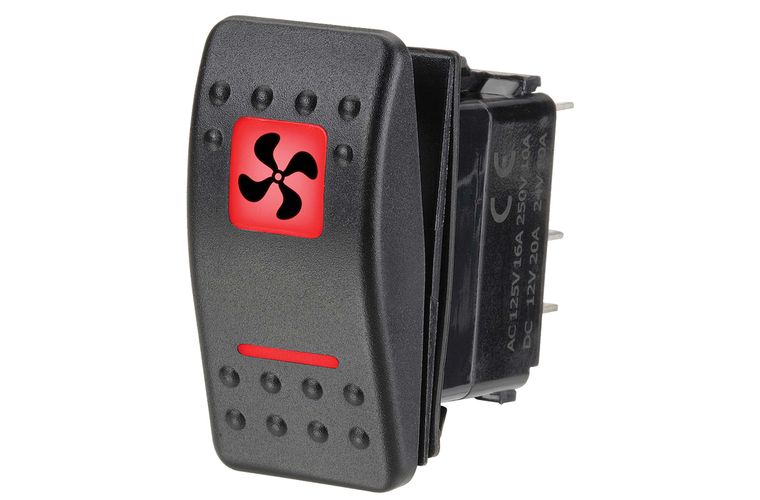

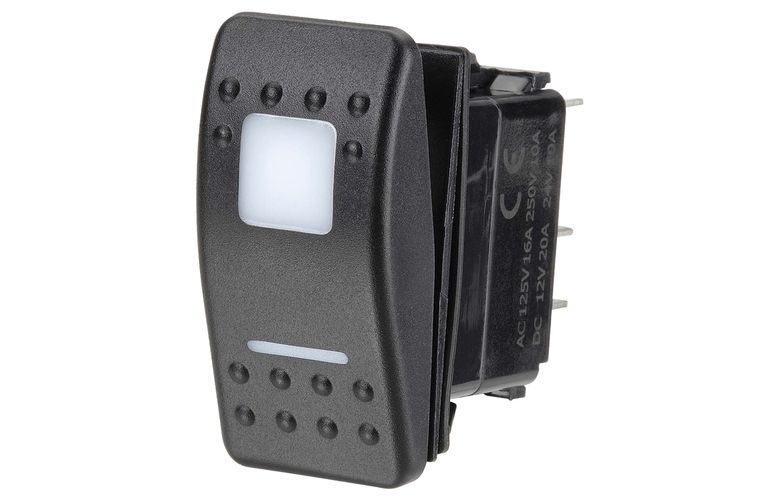

12/24V Off/On LED Illuminated Sealed Rocker Switch (Red)
Part No. 63158BL
RRP $50.90 AUD Inc GST
RRP $50.90 AUD Inc GST

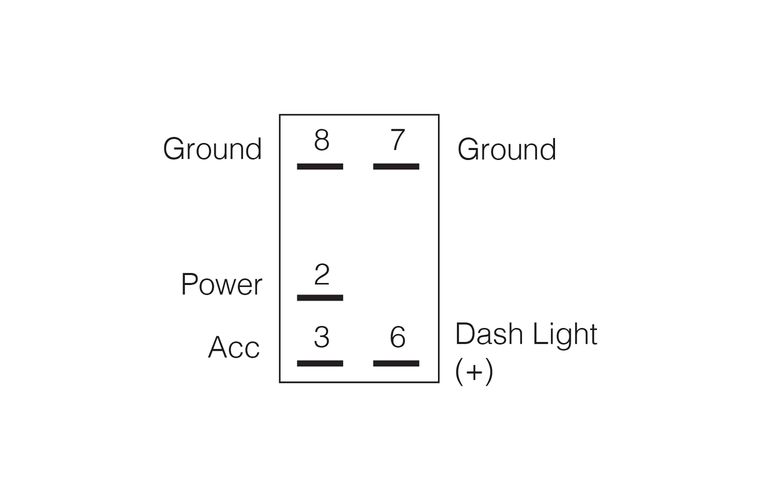

SPST, push-fit design with push on terminals, ‘Dash Light’ & ‘On’ illumination
Amperage rating 20A at 12V, 10A at 24V Mounting opening: 37.5 x 21mm
SPST, push-fit design with push on terminals, ‘Dash Light’ & ‘On’ illumination
Amperage rating 20A at 12V, 10A at 24V Mounting opening: 37.5 x 21mm
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 12/24 Volt |
|---|---|
| CURRENT DRAW | Amperage rating 20A at 12V, 10A at 24V |
| SIZE | Mounting opening: 37.5 x 21mm |
Dimensions
