10–30 VOLT MODEL 30 L.E.D SIDE MARKER OR FRONT END OUTLINE MARKER (AMBER)
10–30 VOLT MODEL 30 L.E.D SIDE MARKER OR FRONT END OUTLINE MARKER (AMBER)
Part No.
93052
18
Model 30 L.E.D lamps are only 50mm in diameter and can be mounted independently with
the use of surface mount brackets and grommets giving the lamp a broad range of uses
and applications.
Share this page
Vinyl grommet
Virtually unbreakable polycarbonate lens
Rated to 100,000 hours of L.E.D life
Plug and leads
Technical Information
| INPUT VOLTAGE RANGE | 10–30 Volt |
|---|---|
| CURRENT DRAW | 0.05A |
| SIZE | Grommet hole 58.7mm diameter |
| CANDELA RATING | 37 |
| ADR | 45/00 31719, 49/00 31725, 74/00 31718 |

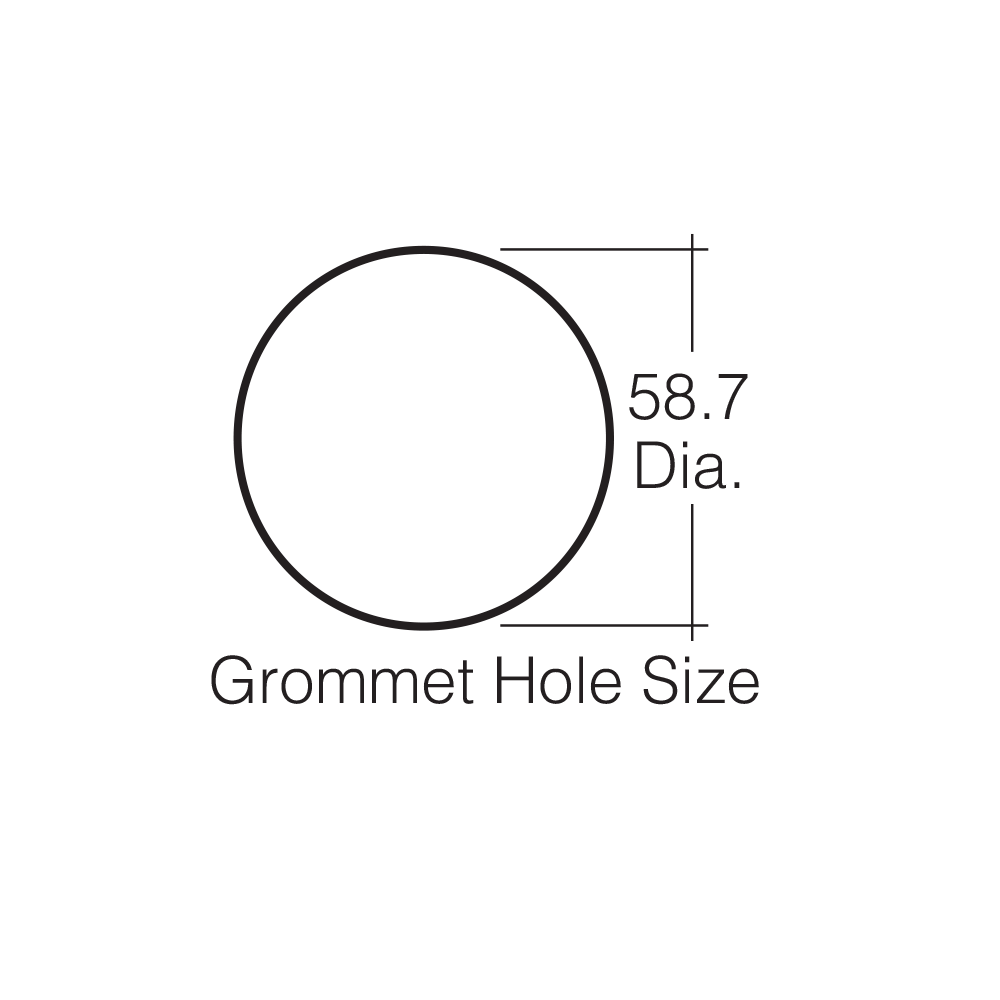

Drawings
Product Comprises of
| 1. | 93050 |
|---|---|
| 2. | 93080 |
| 3. | 93095 |
