Narva | 10–30 VOLT MODEL 18 L.E.D REAR END OUTLINE MARKER LAMP (RED)

10–30 VOLT MODEL 18 L.E.D REAR END OUTLINE MARKER LAMP (RED)

10–30 VOLT MODEL 18 L.E.D REAR END OUTLINE MARKER LAMP (RED)

Part No. 91808
86 Model 18 lamps are approved to the side marker ADR 74/00 that allows a side marker to be all amber and outward facing. This has allowed us to develop and offer lamps that are ultra slim and incorporate in-built, ADR 47/00 approved retro reflectors. This saves the additional cost and space required to fit a reflector and makes the
Share this page
Low profile surface mounted lamp - just 9mm Gasket and 0.5m hard wired cable In-built retro reflector Rated to 100,000 hours of L.E.D life

Technical Information

INPUT VOLTAGE RANGE10-30 Volt
CURRENT DRAW0.06A
LP RATINGIP66 and IP68
SIZE114 x 41mm
CANDELA RATING24
ADR47/00 29082, 49/00 29081

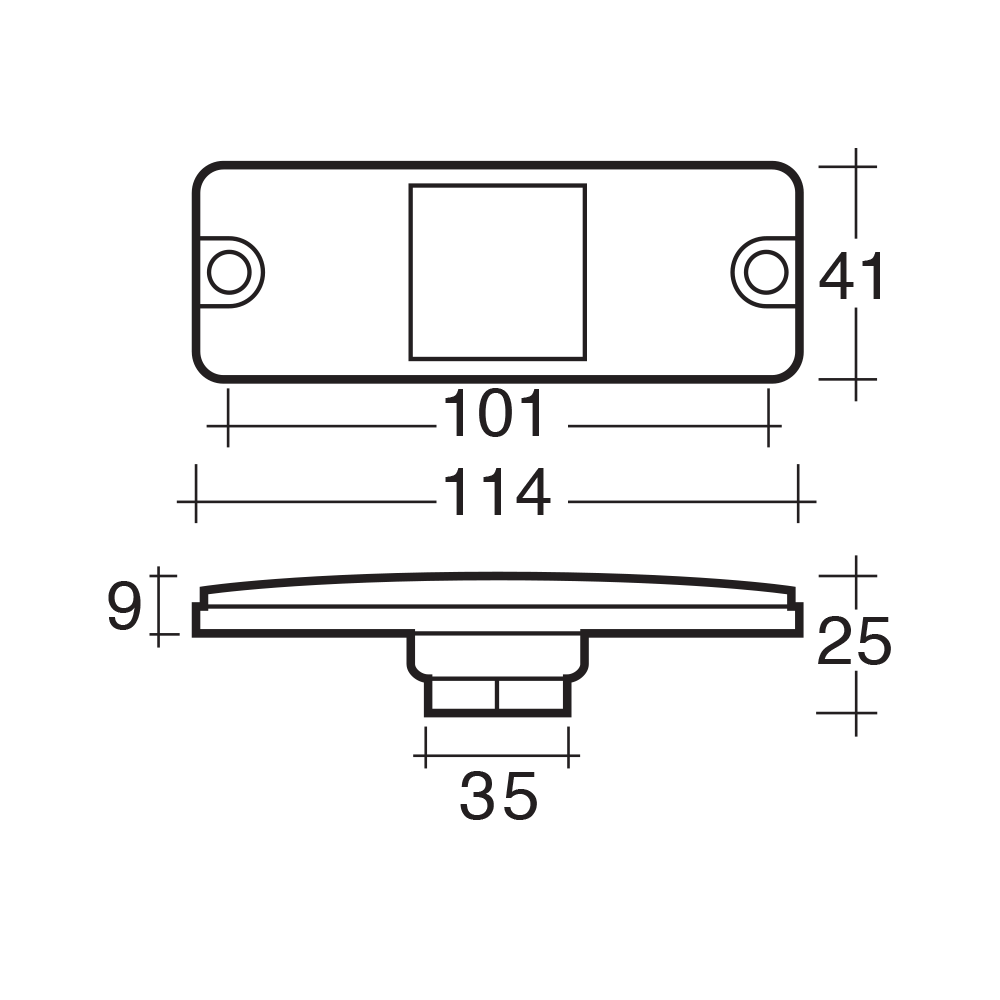

Drawings

Product Comprises of

1.87112
