10–30 VOLT MODEL 18 LED SIDE MARKER EXTERNAL CABIN OR FRONT END OUTLINE MARKER LAMP

Part No. 91800
86 Model 18 lamps are approved to the side marker ADR 74/00 that allows a side marker to be all amber and outward facing. This has allowed us to develop and offer lamps that are ultra slim and incorporate in-built, ADR 47/00 approved retro reflectors. This saves the additional cost and space required to fit a reflector and makes the
86 Model 18 lamps are approved to the side marker ADR 74/00 that allows a side marker to be all amber and outward facing. This has allowed us to develop and offer lamps that are ultra slim and incorporate in-built, ADR 47/00 approved retro reflectors. This saves the additional cost and space required to fit a reflector and makes the

Specifications

Technical Information
INPUT VOLTAGE RANGE10-30 Volt
CURRENT DRAW0.06A
LP RATINGIP66 and IP68
SIZE114 x 41mm
CANDELA RATING50
ADR45/00 29503, 47/00 29078, 49/00 29507, 74/00 29077

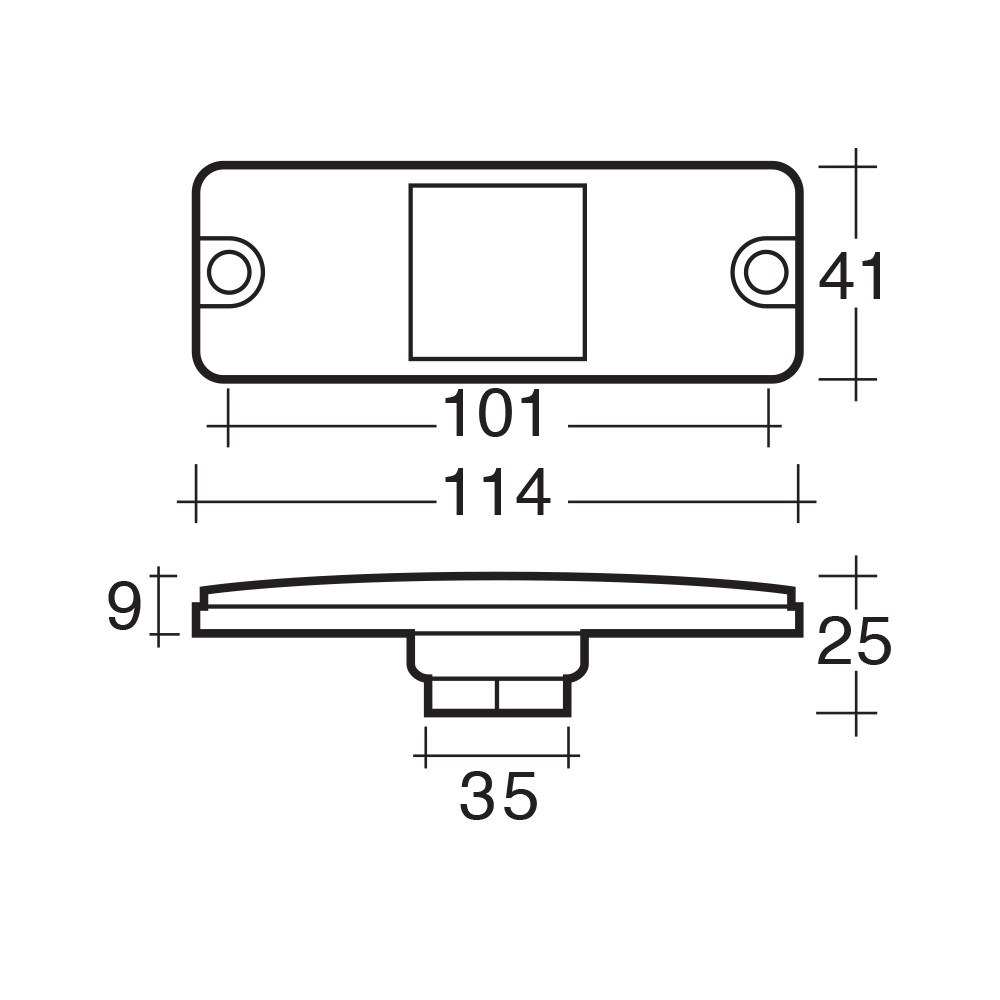

Dimensions
