10–33 VOLT MODEL 14 L.E.D FRONT END OUTLINE MARKER LAMP (WHITE)
10–33 VOLT MODEL 14 L.E.D FRONT END OUTLINE MARKER LAMP (WHITE)
Part No.
91414W
98
Model 14 L.E.D lamps possess all the functions of their larger counterpart, Model 16.
Noticeably smaller in size, these compact economical lamps are simple in construction
and ideal for campers, caravans, trailers and rigid body trucks. They feature multi-voltage
circuitry to suit 12 or 24 volt operation and hard-wired cable.
Share this page
0.5m hard wired cable
Oval white deflector mounting base
Rated to 100,000 hours of L.E.D life
Technical Information
| INPUT VOLTAGE RANGE | 10-30 Volt |
|---|---|
| CURRENT DRAW | 0.04A |
| LP RATING | IP66 and IP68 |
| SIZE | 90 x 45mm |
| CANDELA RATING | 11 |
| ADR | 49/00 41910 |

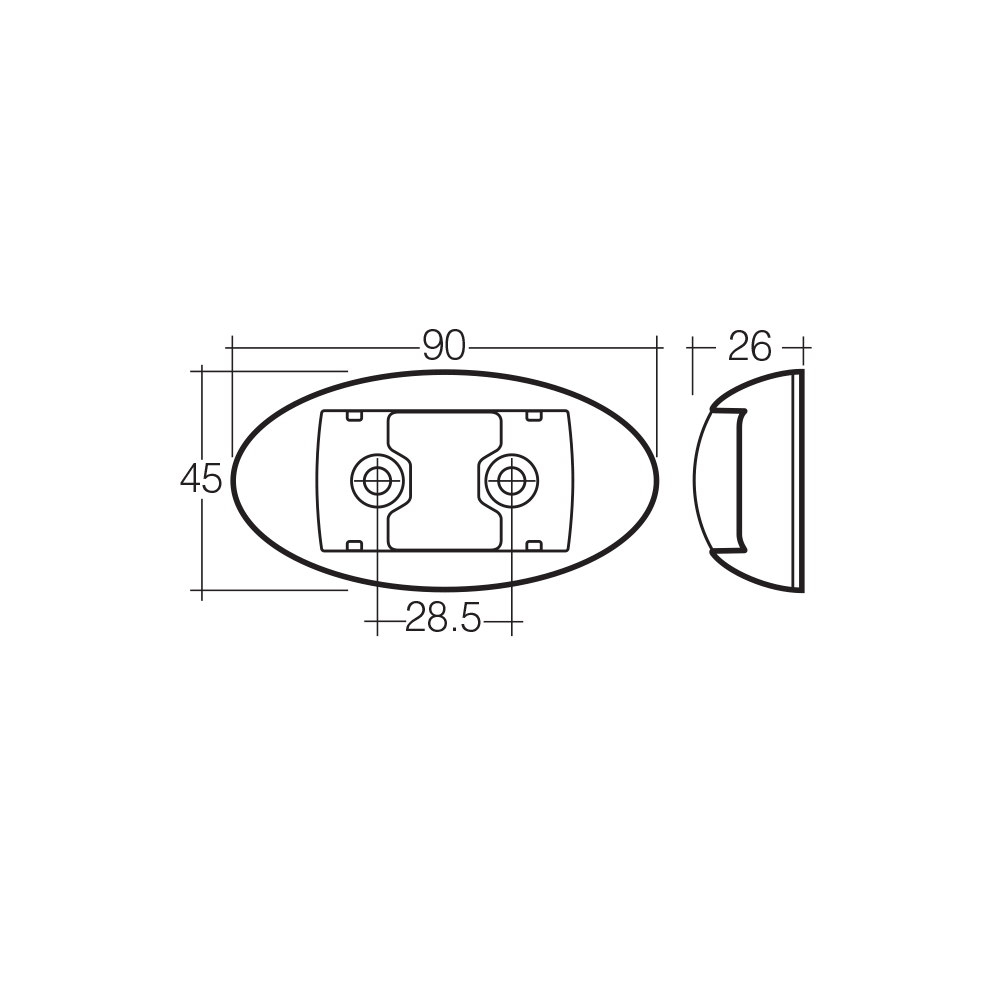

Drawings
Product Comprises of
| 1. | 91410 |
|---|---|
| 2. | 91495 |
