Heavy-Duty L.E.D Work Lamp Bar Flood Beam - 14400 lumens
Heavy-Duty L.E.D Work Lamp Bar Flood Beam - 14400 lumens
Part No.
72764
A unique design with unrivalled performance, these light bars utilise the latest in high output
L.E.D technology currently available. Fully sealed (IP68) with a super tough extruded aluminium
housing, ideal for the most gruelling work environments
Share this page
Technical Information
| INPUT VOLTAGE RANGE | 9-32V |
|---|---|
| CURRENT DRAW | 9.5A at 12V, 4.75A at 24V |
| LUMENS | 14400 |
Drawings

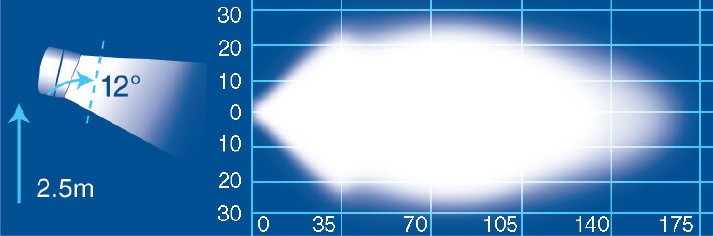

Beam Pattern
Product Comprises of
| 1. | 16 x 10 watt high powered Cree® L.E.Ds |
|---|---|
| 2. | Virtually unbreakable polycarbonate lens |
| 3. | 250mm pre-wired lead with Deutsch® connector |
| 4. | Cross slider multi-angle mounting bracket |
| 5. | Current draw: 9.5A at 12V, 4.75A at 24V |
