9-36V L.E.D Load Light with mirror mounting kit - Spot Beam
9-36V L.E.D Load Light with mirror mounting kit - Spot Beam
Part No.
72700
This powerful 25W L.E.D lamp is ideal for use as a Load Light commonly mounted on the mirror frame
of a truck to illuminate the side and load of a trailer including multi-trailer combinations. The
lamp is capable of producing 1 lux of light at a distance of 160m. The narrow beam also minimises
glare for driver safety and comfort
Share this page
Technical Information
| INPUT VOLTAGE RANGE | 9-36V |
|---|---|
| CURRENT DRAW | 1.7A at 12V, 0.85A at 24V |
| LUMENS | 1700 |
| SIZE | 86mm diameter |
Drawings

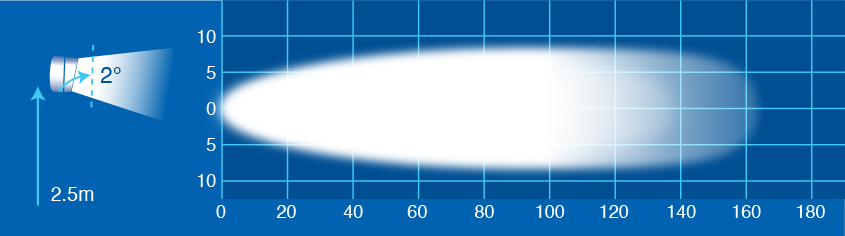

Beam Pattern
Product Comprises of
| 1. | Utilises a powerful 25 watt Cree® L.E.D |
|---|---|
| 2. | Includes a mirror mounting bracket |
| 3. | Tough die cast alloy housing |
| 4. | Narrow L.E.D beam minimises glare and maximises safety |
| 5. | Fully sealed (IP68) |
| 6. | Reverse polarity and surge protected |
