Maxim 180/85 Yellow Fog Lamp
Part No. 72255
12 Volt 55W Rectangular 180 x 85mm Maxim 180/85 is an ideal size in a rectangular
lamp suitable for a wide range of applications. Made to the exacting standards
and quality of the ECE requirements Maxim outshines other lamps of similar size.
All lamps can be upright and pendant mounted and include contoured see through lens
protectors.
12 Volt 55W Rectangular 180 x 85mm Maxim 180/85 is an ideal size in a rectangular
lamp suitable for a wide range of applications. Made to the exacting standards
and quality of the ECE requirements Maxim outshines other lamps of similar size.
All lamps can be upright and pendant mounted and include contoured see through lens
protectors.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 12V |
|---|---|
| POWER | 55W |
| SIZE | 180 x 85mm |
| ADR | 50/00 E9-B-03.125 |
Beam Pattern

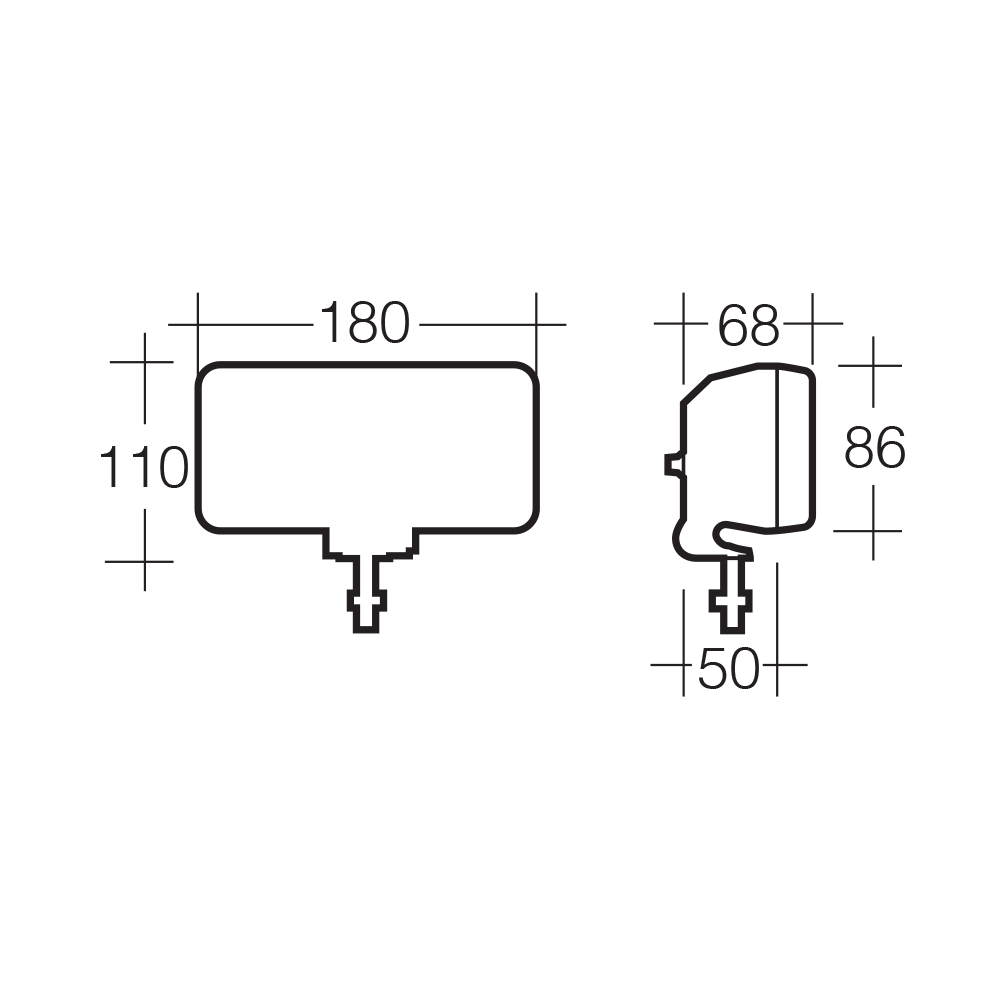

Dimensions
