Maxim 180/85 Driving Lamp Kit

Maxim 180/85 Driving Lamp Kit

Part No. 72250
12 Volt 100W Rectangular 180 x 85mm Maxim 180/85 is an ideal size in a rectangular lamp suitable for a wide range of applications. Made to the exacting standards and quality of the ECE requirements Maxim outshines other lamps of similar size. All lamps can be upright and pendant mounted and include contoured see through lens protectors.
Share this page

Technical Information

INPUT VOLTAGE RANGE12V
POWER100W
SIZE180 x 85mm
ADR46/00 E9-HR-00.1071 (ADR approved only when fitted with 55W globe)

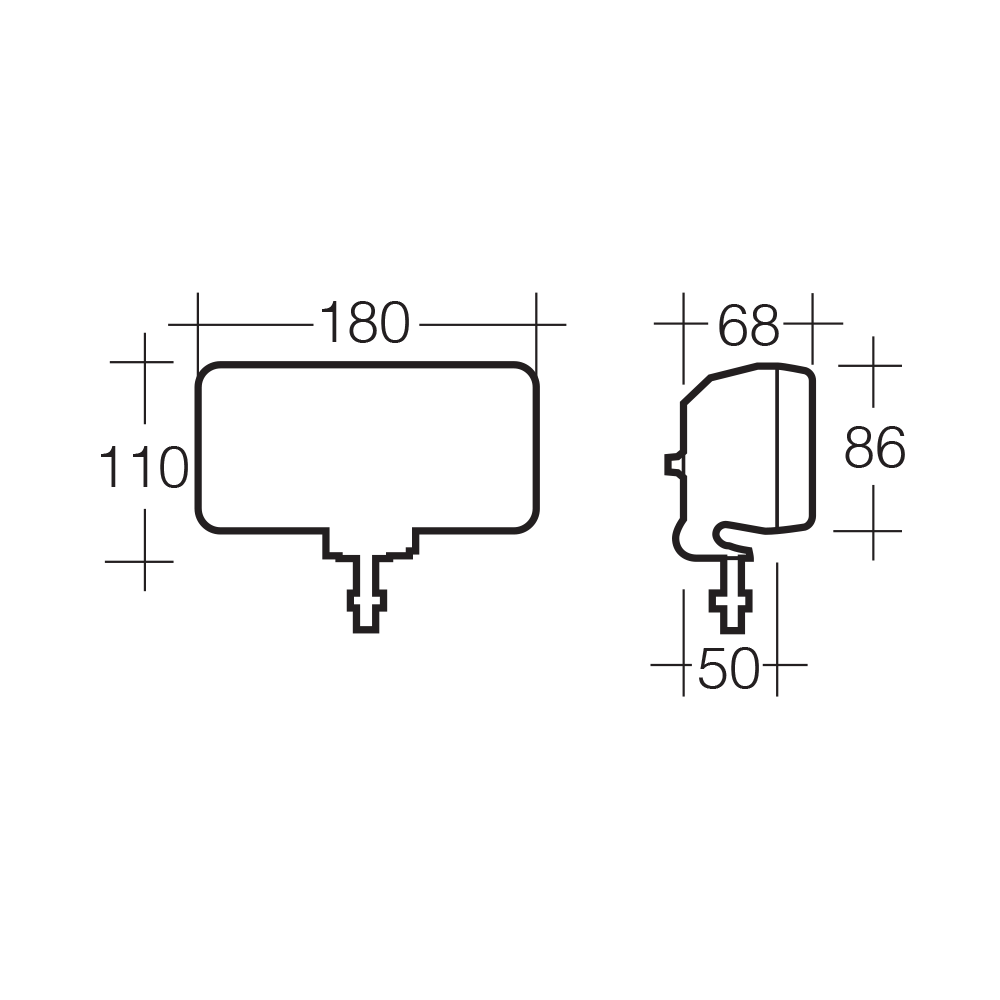

Drawings

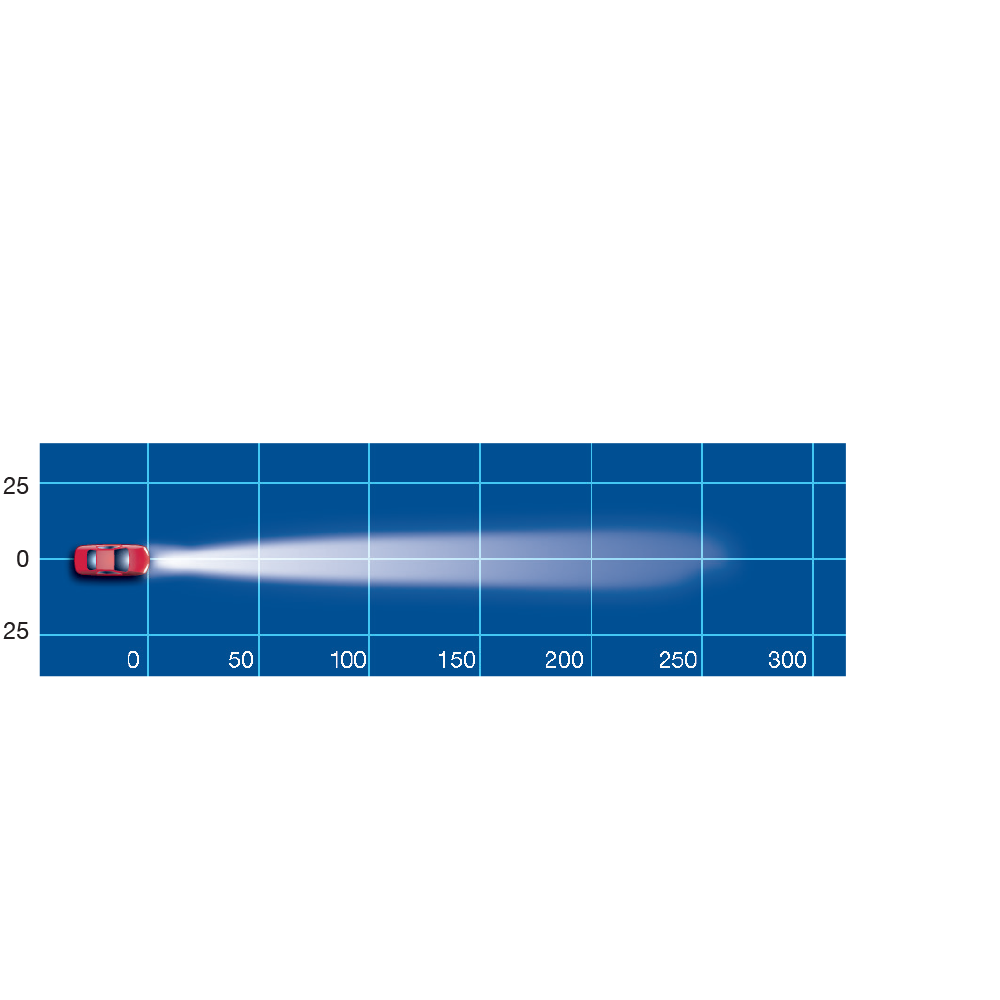

Beam Pattern

Product Comprises of

1.2 x driving lamps (P/No. 72247)
2.2 x see through lens protectors (P/No. 72204BL)
3.2 x 12V H3 100W globes (P/No. 48351)
4.1 x relay (P/No. 72386)
5.1 x toggle switch (P/No. 60044)
6.1 x terminal and wiring pack
