Maxim 180/85 Driving Lamp
Part No. 72247
12 Volt 100W Rectangular 180 x 85mm Maxim 180/85 is an ideal size in a rectangular
lamp suitable for a wide range of applications. Made to the exacting standards
and quality of the ECE requirements Maxim outshines other lamps of similar size.
All lamps can be upright and pendant mounted and include contoured see through lens
protectors.
12 Volt 100W Rectangular 180 x 85mm Maxim 180/85 is an ideal size in a rectangular
lamp suitable for a wide range of applications. Made to the exacting standards
and quality of the ECE requirements Maxim outshines other lamps of similar size.
All lamps can be upright and pendant mounted and include contoured see through lens
protectors.
Specifications
Technical Information
INPUT VOLTAGE RANGE | 12V |
---|---|
POWER | 100W |
SIZE | 180 x 85mm |
ADR | 46/00 E9-HR-00.1071 (ADR approved only when fitted with 55W globe) |
COMPRISES | Includes a 12V H3 100W globe (P/No. 48351); |

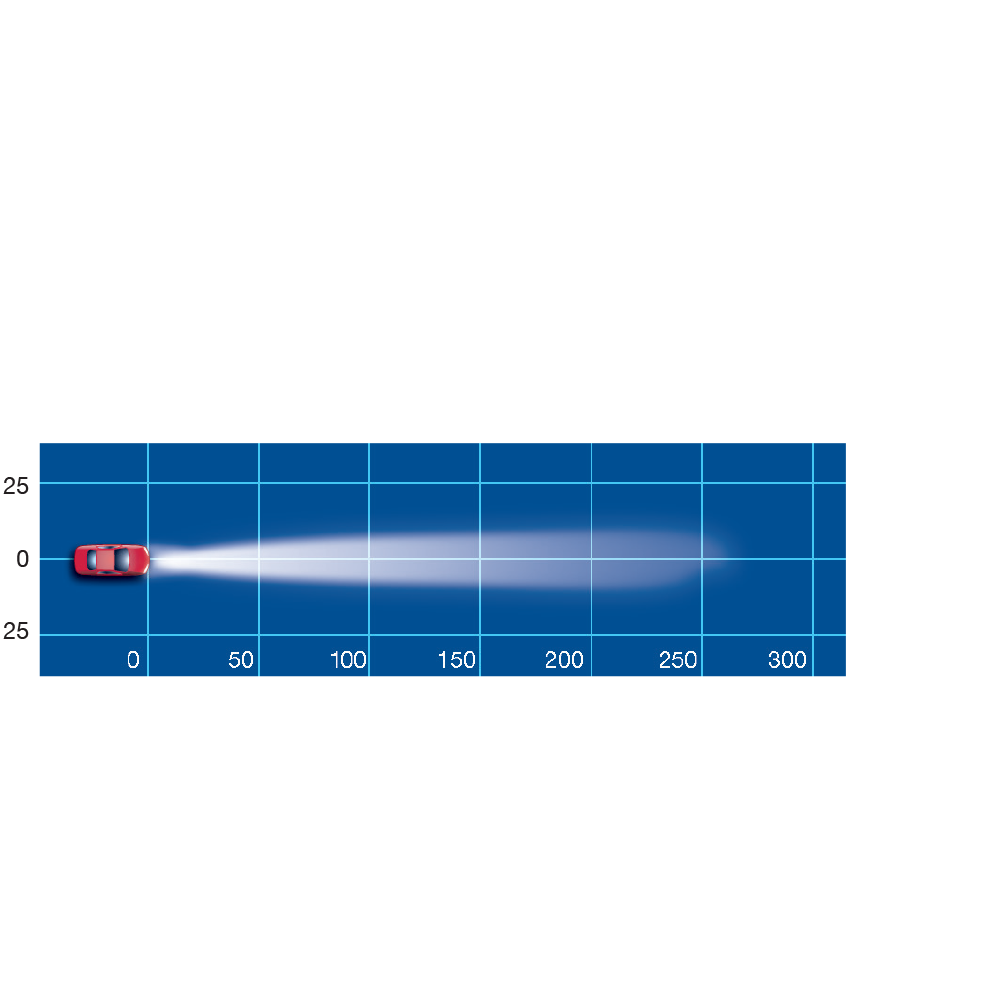

Beam Pattern

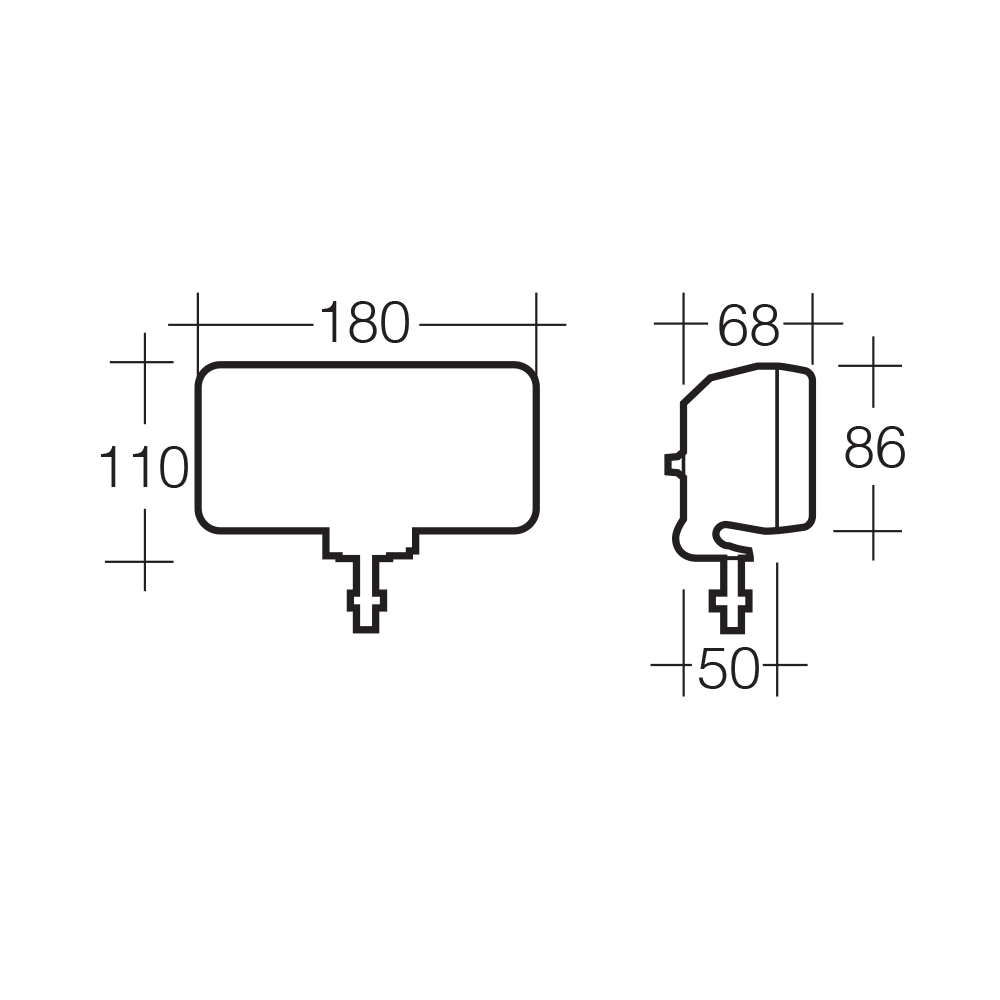

Dimensions
