Ultra Compact Driving Lamp Kit

Ultra Compact Driving Lamp Kit

Part No. 72230
12 Volt 100W Rectangular 150 x 85mm Just 54mm deep the Ultra Compact driving and fog lamps are designed with the globe vertically positioned to minimise the depth of the lamp without reducing performance. The slimline lamps can be upright or pendant mounted and utilise a specially treated glass for use with 100W globes.
Share this page

Technical Information

INPUT VOLTAGE RANGE12V
POWER100W
SIZE150 x 85mm
ADR46/00 E9-HR-00.1070 (ADR approved only when fitted with 55W globe)

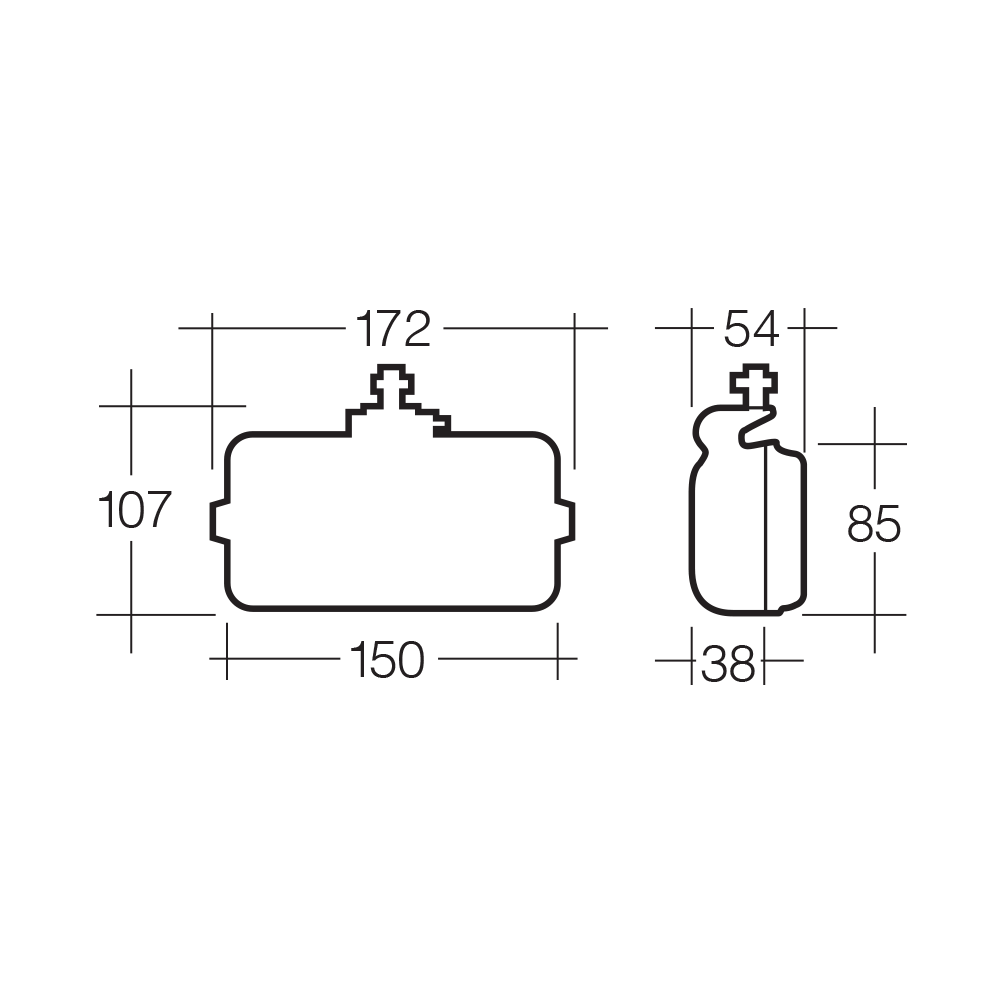

Drawings

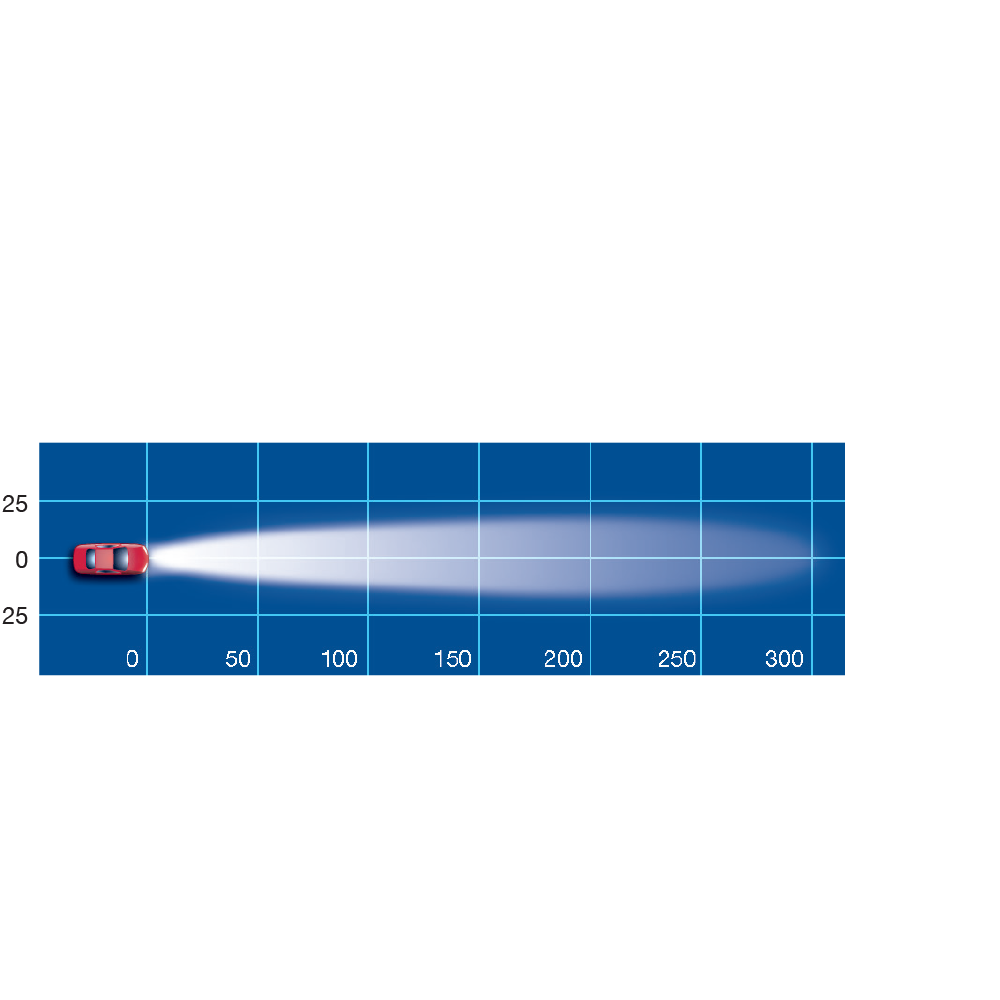

Beam Pattern

Product Comprises of

1.2 x driving lamps (P/No. 72227)
2.2 x 12V H3 100W globes (P/No. 48351)
3.1 x relay (P/No. 72386)
4.1 x toggle switch (P/No. 60044)
5.1 x terminal and wiring pack
