Ultima 215 L.E.D Driving Light
Part No. 71740
9–33 Volt High Powered LED Driving light — 16,500 Lumens. A break through in LED driving light
design and performance. Made at 215mm OD to fit the widest range of Bull Bar applications
possible whilst maintaining power and beam penetration for both 4WD but also transportation
markets where distance and light volume are vital requirements for safe driving.
*Specifications detailed for 1 lamp
*Specifications detailed for 1 lamp
9–33 Volt High Powered LED Driving light — 16,500 Lumens. A break through in LED driving light
design and performance. Made at 215mm OD to fit the widest range of Bull Bar applications
possible whilst maintaining power and beam penetration for both 4WD but also transportation
markets where distance and light volume are vital requirements for safe driving.
*Specifications detailed for 1 lamp
*Specifications detailed for 1 lamp
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | 13.8A at 12V* |
| POWER | 165W* |
| LEDs | 33x 5W Cree® XP-G2 LEDs* |
| LUMENS | 16,500 Raw / 10,175 Effective* |
| IP RATING | IP66 & IP67 |
| OPERATING TEMPERATURE | -10°C to 65°C |
| COLOUR TEMPERATURE | 5700°K |
| SIZE | 215mm |
| WEIGHT | 3.2kg* |
| ECE | ECE R10 |
| OTHER | Active Thermal Management System (ATMS) |
| OTHER | 1 LUX at 900m (two lamps) |
| COMPRISES | 1x Hybrid Beam LED Driving Light; 1x Hard Coated Polycarbonate Lens Protector; 1x Stainless Steel Mounting Hardware Kit; 4x Interchangeable Trim Pieces (Blue Black Red & Yellow); 1x Cable with Pre-Wired DT Connector; 1x Fitting Instruction Booklet; |

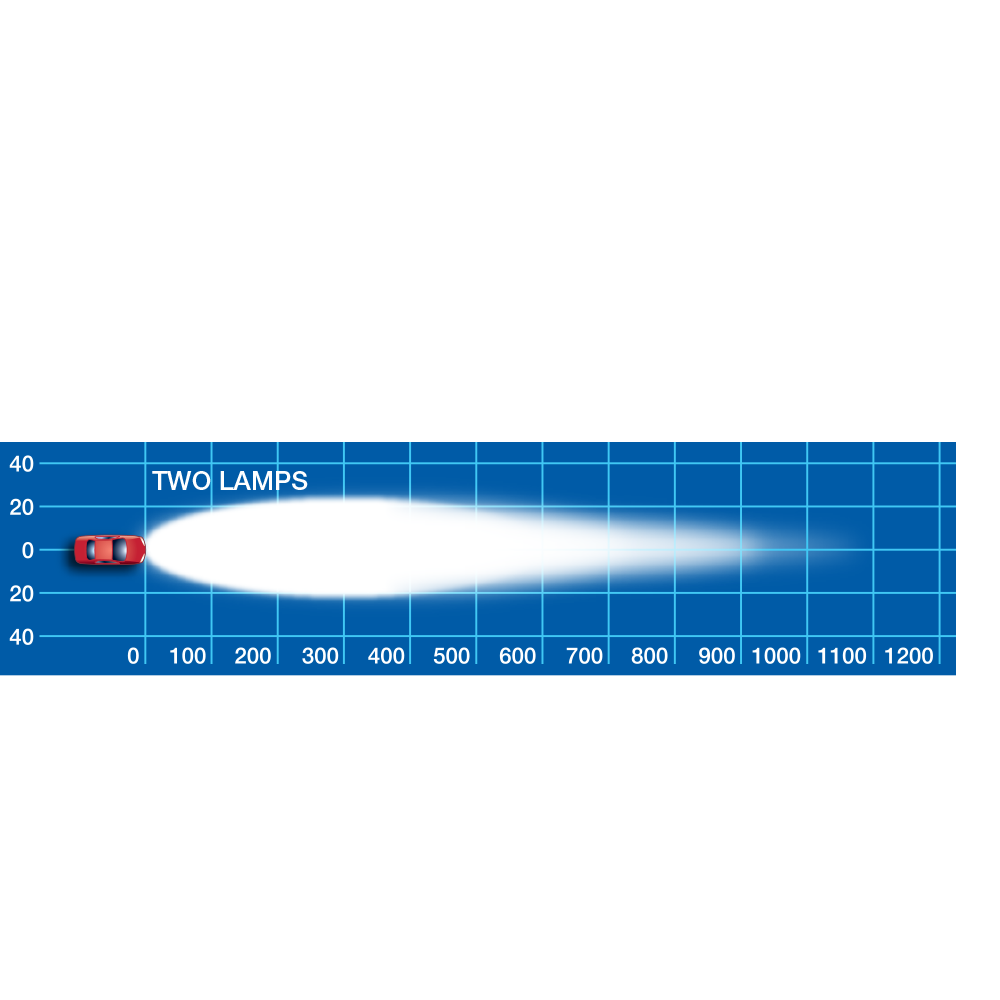

Beam Pattern

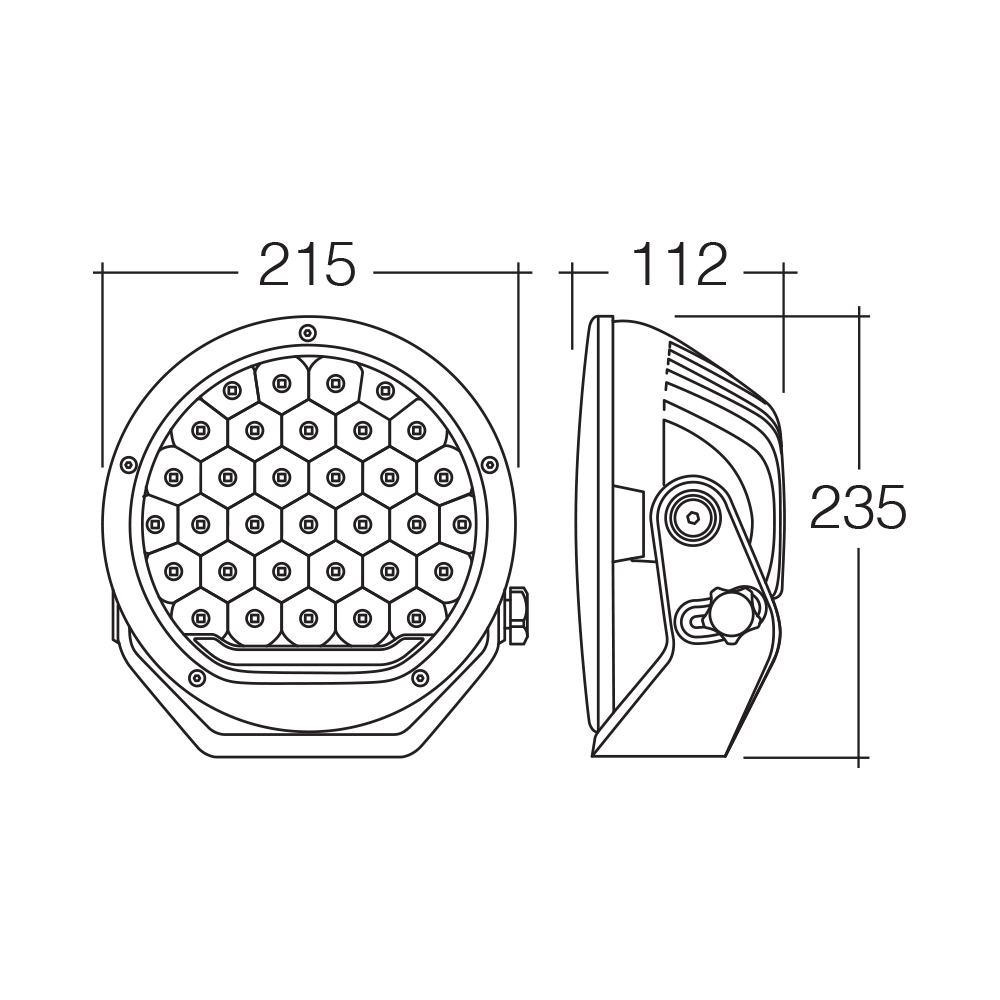

Dimensions
