Ultima 225 H.I.D 12V Combination Driving Lamp Kit
Ultima 225 H.I.D 12V Combination Driving Lamp Kit
Part No.
71700HID
12V 50W with L.E.D Position Light 225mm diameter Boasting a proven and extremely
powerful 50 Watt Gen 5 Ballast and D1S Xenon globe combination these lamps deliver
a brilliant white light output of 4150K and a super-fast full illumination start
up. All H.I.D lamps have been upgraded to now include an L.E.D Position Light enhancing
visibility and improving daytime safety for oncoming traffic.
Share this page
Internally mounted Gen 5 ballast and D1S globes
50W - Even more power and greater performance. 4150°K - Outstandingly brilliant
white light
Technical Information
| INPUT VOLTAGE RANGE | 12V |
|---|---|
| POWER | 50W |
| SIZE | 225mm |
Drawings

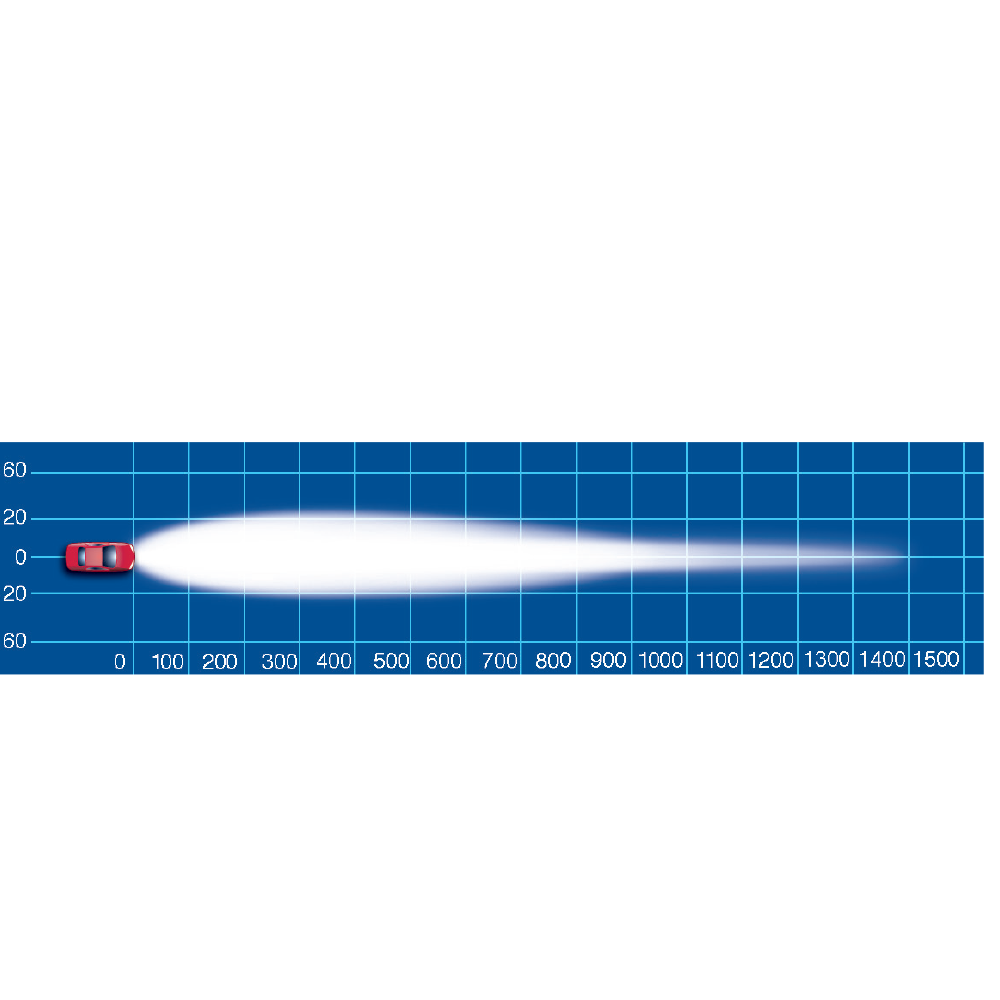

Beam Pattern
Product Comprises of
| 1. | 1 x broad beam 12V driving lamp with fitted globe ballast and pre-wired weatherproof connector (P/No. 71668HID) |
|---|---|
| 2. | 1 x pencil beam 12V driving lamp with fitted globe ballast and pre-wired weatherproof connector (P/No. 71678HID) |
| 3. | 2 x see through lens protectors (P/No. 72211BL) |
| 4. | 2 x fitted 12/24V D1S 4150oK H.I.D globes (P/No. 49304) |
| 5. | 2 x internally mounted 12V Gen 5 50W ballasts (P/No. 74192) |
| 6. | 1 x ‘Plug & Play’ wiring harness (P/No. 74402) |
| 7. | 2 x mounting spacers |
