Battery Master Switch Lever Type with Indexing Post

Part No. 61074
Indexing post helps align switch and prevent rotation. Mounting opening 19mm dia. 1000A at 12V for 20 seconds 500A at 24V for 20 seconds 180A at 12V continuous load max. 90A at 24V continuous load max.
Indexing post helps align switch and prevent rotation. Mounting opening 19mm dia. 1000A at 12V for 20 seconds 500A at 24V for 20 seconds 180A at 12V continuous load max. 90A at 24V continuous load max.

Specifications

Technical Information
CURRENT DRAW1000A at 12V for 20 seconds. 500A at 24V for 20 seconds. 180A at 12V continuous load max. 90A at 24V continuous load max.
LEDs121

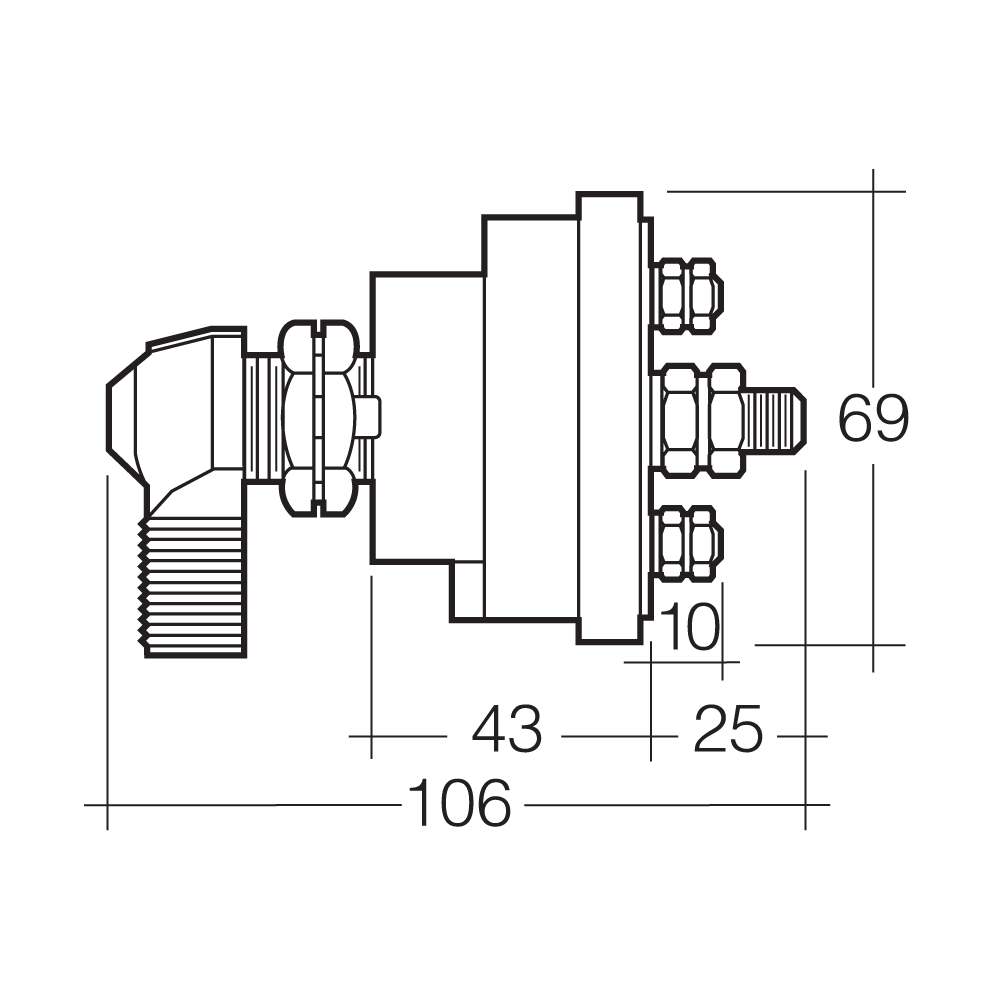

Dimensions
